BAC718/900
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: BAC718/900
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (B): 900 mm 35.4331 in
Outer (D): 1090 mm 42.9134 in
Width (W): 85 mm 3.3465 in
Weight: 172 kg 379 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 804 KN 180800 lbs
Static Capacity (Co) : 2300 KN 517100 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Ball Bearings Guide
Product Description

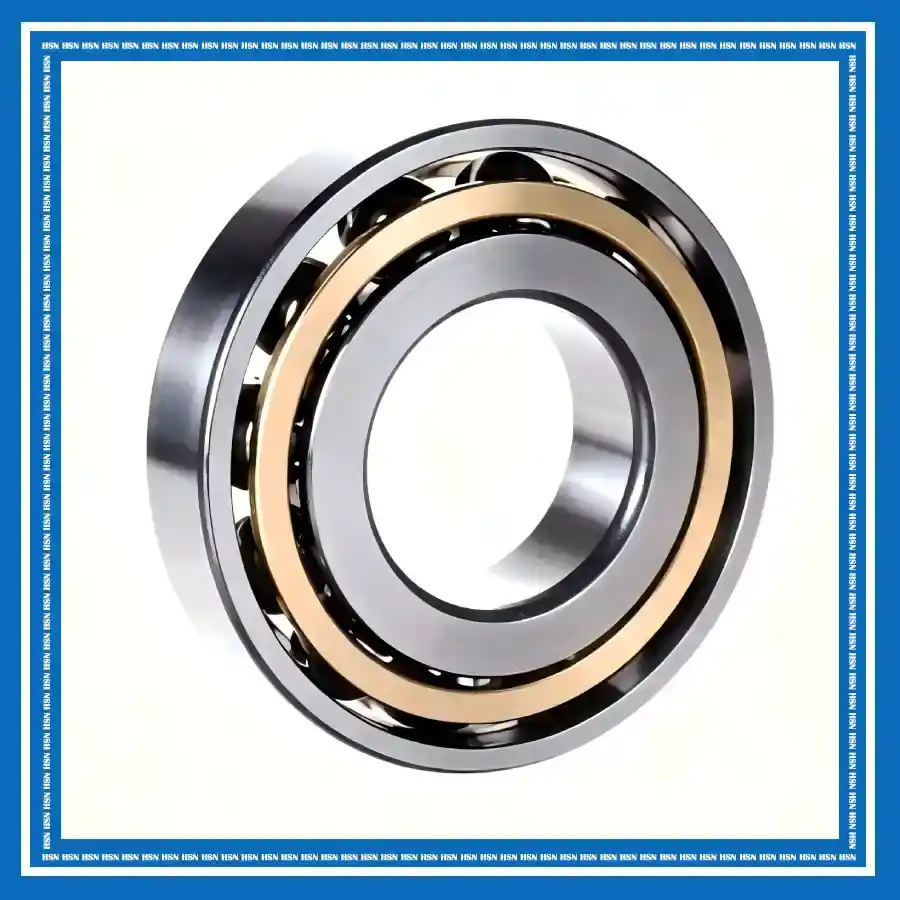

The American Roller Bearing BAC718/900 angular contact ball bearing consists of inner and outer rings, precision steel balls, and a cage that provides reliable ball guidance and spacing. Its angular contact raceway design provides high rigidity and allows the bearing to support combined radial and axial loads while maintaining stable operation under demanding conditions. The precision internal geometry helps ensure smooth rotation and reliable load distribution. It is suitable for machine tools, industrial gearboxes, pumps, compressors, heavy-duty drives, and other industrial equipment requiring reliable combined load support.
