N1096
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: N1096
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 480 mm 18.8976 in
Outer Diameter (D): 700 mm 27.5591 in
Width (W): 100 mm 3.9370 in
Weight: 130 kg 286.6 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1680 KN 377700 lbs
Static Capacity (Co) : 3000 KN 674400 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

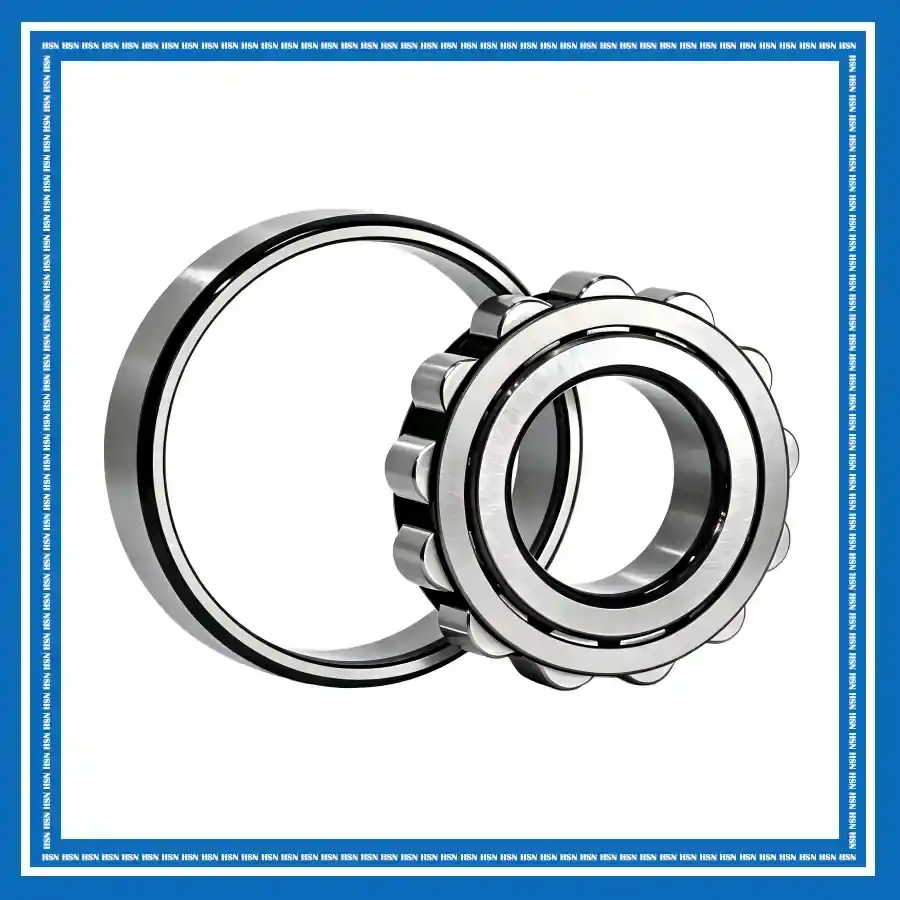

The American Roller Bearing N1096 cylindrical roller bearing consists of a double-ribbed inner ring, a ribless outer ring, cylindrical rollers, and a cage. Its line-contact roller design provides high radial load capacity and rigidity, while allowing axial displacement between the inner and outer rings to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other industrial machinery requiring reliable radial support and axial displacement capability.
