N18/600E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: N18/600E
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 600 mm 23.6220 in
Outer Diameter (D): 730 mm 28.7402 in
Width (W): 60 mm 2.3622 in
Weight: 50.5 kg 112 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 900 KN 202400 lbs
Static Capacity (Co) : 2040 KN 458700 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

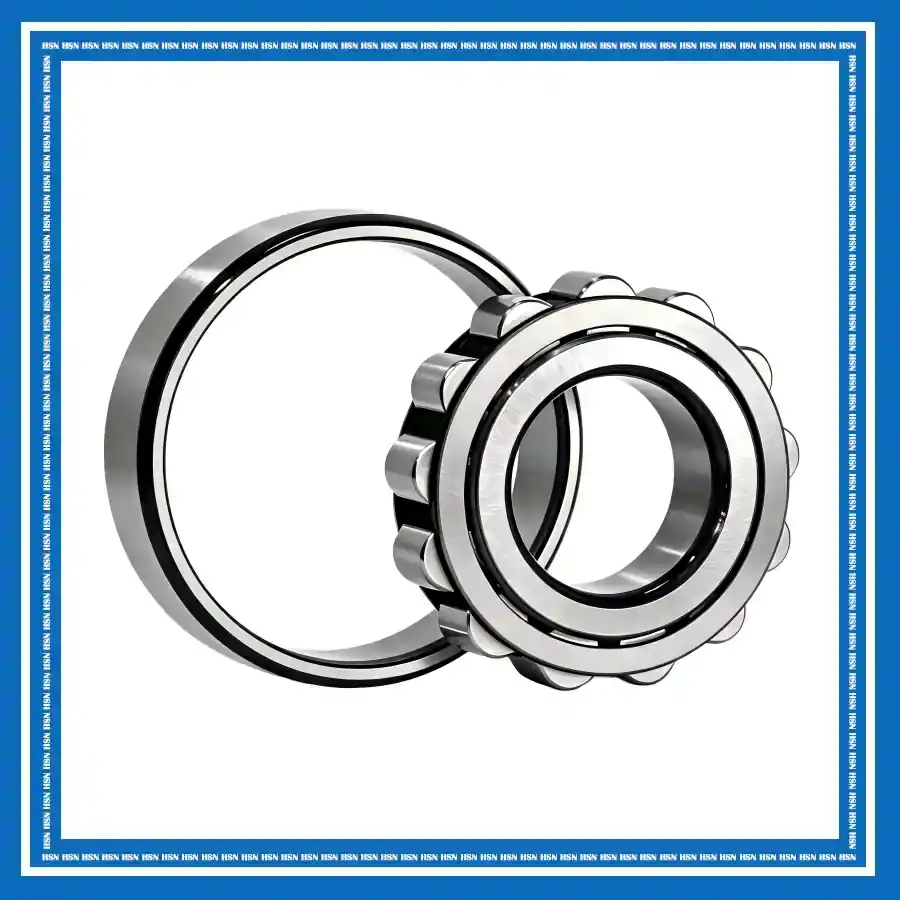

The American Roller Bearing N18/600E cylindrical roller bearing consists of a double-ribbed inner ring, a ribless outer ring, cylindrical rollers, and a cage. Its optimized internal design provides high radial load capacity and rigidity, while allowing axial displacement between the inner and outer rings to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other heavy-duty machinery requiring high radial load capacity and axial displacement capability.
