N1892
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: N1892
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 460 mm 18.1102 in
Outer Diameter (D): 580 mm 22.8346 in
Width (W): 56 mm 2.2047 in
Weight: 40 kg 88 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 825 KN 185500 lbs
Static Capacity (Co) : 1700 KN 382200 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

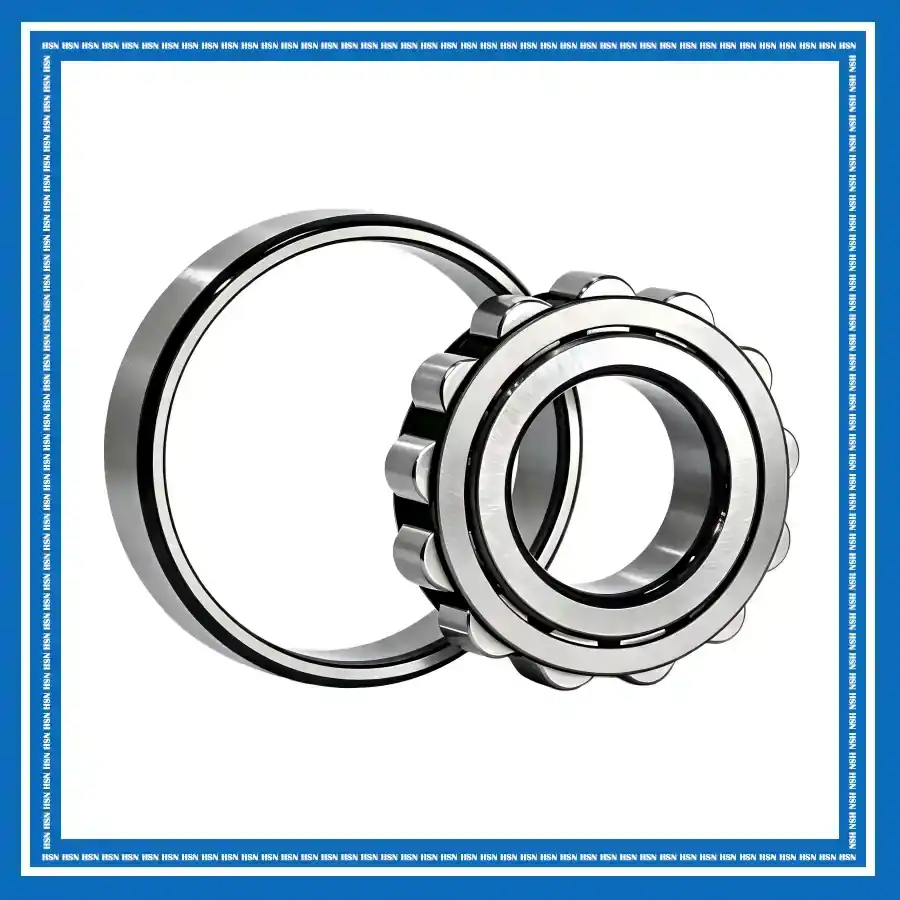

The American Roller Bearing N1892 cylindrical roller bearing consists of a double-ribbed inner ring, a ribless outer ring, cylindrical rollers, and a cage. Its line-contact roller design provides high radial load capacity and rigidity, while allowing axial displacement between the inner and outer rings to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other industrial machinery requiring reliable radial support and axial displacement capability.
