N2072E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: N2072E
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 360 mm 14.1732 in
Outer Diameter (D): 540 mm 21.2598 in
Width (W): 106 mm 4.1732 in
Weight: 89 kg 196 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1940 KN 436100 lbs
Static Capacity (Co) : 3600 KN 809300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

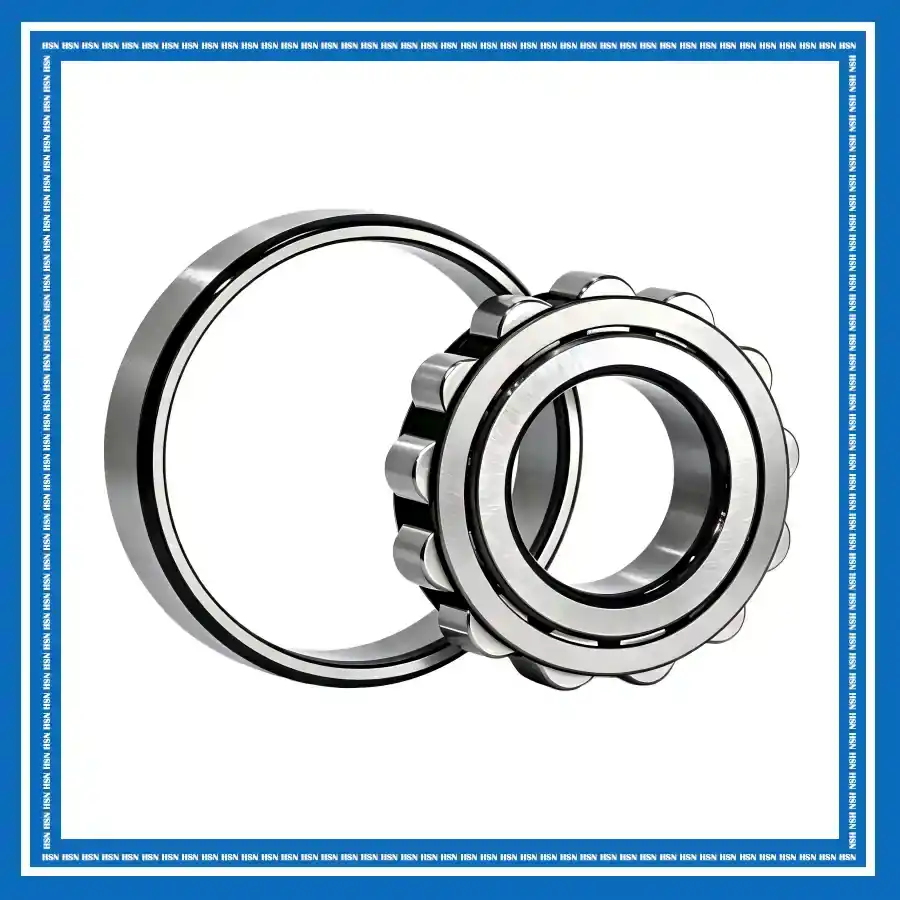

The American Roller Bearing N2072E cylindrical roller bearing consists of a double-ribbed inner ring, a ribless outer ring, cylindrical rollers, and a cage. Its optimized internal design provides high radial load capacity and rigidity, while allowing axial displacement between the inner and outer rings to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other heavy-duty machinery requiring high radial load capacity and axial displacement capability.
