N364
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: N364
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 320 mm 12.5984 in
Outer Diameter (D): 670 mm 26.3780 in
Width (W): 112 mm 4.4094 in
Weight: 203 kg 447.5 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 2315 KN 520400 lbs
Static Capacity (Co) : 3390 KN 762100 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

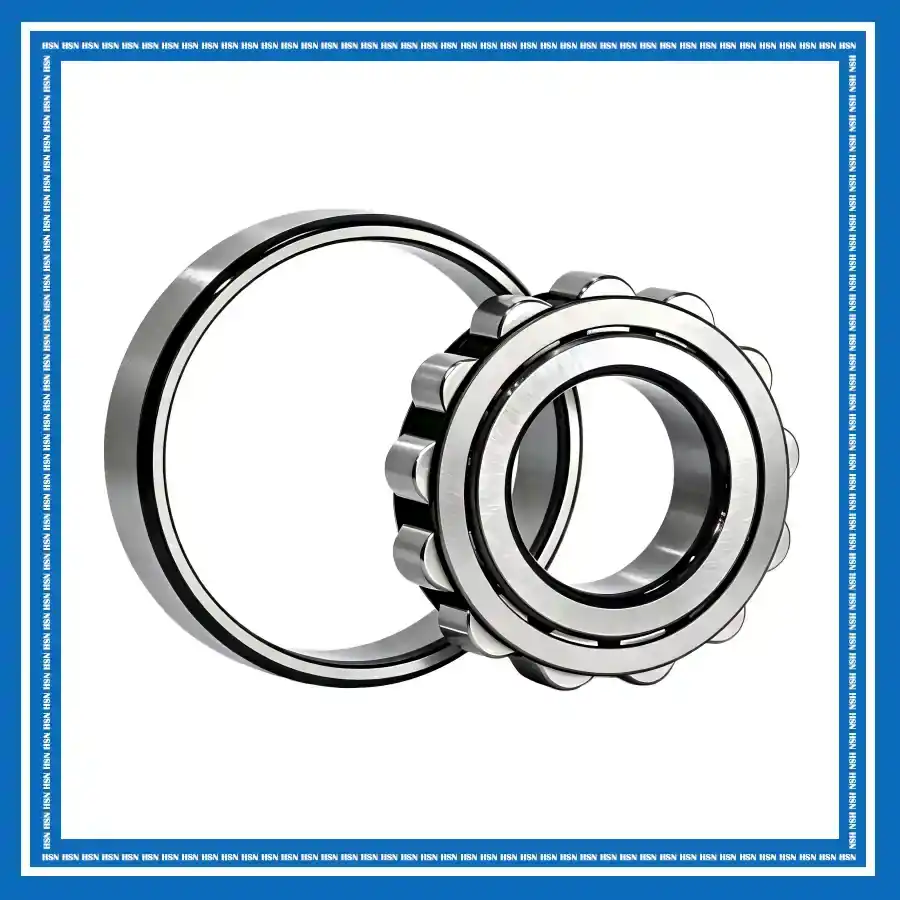

The American Roller Bearing N364 cylindrical roller bearing consists of a double-ribbed inner ring, a ribless outer ring, cylindrical rollers, and a cage. Its line-contact roller design provides high radial load capacity and rigidity, while allowing axial displacement between the inner and outer rings to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other industrial machinery requiring reliable radial support and axial displacement capability.
