NJ29/500
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NJ29/500
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 500 mm 19.6850 in
Outer Diameter (D): 670 mm 26.3780 in
Width (W): 100 mm 3.9370 in
Weight: 104 kg 229.3 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1795 KN 403500 lbs
Static Capacity (Co) : 3975 KN 893600 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

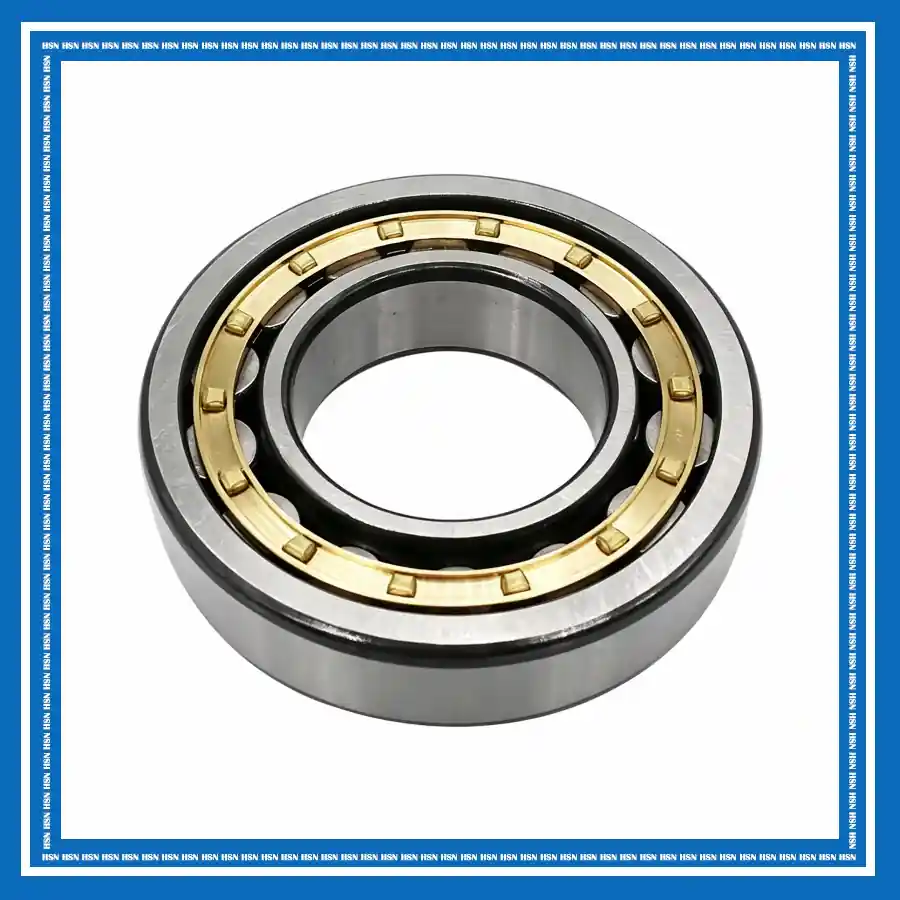

The American Roller Bearing NJ29/500 cylindrical roller bearing consists of a double-ribbed outer ring, a single-ribbed inner ring, cylindrical rollers, and a cage. Its line-contact roller design provides high radial load capacity and rigidity, while the rib arrangement enables axial location and supports axial loads in one direction. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other heavy-duty machinery requiring reliable radial support and axial location.
