NJ30/560
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NJ30/560
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 560 mm 22.0472 in
Outer Diameter (D): 820 mm 32.2835 in
Width (W): 195 mm 7.6772 in
Weight: 371 kg 817 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 4905 KN 1102700 lbs
Static Capacity (Co) : 11230 KN 2524700 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

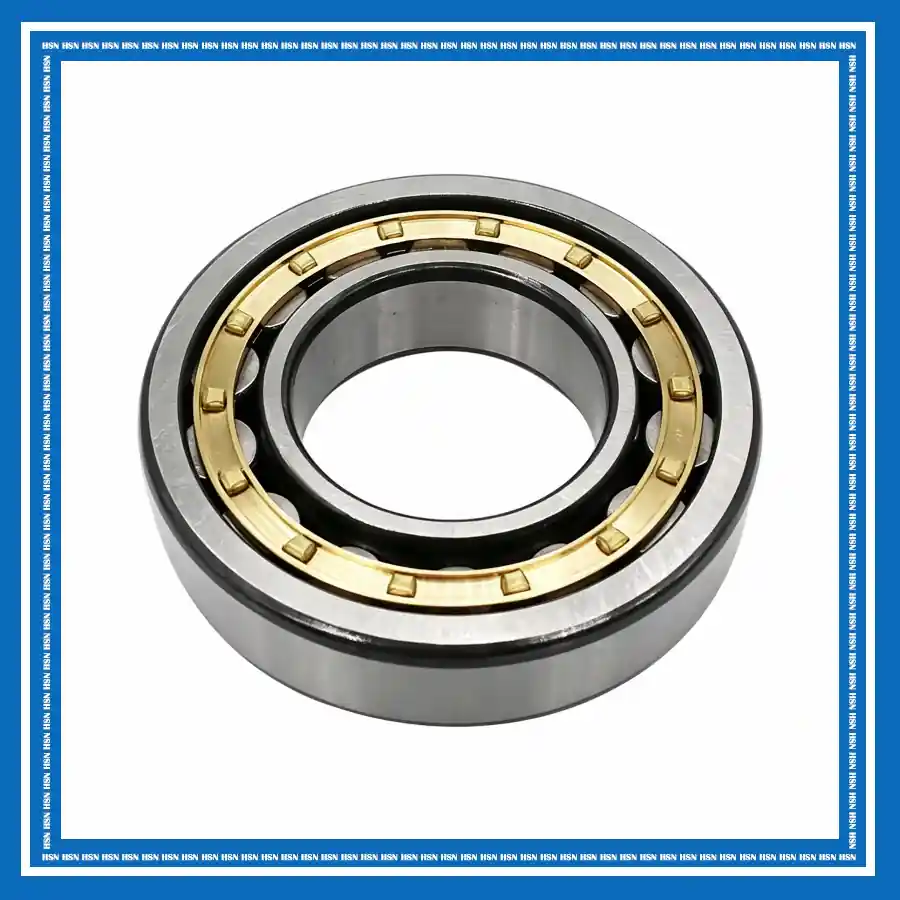

The American Roller Bearing NJ30/560 cylindrical roller bearing consists of a double-ribbed outer ring, a single-ribbed inner ring, cylindrical rollers, and a cage. Its line-contact roller design provides high radial load capacity and rigidity, while the rib arrangement enables axial location and supports axial loads in one direction. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other heavy-duty machinery requiring reliable radial support and axial location.
