NJ30/600E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NJ30/600E
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 600 mm 23.6220 in
Outer Diameter (D): 870 mm 34.2520 in
Width (W): 200 mm 7.8740 in
Weight: 415 kg 915 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 5390 KN 1211800 lbs
Static Capacity (Co) : 11000 KN 2473000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

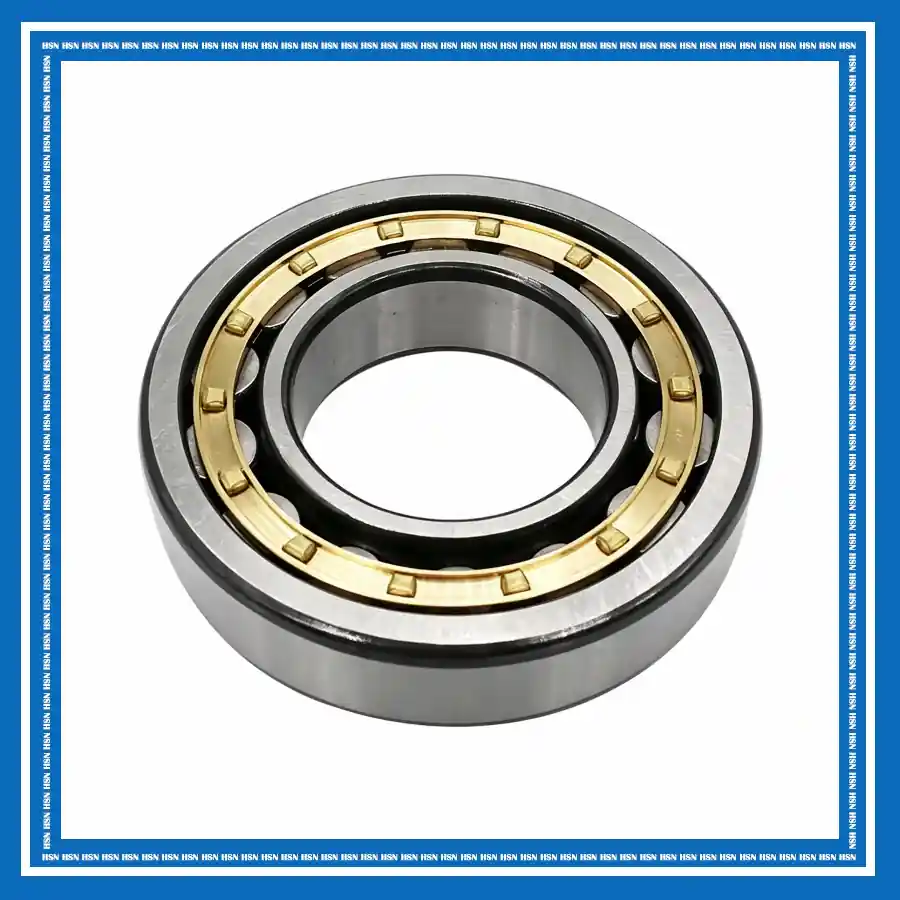

The American Roller Bearing NJ30/600E cylindrical roller bearing consists of a double-ribbed outer ring, a single-ribbed inner ring, cylindrical rollers, and a cage. Its optimized internal design provides high radial load capacity and rigidity, while the rib arrangement enables axial location and supports axial loads in one direction. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other heavy-duty machinery requiring reliable radial support and axial location.
