NN4956
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NN4956
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 280 mm 11.0236 in
Outer Diameter (D): 380 mm 14.9606 in
Width (W): 100 mm 3.9370 in
Weight: 33.5 kg 74 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 765 KN 172000 lbs
Static Capacity (Co) : 1800 KN 404700 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

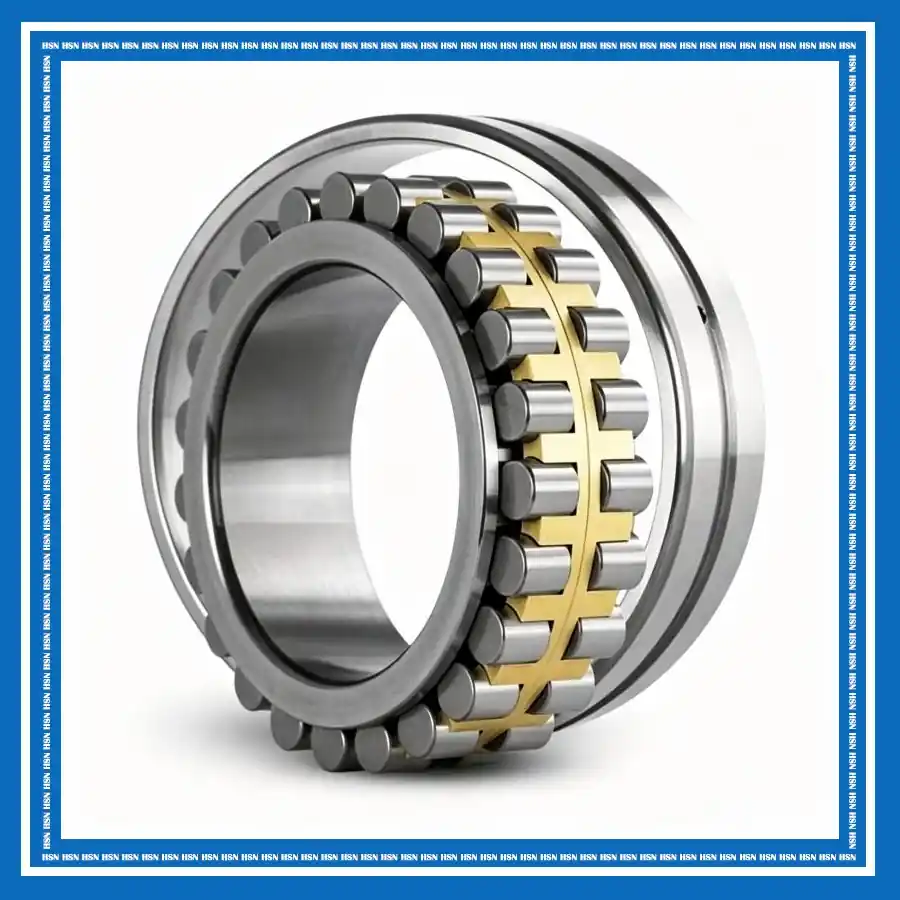

The American Roller Bearing NN4956 double-row cylindrical roller bearing consists of an inner ring, a separable outer ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row roller arrangement provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable outer ring facilitates mounting and maintenance, while the robust cage and roller arrangement provide smooth and stable performance under demanding loads. It is suitable for lathes, machine tools, industrial gearboxes, pinion stands, rolling mill equipment, and other heavy-duty rotating machinery requiring high radial load capacity, rigidity, and reliable shaft support.
