NNU40/710
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNU40/710
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 710 mm 27.9528 in
Outer Diameter (D): 1030 mm 40.5512 in
Width (W): 315 mm 12.4016 in
Weight: 850 kg 1874 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 9350 KN 2102000 lbs
Static Capacity (Co) : 21600 KN 4855900 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

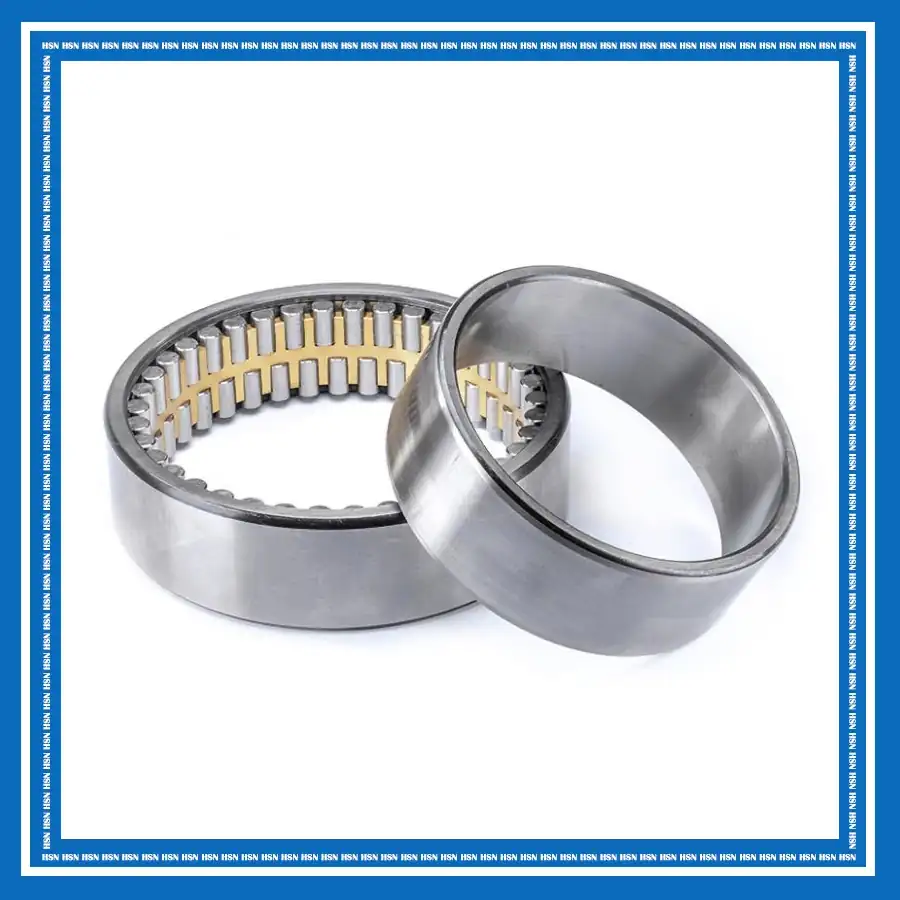

The American Roller Bearing NNU40/710 double-row cylindrical roller bearing consists of an outer ring, a separable inner ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row design provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance, while the robust cage and roller arrangement ensure stable performance under demanding loads. It is suitable for machine tool spindles, industrial gearboxes, pinion stands, rolling mill equipment, printing machinery, and other heavy-duty rotating equipment requiring high radial load capacity, rigidity, and reliable shaft support.
