NU31/500EMA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NU31/500EMA
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 500.000 mm 19.6850 in
Outer (D): 830.000 mm 32.6772 in
Width (B): 264.000 mm 10.3937 in
DUR/DOR (F/E): 576.000 mm 22.6772 in
Weight: 585.00 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 7490 KN
Static Radial Load Rating (C0): 12000 KN
Thermal Reference Speed – Oil: 310 RPM
Thermal Reference Speed – Grease: 290 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

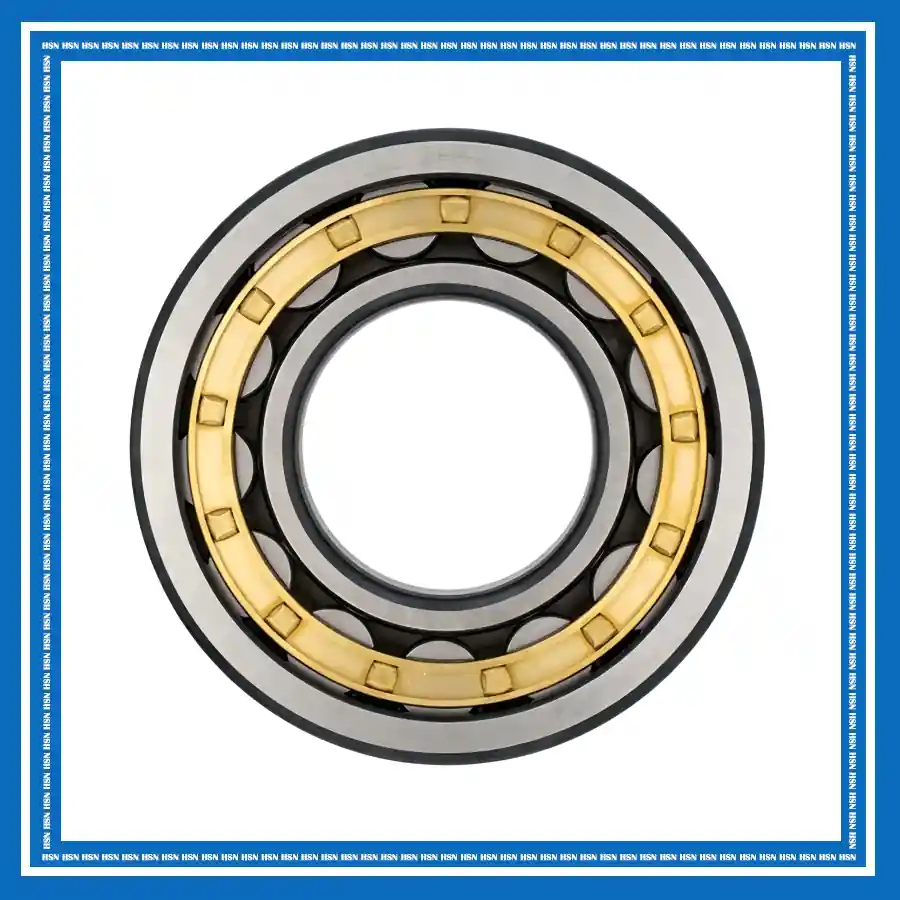

The NU31/500EMA Timken single row cylindrical roller bearing consists of an inner ring, an outer ring, a single row of cylindrical rollers, and a cage. The cylindrical roller design provides a large contact area between rollers and raceways, delivering high radial load capacity, excellent rigidity, and reliable performance under heavy radial loads. The separable inner and outer ring design allows convenient installation, inspection, and maintenance, while the optimized roller guidance system helps ensure stable operation at high speeds and demanding working conditions.
The NU31/500EMA bearing is widely used in power generation equipment, gear drives, pumps, rolling mills, wind energy systems, and other industrial equipment. It is particularly suitable for applications requiring high radial load capacity, high-speed operation, precise positioning, and long service life under continuous industrial operation.
