American Roller Bearings: Types, Series and Model Data

Find the original bearing family and complete model designation before requesting a replacement. HSN reviews the original dimensions, construction and operating conditions to assess a stock or custom alternative.

Submit a Bearing Part Number Explore Bearing Types

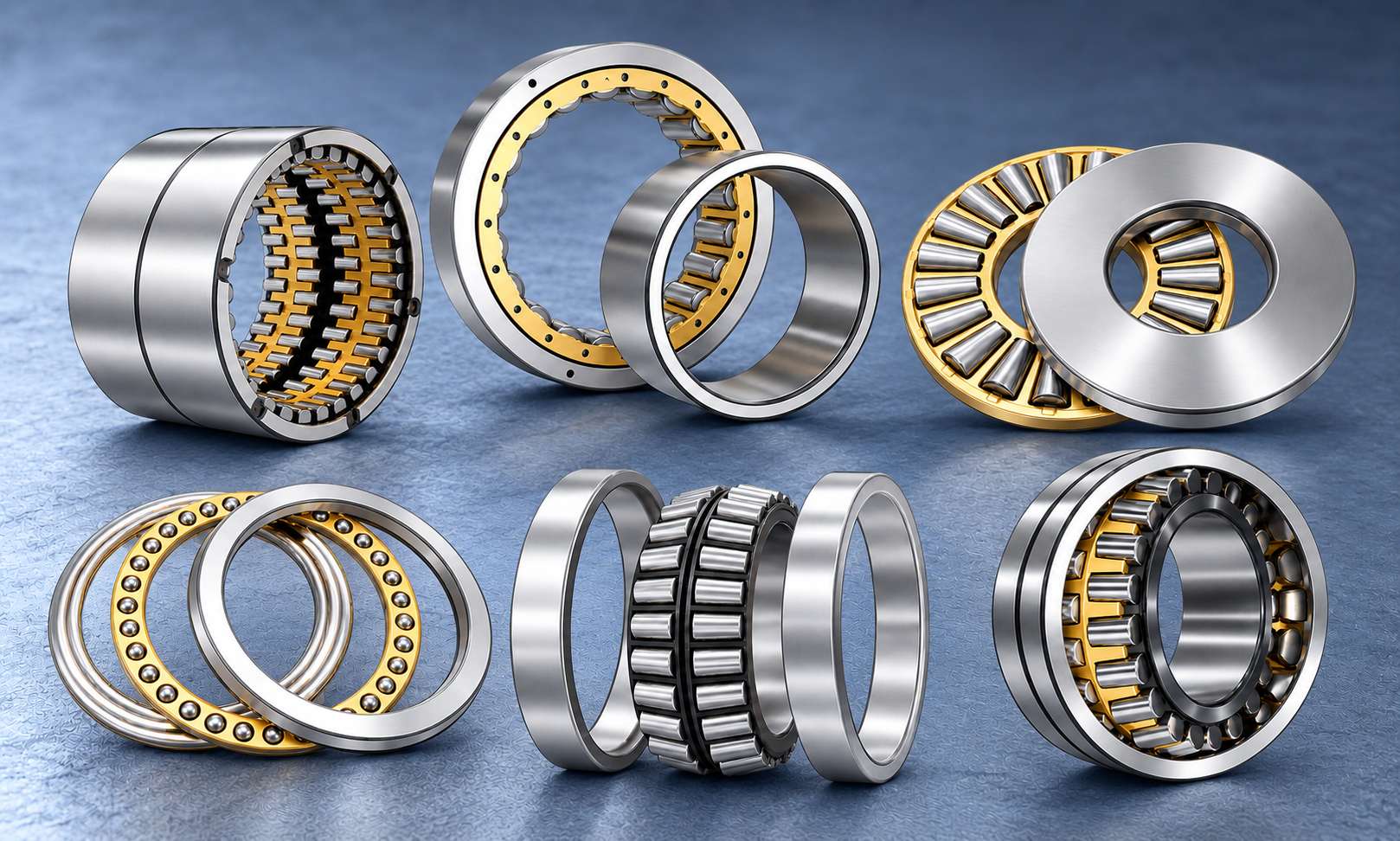

Illustrative image of American Roller Bearings bearing families

01 · PRODUCT FAMILIES

Which American Roller Bearing Type Do You Have?

The supplied catalog covers heavy-duty bearings for industrial equipment. The six groups below reflect its product line guide, with models and specifications reviewed individually.

01 / BALL

Ball Bearings

Deep groove and angular contact designs, including double-row configurations.

DGB BAC · BAC-D

02 / RADIAL ROLLER

Cylindrical Roller

Single-row, double-row and full-complement arrangements. Confirm the locating structure and internal clearance.

NU · NCF · NNU AD · CD · ECS

03 / RADIAL & AXIAL

Tapered Roller

Single, double and four-row designs with different cup, cone, spacer and end-play arrangements.

TS · TDI · TDO TQO · TQITS

04 / SELF-ALIGNING

Spherical Roller

Series vary in cross section and internal design; confirm bore form, clearance, cage and application.

22200 · 22300 23000 · 24000

05 / AXIAL LOAD

Thrust Bearings

Cylindrical and tapered thrust designs include crane-hook positions and other specialized arrangements.

WTPC · TPC ATP · VFT · TTP

06 / ENGINEERED

Special Bearings

Application-specific materials, features, configurations or tolerances require a drawing and duty review.

Drawing review

The product-family and series examples reflect the supplied American Roller Bearing catalog. This page is a purchasing guide, not an availability or interchange list.

02 · DESIGNATION GUIDE

Series, Structures and Suffixes to Confirm

The same nominal envelope can be offered with different internal designs. Keep the complete marking and confirm the features that affect mounting and operation.

Ball: DGB / BAC / BAC-D

DGB61940 · BAC series · BAC-D series

DGB identifies deep groove examples in the catalog. BAC angular-contact bearings can require a specified contact angle, flush grind or preload arrangement. Do not infer those details from the base series alone.

Cylindrical: locating and clearance

NU2234EMC3 · NNU4184MC3

NU, N, NJ, NUP and other structures differ in axial location and ring arrangement. Check the “F” dimension, cage, lubrication and clearance suffix where applicable.

Tapered: row count and end play

TS · TDI · TDO · TQO · TQITS

Double- and four-row arrangements may use spacers and specified bench end play. Confirm the full suffix, rollneck features, fits and axial setting before comparison.

Spherical and thrust

22200–24100 · WTPC · TPC · ATP · VFT

Review the full spherical roller series and suffix. For thrust designs, confirm plate geometry, loading direction, hook or shaft dimensions and mounting clearance.

Do not compare model numbers in isolation

A catalog series narrows the search. It does not establish that another bearing will fit or meet the required life, speed or operating conditions. HSN proposes a specification for customer confirmation after review.

03 · ORIGINAL CATALOG DATA

Representative American Roller Bearing Models

This selection illustrates model and dimension fields from the supplied catalog. The values are original-brand reference data, not specifications for an HSN alternative or a complete model database.

Bearing number

Type

Bore / ID

Width / height

Weight

Bearing number	Type	Bore / ID (mm)	OD (mm)	Width / height (mm)	Weight(kg)
BAC71940	Angular contact	200	280	38	7
BAC7040	Angular contact	200	310	51	13.5
BAC7240	Angular contact	200	360	58	26.5
BAC7340	Angular contact	200	420	80	53
BAC71944	Angular contact	220	300	38	7.5
BAC7044	Angular contact	220	340	56	18
BAC7244	Angular contact	220	400	65	37
BAC7344	Angular contact	220	460	88	70
BAC71948	Angular contact	240	320	38	8
BAC7048	Angular contact	240	360	56	19
BAC7248	Angular contact	240	440	72	50
BAC7348	Angular contact	240	500	95	89
BAC71852	Angular contact	260	320	28	5
BAC71952	Angular contact	260	360	46	13.5
BAC7252	Angular contact	260	480	80	66
BAC71856	Angular contact	280	350	33	7.5
BAC71956	Angular contact	280	380	46	15
BAC7056	Angular contact	280	420	65	30
BAC7256	Angular contact	280	500	80	70
BAC7356	Angular contact	280	580	108	135
BAC71860	Angular contact	300	380	38	9.5
BAC71960	Angular contact	300	420	56	24
BAC7060	Angular contact	300	460	74	43
BAC7260	Angular contact	300	540	85	87
BAC7360	Angular contact	300	620	109	154
BAC71864	Angular contact	320	400	38	10
BAC71964	Angular contact	320	440	56	26
BAC7064	Angular contact	320	480	74	45
BAC7264	Angular contact	320	580	92	110
BAC7364	Angular contact	320	670	112	184
BAC71868	Angular contact	340	420	38	10.5
BAC71968	Angular contact	340	460	56	27
BAC7068	Angular contact	340	520	82	62
BAC71872	Angular contact	360	440	38	12
BAC71972	Angular contact	360	480	56	29
BAC7072	Angular contact	360	540	82	63
BAC71876	Angular contact	380	480	46	18
BAC71976	Angular contact	380	520	65	42
BAC7076	Angular contact	380	560	82	66
BAC71880	Angular contact	400	500	46	19
BAC71980	Angular contact	400	540	65	43
BAC7080	Angular contact	400	600	90	85
BAC71884	Angular contact	420	520	46	20
BAC71984	Angular contact	420	560	65	45
BAC7084	Angular contact	420	620	90	89
BAC71888	Angular contact	440	540	46	21
BAC71988	Angular contact	440	600	74	62
BAC7088	Angular contact	440	650	94	100
BAC71892	Angular contact	460	580	56	35
BAC71992	Angular contact	460	620	74	58
BAC7092	Angular contact	460	680	100	120
BAC71896	Angular contact	480	600	56	36
BAC71996	Angular contact	480	650	78	76
BAC7096	Angular contact	480	700	100	125
BAC718/500	Angular contact	500	620	56	38
BAC719/500	Angular contact	500	670	78	80
BAC70/500	Angular contact	500	720	100	130
BAC718/530	Angular contact	530	650	56	40
BAC719/530	Angular contact	530	710	82	92
BAC70/530	Angular contact	530	780	112	180
BAC718/560	Angular contact	560	680	56	42
BAC719/560	Angular contact	560	750	85	106
BAC70/560	Angular contact	560	820	115	195
BAC718/600	Angular contact	600	730	60	47
BAC719/600	Angular contact	600	800	90	126
BAC70/600	Angular contact	600	870	118	235
BAC718/630	Angular contact	630	780	69	73
BAC719/630	Angular contact	630	850	100	172
BAC70/630	Angular contact	630	920	128	279
BAC718/670	Angular contact	670	820	69	80
BAC719/670	Angular contact	670	900	103	197
BAC70/670	Angular contact	670	980	136	340
BAC718/710	Angular contact	710	870	74	94
BAC719/710	Angular contact	710	950	106	198
BAC70/710	Angular contact	710	1030	140	370
BAC718/750	Angular contact	750	920	78	104
BAC719/750	Angular contact	750	1000	112	253
BAC70/750	Angular contact	750	1090	150	447
BAC718/800	Angular contact	800	980	82	133
BAC719/800	Angular contact	800	1060	115	295
BAC70/800	Angular contact	800	1150	155	500
BAC718/850	Angular contact	850	1030	82	142
BAC718/900	Angular contact	900	1090	85	172
BAC718/950	Angular contact	950	1150	90	191
BAC718/1000	Angular contact	1000	1220	100	245
BAC5522D	Angular contact	150	225	73	10
BAC5521D	Angular contact	150	230	70	10
BAC4513D	Angular contact	150	240	84	16
BAC4683D	Angular contact	160	215	50	6
BAC5616D	Angular contact	160	239.5	76	11
BAC4676D	Angular contact	160	240	76	11
BAC4684D	Angular contact	170	260	84	15
BAC5620D	Angular contact	175	280	92	21
BAC5764D	Angular contact	180	250	66	10
BAC5766D	Angular contact	180	250	70	10
BAC5724D	Angular contact	180	259.5	66	11
BAC5768D	Angular contact	180	280	92	21
BAC5725D	Angular contact	190	255	58	9
BAC5722D	Angular contact	190	269.5	66	11
BAC5770D	Angular contact	190	280	96	19
BAC5771D	Angular contact	190	290	92	22
BAC5740D	Angular contact	200	279.5	76	14
BAC5774D	Angular contact	200	280	76	13
BAC5775D	Angular contact	200	280	80	16
BAC5707D	Angular contact	200	289.5	76	16
BAC5778D	Angular contact	200	310	96	27
BAC5815D	Angular contact	220	300	70	15
BAC5818D	Angular contact	220	309.5	76	17
BAC5929D	Angular contact	230	329.5	80	21
BAC5965D	Angular contact	230	329.5	80	24
BAC5943D	Angular contact	250	340	70	19
BAC41044D	Angular contact	260	369.5	92	30
BAC41059D	Angular contact	260	400	130	62
BAC41151D	Angular contact	280	389.5	92	32
DGB61940	Deep groove ball	200	280	38	2.7
DGB6040	Deep groove ball	200	310	51	14
DGB6240	Deep groove ball	200	360	58	28
DGB6340	Deep groove ball	200	420	80	56
DGB61944	Deep groove ball	220	300	38	8
DGB6044	Deep groove ball	220	340	56	18.5
DGB6244	Deep groove ball	220	400	65	37
DGB6344	Deep groove ball	220	460	88	72.5
DGB61948	Deep groove ball	240	320	38	8.5
DGB6048	Deep groove ball	240	360	56	19.5
DGB6248	Deep groove ball	240	440	72	51
DGB6348	Deep groove ball	240	500	95	92.5
DGB61952	Deep groove ball	260	360	46	14.5
DGB6052	Deep groove ball	260	400	65	29.5
DGB6252	Deep groove ball	260	480	80	65.5
DGB6352	Deep groove ball	260	540	102	115
DGB61956	Deep groove ball	280	380	46	15
DGB6056	Deep groove ball	280	420	65	31
DGB6256	Deep groove ball	280	500	80	71
DGB6356	Deep groove ball	280	580	108	140
DGB61860	Deep groove ball	300	380	38	10.5
DGB61960	Deep groove ball	300	420	56	24
DGB6060	Deep groove ball	300	460	74	44
DGB6260	Deep groove ball	300	540	85	88.5
DGB6360	Deep groove ball	300	620	109	165
DGB61864	Deep groove ball	320	400	38	11
DGB61964	Deep groove ball	320	440	56	25.5
DGB6064	Deep groove ball	320	480	74	46
DGB6264	Deep groove ball	320	580	92	110
DGB6364	Deep groove ball	320	670	112	206
DGB61868	Deep groove ball	340	420	38	11.5
DGB61968	Deep groove ball	340	460	56	26.5
DGB6068	Deep groove ball	340	520	82	62
DGB61872	Deep groove ball	360	440	38	12
DGB61972	Deep groove ball	360	480	56	28
DGB6072	Deep groove ball	360	540	82	64.5
DGB61876	Deep groove ball	380	480	46	20
DGB61976	Deep groove ball	380	520	65	40
DGB6076	Deep groove ball	380	560	82	67.5
DGB61880	Deep groove ball	400	500	46	20.5
DGB61980	Deep groove ball	400	540	65	41.5
DGB6080	Deep groove ball	400	600	90	87.5
DGB61884	Deep groove ball	420	520	46	21.5
DGB61984	Deep groove ball	420	560	65	43
DGB6084	Deep groove ball	420	620	90	91.5
DGB61888	Deep groove ball	440	540	46	22.5
DGB61988	Deep groove ball	440	600	74	60.5
DGB6088	Deep groove ball	440	650	94	105
DGB61892	Deep groove ball	460	580	56	35
DGB61992	Deep groove ball	460	620	74	62.5
DGB6092	Deep groove ball	460	680	100	120
DGB61896	Deep groove ball	480	600	56	36.5
DGB61996	Deep groove ball	480	650	78	74
DGB6096	Deep groove ball	480	700	100	125
DGB618/500	Deep groove ball	500	620	56	37.5
DGB619/500	Deep groove ball	500	670	78	77
DGB60/500	Deep groove ball	500	720	100	130
DGB618/530	Deep groove ball	530	650	56	39.5
DGB619/530	Deep groove ball	530	710	82	90.5
DGB60/530	Deep groove ball	530	780	112	185
DGB618/560	Deep groove ball	560	680	56	42
DGB619/560	Deep groove ball	560	750	85	105
DGB60/560	Deep groove ball	560	820	115	210
DGB618/600	Deep groove ball	600	730	60	52
DGB619/600	Deep groove ball	600	800	90	125
DGB60/600	Deep groove ball	600	870	118	230
DGB618/630	Deep groove ball	630	780	69	73
DGB619/630	Deep groove ball	630	850	100	160
DGB60/630	Deep groove ball	630	920	128	285
DGB618/670	Deep groove ball	670	820	69	77.5
DGB619/670	Deep groove ball	670	900	103	185
DGB60/670	Deep groove ball	670	980	136	345
DGB618/710	Deep groove ball	710	870	74	93.5
DGB619/710	Deep groove ball	710	950	106	220
DGB60/710	Deep groove ball	710	1030	140	375
DGB618/750	Deep groove ball	750	920	78	110
DGB619/750	Deep groove ball	750	1000	112	255
DGB60/750	Deep groove ball	750	1090	150	485
DGB618/800	Deep groove ball	800	980	82	130
DGB619/800	Deep groove ball	800	1060	115	275
DGB60/800	Deep groove ball	800	1150	155	535
DGB618/850	Deep groove ball	850	1030	82	140
DGB618/900	Deep groove ball	900	1090	85	160
DGB618/950	Deep groove ball	950	1150	90	188
DGB618/1000	Deep groove ball	1000	1220	100	245
80DGB360	Deep groove ball	203.2	330.2	44.45	16.5
80DGB362	Deep groove ball	203.2	381	69.85	40
85DGB392	Deep groove ball	215.9	355.6	50.8	22
90DGB402	Deep groove ball	228.6	368.3	50.8	23
95DGB431	Deep groove ball	241.3	384.175	50.8	25
100DGB440	Deep groove ball	254	400.05	50.8	26.5
105DGB471	Deep groove ball	266.7	422.275	57.15	33.5
110DGB480	Deep groove ball	279.4	444.5	57.15	37.5
115DGB510	Deep groove ball	292.1	387.35	47.625	17
115DGB511	Deep groove ball	292.1	457.2	60.325	41
120DGB519	Deep groove ball	304.8	406.4	50.8	20
120DGB520	Deep groove ball	304.8	469.9	66.675	46.5
125DGB550	Deep groove ball	317.5	419.1	50.8	20.5
125DGB551	Deep groove ball	317.5	482.6	66.675	48
130DGB553	Deep groove ball	330.2	444.5	57.15	27.5
130DGB554	Deep groove ball	330.2	508	69.85	56.5
135DGB580	Deep groove ball	342.9	457.2	57.15	28
135DGB581	Deep groove ball	342.9	527.05	69.85	60
140DGB588	Deep groove ball	355.6	469.9	57.15	29
140DGB589	Deep groove ball	355.6	546.1	73.025	67
145DGB610	Deep groove ball	368.3	495.3	63.5	37.4
145DGB611	Deep groove ball	368.3	558.8	76.2	72
150DGB613	Deep groove ball	381	508	63.5	38.5
150DGB614	Deep groove ball	381	571.5	76.2	74
155DGB615	Deep groove ball	393.7	520.7	63.5	39.5
155DGB640	Deep groove ball	393.7	584.2	82.55	82.5
160DGB647	Deep groove ball	406.4	546.1	69.85	49
160DGB648	Deep groove ball	406.4	603.25	82.55	86.5
165DGB660	Deep groove ball	419.1	558.8	69.85	50
170DGB661	Deep groove ball	431.8	571.5	69.85	51.5
175DGB680	Deep groove ball	444.5	596.9	76.2	64
180DGB687	Deep groove ball	457.2	609.6	76.2	65
185DGB695	Deep groove ball	469.9	622.3	76.2	66.8
190DGB696	Deep groove ball	482.6	647.7	82.55	80.5
195DGB710	Deep groove ball	495.3	660.4	82.55	82.5
200DGB717	Deep groove ball	508	673.1	82.55	84.5
205DGB725	Deep groove ball	520.7	698.5	88.9	97.5
210DGB726	Deep groove ball	533.4	711.2	88.9	100
250DGB354	Deep groove ball	635	889	101.6	199
300DGB404	Deep groove ball	762	1016	101.6	232
400DGB504	Deep groove ball	1016	1270	101.6	298
DGB5749	Deep groove ball	200	279.5	38	8
DGB5761	Deep groove ball	200	289.5	38	9
DGB5834	Deep groove ball	220	309.5	38	10
DGB5963	Deep groove ball	230	320	38	10
DGB5915	Deep groove ball	230	329.5	40	12
DGB41038	Deep groove ball	260	369.5	46	17
DGB41149	Deep groove ball	280	389.5	46	18
DGB41255	Deep groove ball	330	460	56	30
DGB41350	Deep groove ball	340	480	60	36
DGB41352	Deep groove ball	350	500	70	47
DGB42023	Deep groove ball	530	760	100	156
DGB42521	Deep groove ball	650	920	118	270
DGB42708	Deep groove ball	710	1000	140	340
DGB42707	Deep groove ball	710	1080	160	555
DGB42906	Deep groove ball	760	1080	150	420
DGB43107	Deep groove ball	800	1080	115	315
DGB43317	Deep groove ball	850	1220	165	650
DGB4797	Deep groove ball	180	259.5	33	6
DGB5747	Deep groove ball	190	269.5	33	7
DGB5748	Deep groove ball	190	280	33	8
DGB5931	Deep groove ball	240	329.5	40	11
DGB41184	Deep groove ball	290	409.5	60	27
DGB41181	Deep groove ball	300	419.5	56	24
DGB41245	Deep groove ball	320	440	56	26
DGB41312	Deep groove ball	340	479.5	60	36
DGB41351	Deep groove ball	340	489.5	65	42
DGB41402	Deep groove ball	360	550	85	72
DGB41403	Deep groove ball	380	519.5	65	42
DGB41405	Deep groove ball	380	540	74	58
DGB41406	Deep groove ball	380	550	82	65
DGB41526	Deep groove ball	400	720	130	220
DGB41649	Deep groove ball	420	559.5	65	47
DGB41650	Deep groove ball	420	580	70	58
DGB41651	Deep groove ball	420	580	72	60
DGB41652	Deep groove ball	420	580	72	55
DGB41819	Deep groove ball	480	680	90	53
DGB41907	Deep groove ball	500	689	100	105
DGB41932	Deep groove ball	500	700	100	115
DGB42011	Deep groove ball	520	719	100	118
DGB42027	Deep groove ball	530	780	112	190
DGB42210	Deep groove ball	570	799	115	187
DGB42519	Deep groove ball	640	940	128	330
DGB42619	Deep groove ball	670	850	85	116
DGB42714	Deep groove ball	710	1030	140	384
DGB42823	Deep groove ball	730	940	100	186
DGB42903	Deep groove ball	750	1016	125	315
DGB43111	Deep groove ball	800	1150	155	540
DGB43306	Deep groove ball	860	1130	120	340
DGB43701	Deep groove ball	950	1320	170	755
DGB43903	Deep groove ball	1000	1380	180	860
DGB45902	Deep groove ball	1500	1820	125	615
DGB46201	Deep groove ball	1600	1950	155	900
DGB5922	Deep groove ball	250	329.5	38	10
DGB42508	Deep groove ball	650	919	118	270
120AB700	Angular contact thrust	304.8	406.4	57.15	19
146AB660	Angular contact thrust	371.475	476.25	57.15	23
150AB701	Angular contact thrust	381	520.7	84.125	50
167AB702	Angular contact thrust	427.038	565.15	69.85	18
170AB500	Angular contact thrust	431.8	635	88.9	90
180AB605	Angular contact thrust	457.2	625.475	92.075	78
192AB607	Angular contact thrust	488.95	742.95	127	181
195AB470	Angular contact thrust	495.3	584.2	57.15	28
200AB850	Angular contact thrust	508	704.85	117.475	127
201AB615	Angular contact thrust	511.175	628.65	66.675	42
202AB620	Angular contact thrust	514.35	704.85	114.3	122
227AB302	Angular contact thrust	577.85	774.7	117.475	150
233AB303	Angular contact thrust	593.725	790.575	117.475	151
238AB304	Angular contact thrust	606.425	847.725	133.35	213
240AB715	Angular contact thrust	609.6	850.9	133.35	213
245AB716	Angular contact thrust	622.3	768.35	82.55	76
245AB612	Angular contact thrust	622.3	831.85	117.475	165
252AB505	Angular contact thrust	641.35	793.75	88.9	89
260AB635	Angular contact thrust	660.4	895.35	133.35	227
262AB502	Angular contact thrust	667.69	914.4	127	231
285AB705	Angular contact thrust	723.9	977.9	168.275	336
302AB510	Angular contact thrust	768.35	920.75	88.9	105
302AB624	Angular contact thrust	768.35	1006.475	139.7	271
309AB707	Angular contact thrust	785.813	952.5	95.25	118
310AB503	Angular contact thrust	787.4	1006.475	127	230
310AB625	Angular contact thrust	787.4	1025.525	139.7	264
317AB307	Angular contact thrust	806.45	1025.525	127	241
402AB717	Angular contact thrust	1022.35	1181.1	88.9	148
410AB718	Angular contact thrust	1041.4	1260.475	127	309
420AB721	Angular contact thrust	1066.8	1285.875	127	315
530AB719	Angular contact thrust	1346.2	1517.65	104.775	230
540AB720	Angular contact thrust	1371.6	1619.25	139.7	480
TP81224	Cylindrical roller thrust	120	170	39	3
TP89424	Cylindrical roller thrust	120	250	78	21
TP81226	Cylindrical roller thrust	130	190	45	5
TP89426	Cylindrical roller thrust	130	270	85	26
TP81228	Cylindrical roller thrust	140	200	46	5
TP89428	Cylindrical roller thrust	140	280	85	28
TP81230	Cylindrical roller thrust	150	215	50	7
TP89330	Cylindrical roller thrust	150	250	60	13
TP89430	Cylindrical roller thrust	150	300	90	34
TP81232	Cylindrical roller thrust	160	225	51	6
TP89332	Cylindrical roller thrust	160	270	67	18
TP89432	Cylindrical roller thrust	160	320	95	40
TP81234	Cylindrical roller thrust	170	240	55	8
TP89334	Cylindrical roller thrust	170	280	67	18
TP89434	Cylindrical roller thrust	170	340	103	49
TP81236	Cylindrical roller thrust	180	250	56	9
TP89336	Cylindrical roller thrust	180	300	73	23
TP89436	Cylindrical roller thrust	180	360	109	59
TP81238	Cylindrical roller thrust	190	270	62	11
TP89338	Cylindrical roller thrust	190	320	78	28
TP89438	Cylindrical roller thrust	190	380	115	69
TP81140	Cylindrical roller thrust	200	250	37	4
TP81240	Cylindrical roller thrust	200	280	62	12
TP89340	Cylindrical roller thrust	200	340	85	75
TP89440	Cylindrical roller thrust	200	400	122	81
TP81144	Cylindrical roller thrust	220	270	37	5
TP81244	Cylindrical roller thrust	220	300	63	13
TP89444	Cylindrical roller thrust	220	420	122	87
TP81148	Cylindrical roller thrust	240	300	45	7
TP81248	Cylindrical roller thrust	240	340	78	22
TP89348	Cylindrical roller thrust	240	380	85	41
TP89448	Cylindrical roller thrust	240	440	122	92
TP81152	Cylindrical roller thrust	260	320	45	8
TP81252	Cylindrical roller thrust	260	360	79	24
TP89452	Cylindrical roller thrust	260	480	132	119
TP81156	Cylindrical roller thrust	280	350	53	11
TP81256	Cylindrical roller thrust	280	380	80	26
TP89456	Cylindrical roller thrust	280	520	145	154
TP81160	Cylindrical roller thrust	300	380	62	17
TP81260	Cylindrical roller thrust	300	420	95	41
TP89460	Cylindrical roller thrust	300	540	145	161
TP81164	Cylindrical roller thrust	320	400	63	18
TP81264	Cylindrical roller thrust	320	440	95	43
TP89464	Cylindrical roller thrust	320	580	155	201
TP81168	Cylindrical roller thrust	340	420	65	20
TP81268	Cylindrical roller thrust	340	460	96	47
TP89468	Cylindrical roller thrust	340	620	170	254
TP81172	Cylindrical roller thrust	360	440	65	20
TP81272	Cylindrical roller thrust	360	500	110	66
TP89472	Cylindrical roller thrust	360	640	170	264
TP81176	Cylindrical roller thrust	380	460	65	22
TP81276	Cylindrical roller thrust	380	520	112	70
TP89476	Cylindrical roller thrust	380	670	176	295
TP81180	Cylindrical roller thrust	400	480	65	23
TP81280	Cylindrical roller thrust	400	540	112	73
TP89480	Cylindrical roller thrust	400	710	185	352
TP81184	Cylindrical roller thrust	420	500	65	24
TP81284	Cylindrical roller thrust	420	580	132	96
TP89484	Cylindrical roller thrust	420	730	185	365
TP81188	Cylindrical roller thrust	440	540	80	40
TP81288	Cylindrical roller thrust	440	600	130	110
TP89488	Cylindrical roller thrust	440	780	206	475
TP81192	Cylindrical roller thrust	460	560	80	43
TP81292	Cylindrical roller thrust	460	620	130	118
TP81196	Cylindrical roller thrust	480	580	80	43
TP81296	Cylindrical roller thrust	480	650	135	128
TP811/500	Cylindrical roller thrust	500	600	80	45
TP812/500	Cylindrical roller thrust	500	670	135	140
TP894/500	Cylindrical roller thrust	500	870	224	630
TP811/530	Cylindrical roller thrust	530	640	36	56
TP812/530	Cylindrical roller thrust	530	710	140	164
TP811/560	Cylindrical roller thrust	560	670	85	60
TP812/560	Cylindrical roller thrust	560	750	150	194
TP811/600	Cylindrical roller thrust	600	710	85	63
TP812/600	Cylindrical roller thrust	600	800	150	238
TP130	Cylindrical roller thrust	76.2	152.4	34.925	3.3
TP131	Cylindrical roller thrust	76.2	177.8	34.925	5
TP132	Cylindrical roller thrust	76.2	203.2	34.925	6.7
TP133	Cylindrical roller thrust	76.2	228.6	34.925	8.5
TP134	Cylindrical roller thrust	101.6	177.8	44.45	5
TP135	Cylindrical roller thrust	101.6	203.2	44.45	7.5
TP136	Cylindrical roller thrust	101.6	228.6	44.45	10
TP137	Cylindrical roller thrust	101.6	254	44.45	13
TP138	Cylindrical roller thrust	127	203.2	44.45	6
TP139	Cylindrical roller thrust	127	228.6	44.45	9
TP140	Cylindrical roller thrust	127	254	50.8	13.5
TP141	Cylindrical roller thrust	127	279.4	50.8	17
TP142	Cylindrical roller thrust	127	304.8	50.8	21
TP143	Cylindrical roller thrust	152.4	228.6	50.8	8
TP144	Cylindrical roller thrust	152.4	254	50.8	11
TP145	Cylindrical roller thrust	152.4	279.4	50.8	15.4
TP146	Cylindrical roller thrust	152.4	304.8	50.8	19
TP313	Cylindrical roller thrust	152.4	330.2	50.8	24.5
TP147	Cylindrical roller thrust	177.8	254	50.8	9
TP148	Cylindrical roller thrust	177.8	279.4	50.8	12.7
TP149	Cylindrical roller thrust	177.8	304.8	50.8	18
TP413	Cylindrical roller thrust	177.8	330.2	50.8	23.6
TP150	Cylindrical roller thrust	177.8	355.6	76.2	40
TP151	Cylindrical roller thrust	203.2	304.8	76.2	22
TP152	Cylindrical roller thrust	203.2	355.6	76.2	35.4
TP153	Cylindrical roller thrust	203.2	406.4	76.2	51.7
TP418	Cylindrical roller thrust	203.2	457.2	76.2	71
TP420	Cylindrical roller thrust	203.2	508	76.2	94
TP514	Cylindrical roller thrust	228.6	355.6	76.2	29.5
TP516	Cylindrical roller thrust	228.6	406.4	76.2	44.5
TP518	Cylindrical roller thrust	228.6	457.2	76.2	63.5
TP520	Cylindrical roller thrust	228.6	508	76.2	86.2
TP414	Cylindrical roller thrust	254	355.6	76.2	24.5
TP154	Cylindrical roller thrust	254	406.4	76.2	40
TP155	Cylindrical roller thrust	254	457.2	95.25	76
TP156	Cylindrical roller thrust	254	508	95.25	102
TP422	Cylindrical roller thrust	254	558.8	95.25	134
TP157	Cylindrical roller thrust	304.8	457.2	95.25	61
TP158	Cylindrical roller thrust	304.8	508	114.3	101
TP522	Cylindrical roller thrust	304.8	558.8	114.3	136
TP159	Cylindrical roller thrust	304.8	609.6	114.3	169
TP160	Cylindrical roller thrust	355.6	508	95.25	69
TP161	Cylindrical roller thrust	355.6	558.8	95.25	98
TP162	Cylindrical roller thrust	355.6	609.6	95.25	129
TP526	Cylindrical roller thrust	355.6	660.4	95.25	166
TP163	Cylindrical roller thrust	406.4	558.8	114.3	93
TP164	Cylindrical roller thrust	406.4	609.6	114.3	132
TP165	Cylindrical roller thrust	406.4	660.4	114.3	172
TP528	Cylindrical roller thrust	406.4	711.2	114.3	219
TP166	Cylindrical roller thrust	457.2	660.4	127	159
TP167	Cylindrical roller thrust	457.2	711.2	127	209
TP168	Cylindrical roller thrust	457.2	762	139.7	286
TP169	Cylindrical roller thrust	508	711.2	139.7	191
TP170	Cylindrical roller thrust	508	762	139.7	250
TP171	Cylindrical roller thrust	508	812.8	152.4	340
TP172	Cylindrical roller thrust	558.8	762	139.7	204
TP173	Cylindrical roller thrust	558.8	812.8	139.7	268
TP174	Cylindrical roller thrust	558.8	863.6	152.4	363
TP175	Cylindrical roller thrust	609.6	812.8	139.7	208
TP176	Cylindrical roller thrust	609.6	863.6	139.7	270
TP177	Cylindrical roller thrust	609.6	914.4	152.4	366
TP178	Cylindrical roller thrust	660.4	914.4	158.75	329
TP179	Cylindrical roller thrust	660.4	965.2	158.75	417
TP182	Cylindrical roller thrust	660.4	1016	171.45	549
TP183	Cylindrical roller thrust	711.2	965.2	158.75	350
TP184	Cylindrical roller thrust	711.2	1016	158.75	444
TP185	Cylindrical roller thrust	711.2	1066.8	171.45	582
TP186	Cylindrical roller thrust	762	1016	158.75	376
TP187	Cylindrical roller thrust	762	1066.8	158.75	469
TP188	Cylindrical roller thrust	762	1117.6	171.45	615
ATP134	Cylindrical roller thrust	101.6	187.325	58.725	6.8
ATP135	Cylindrical roller thrust	101.6	212.725	58.725	10
ATP136	Cylindrical roller thrust	101.6	238.125	58.725	13.6
ATP137	Cylindrical roller thrust	101.6	266.7	58.725	17.7
ATP138	Cylindrical roller thrust	127	215.9	58.725	8
ATP139	Cylindrical roller thrust	127	241.3	58.725	12
ATP140	Cylindrical roller thrust	127	266.7	66.675	17.7
ATP141	Cylindrical roller thrust	127	292.1	66.675	23
ATP142	Cylindrical roller thrust	127	317.5	66.675	29
ATP143	Cylindrical roller thrust	152.4	241.3	66.675	10.5
ATP144	Cylindrical roller thrust	152.4	266.7	66.675	15
ATP145	Cylindrical roller thrust	152.4	292.1	66.675	20
ATP146	Cylindrical roller thrust	152.4	317.5	66.675	26
ATP313	Cylindrical roller thrust	152.4	342.9	66.675	33
ATP147	Cylindrical roller thrust	177.8	266.7	66.675	12
ATP148	Cylindrical roller thrust	177.8	292.1	66.675	17
ATP149	Cylindrical roller thrust	177.8	317.5	66.675	23
ATP413	Cylindrical roller thrust	177.8	342.9	66.675	29
ATP150	Cylindrical roller thrust	177.8	374.65	101.6	54
ATP151	Cylindrical roller thrust	203.2	323.85	101.6	28.6
ATP152	Cylindrical roller thrust	203.2	374.65	101.6	48
ATP153	Cylindrical roller thrust	203.2	428.625	101.6	70
ATP154	Cylindrical roller thrust	254	428.625	101.6	54
ATP155	Cylindrical roller thrust	254	479.425	127	102
ATP156	Cylindrical roller thrust	254	530.225	127	136
ATP157	Cylindrical roller thrust	304.8	479.425	127	82
ATP158	Cylindrical roller thrust	304.8	530.225	152.4	136
ATP159	Cylindrical roller thrust	304.8	631.825	152.4	231
ATP160	Cylindrical roller thrust	355.6	530.225	123.825	91
ATP161	Cylindrical roller thrust	355.6	581.025	123.825	127
ATP162	Cylindrical roller thrust	355.6	631.825	123.825	168
ATP163	Cylindrical roller thrust	406.4	581.025	152.4	122
ATP164	Cylindrical roller thrust	406.4	635	152.4	175
ATP165	Cylindrical roller thrust	406.4	685.8	152.4	231
ATP166	Cylindrical roller thrust	457.2	685.8	171.45	213
ATP167	Cylindrical roller thrust	457.2	736.6	171.45	281
ATP168	Cylindrical roller thrust	457.2	787.4	184.15	381
ATP169	Cylindrical roller thrust	508	736.6	190.5	75
ATP170	Cylindrical roller thrust	508	787.4	190.5	340
ATP171	Cylindrical roller thrust	508	838.2	203.2	454
ATP172	Cylindrical roller thrust	558.8	787.4	190.5	281
ATP173	Cylindrical roller thrust	558.8	838.2	190.5	367
ATP174	Cylindrical roller thrust	558.8	889	203.2	490
TPS334	Light duty	82.55	203.2	44.704	9
TPS335	Light duty	82.55	228.6	44.704	11
TPS336	Light duty	82.55	254	44.704	15
TPS337	Light duty	82.55	279.4	44.704	18
TPS338	Light duty	107.95	228.6	44.704	11
TPS339	Light duty	107.95	254	44.704	14
TPS340	Light duty	107.95	279.4	51.054	19
TPS341	Light duty	107.95	304.8	51.054	24
TPS342	Light duty	107.95	330.2	51.054	28
TPS343	Light duty	133.35	254	51.054	14
TPS344	Light duty	133.35	279.4	51.054	17
TPS345	Light duty	133.35	304.8	51.054	22
TPS346	Light duty	133.35	330.2	51.054	26
T1411	Tapered roller	101.6	215.9	46.038	9
T1411F	Tapered roller	101.6	215.9	46.038	9
T1441	Tapered roller	111.76	223.52	55.88	11
T1451	Tapered roller	114.3	250.825	53.975	14
T1520	Tapered roller	127	250.825	55.563	14
T1520F	Tapered roller	127	250.825	55.563	13
T1511	Tapered roller	127	266.7	58.738	17
T1511F	Tapered roller	127	266.7	58.738	17
T1611	Tapered roller	152.4	317.5	69.85	30
T1611F	Tapered roller	152.4	317.5	69.85	28
T1651	Tapered roller	165.1	311.15	88.9	34
T1651F	Tapered roller	165.1	311.15	88.9	31
T1661	Tapered roller	168.275	304.8	69.85	25
T1661F	Tapered roller	168.275	304.8	69.85	23
T1691	Tapered roller	174.625	358.775	82.55	46
T1711	Tapered roller	177.8	368.3	82.55	47
T1711F	Tapered roller	177.8	368.3	82.55	44
T1709	Tapered roller	177.8	431.8	101.6	87
T17519	Tapered roller	190	355.6	75.997	36
T1811	Tapered roller	203.2	419.1	92.075	68
T1811F	Tapered roller	203.2	419.1	92.075	63
T1811X	Tapered roller	203.2	419.1	120.65	93
T1911	Tapered roller	228.6	482.6	104.775	104
T1911F	Tapered roller	228.6	482.6	104.775	97
T1921	Tapered roller	234.95	546.1	127	171
T1921V	Tapered roller	234.95	546.1	127	171
T11011	Tapered roller	254	539.75	117.475	148
T11115	Tapered roller	279.4	495.3	133.35	125
T11120	Tapered roller	279.4	603.25	136.525	200
T11120F	Tapered roller	279.4	603.25	136.525	212
T11421	Tapered roller	355.6	533.4	101.6	84
T114520	Tapered roller	355.6	603.25	120.65	144
T116021	Tapered roller	406.4	711.2	146.05	277
T116050	Tapered roller	406.4	838.2	177.8	531
T116050F	Tapered roller	406.4	838.2	177.8	484
VFT9431	Tapered roller	101.6	215.9	46.038	9
VFT9556	Tapered roller	127	266.7	58.738	19
VFT9557	Tapered roller	150	299.72	89.692	36
VFT9654	Tapered roller	168.275	304.8	69.85	26
VFT9720	Tapered roller	177.8	368.3	82.55	49
VFT9937	Tapered roller	228.6	431.8	88.9	72
VFT10048	Tapered roller	254	508	95.25	110
VFT10049	Tapered roller	254	508	107.95	123
VFT10050	Tapered roller	256.54	546.1	165.1	227
VFT10051	Tapered roller	259.999	479.999	132.08	127
VFT11004	Tapered roller	279.4	603.25	136.525	230
VFT12003	Tapered roller	304.8	609.6	114.3	191
VFT12004	Tapered roller	304.8	673.1	171.45	348
VFT12005	Tapered roller	304.8	736.6	279.4	732
VFT14004	Tapered roller	368.541	609.156	120.65	176
VFT16004	Tapered roller	406.4	711.2	167.084	357
VFT16005	Tapered roller	406.4	712.394	146.05	303
VFT17001	Tapered roller	431.8	863.6	228.6	775
VFT20003	Tapered roller	508	990.6	196.85	883
VFT22002	Tapered roller	558.8	1066.8	285.75	1402
VFT28001	Tapered roller	711.2	965.2	127	354
VFT28002	Tapered roller	711.2	990.6	190.5	572
VFT32002	Tapered roller	825.5	1168.4	127	550
AVFT9721	Tapered roller	184.15	406.4	203.2	157
AVFT9722	Tapered roller	200	399.999	121.841	86
AVFT9938	Tapered roller	228.6	482.6	158.75	170
AVFT9939	Tapered roller	241.3	488.95	152.4	163
AVFT10052	Tapered roller	254	508	215.9	251
AVFT12006	Tapered roller	304.8	609.6	215.9	360
AVFT14005	Tapered roller	355.6	660.4	254	483
AVFT16006	Tapered roller	406.4	869.95	241.3	858
NNU4926	Cylindrical roller	130	180	50	3.9
NNU3026	Cylindrical roller	130	200	52	5.8
NNU4126	Cylindrical roller	130	210	80	10.5
NNU4928	Cylindrical roller	140	190	50	4.1
NNU3028	Cylindrical roller	140	210	53	6.2
NNU4128	Cylindrical roller	140	225	85	13
NNU4930	Cylindrical roller	150	210	60	6.3
NNU4130	Cylindrical roller	150	250	100	18
NNU4932	Cylindrical roller	160	220	60	7
NNU4132	Cylindrical roller	160	270	109	25
NNU4934	Cylindrical roller	170	230	60	7
NNU4134	Cylindrical roller	170	280	109	26
NNU4936	Cylindrical roller	180	250	69	10.5
NNU4136	Cylindrical roller	180	300	118	32.5
NNU4938	Cylindrical roller	190	260	69	11
NNU4138	Cylindrical roller	190	320	128	41
NNU4940	Cylindrical roller	200	280	80	15
NNU4140	Cylindrical roller	200	340	140	51
NNU4944	Cylindrical roller	220	300	80	16.5
NNU4144	Cylindrical roller	220	370	150	65
NNU4948	Cylindrical roller	240	320	80	18
NNU3048	Cylindrical roller	240	360	92	32
NNU4148	Cylindrical roller	240	400	160	85
NNU4952	Cylindrical roller	260	360	100	31
NNU4052	Cylindrical roller	260	400	140	63.5
NNU4152	Cylindrical roller	260	440	180	110
NNU4956	Cylindrical roller	280	380	100	33.5
NNU4056	Cylindrical roller	280	420	140	66.5
NNU4860	Cylindrical roller	300	380	80	22
NNU4960	Cylindrical roller	300	420	118	50
NNU4060	Cylindrical roller	300	460	160	96
NNU4160	Cylindrical roller	300	500	200	155
NNU4864	Cylindrical roller	320	400	80	24.5
NNU4964	Cylindrical roller	320	440	118	55.5
NNU4064	Cylindrical roller	320	480	160	100
NNU4164	Cylindrical roller	320	540	218	200
NNU4868	Cylindrical roller	340	420	80	25
NNU4968	Cylindrical roller	340	460	118	56
NNU4068	Cylindrical roller	340	520	180	140
NNU4168	Cylindrical roller	360	580	243	260
NNU4972	Cylindrical roller	360	480	118	58.5
NNU4072	Cylindrical roller	360	540	180	140
NNU4172	Cylindrical roller	360	600	243	275
NNU4876	Cylindrical roller	380	480	100	44
NNU4976	Cylindrical roller	380	520	140	88
NNU4076	Cylindrical roller	380	560	180	285
NNU4880	Cylindrical roller	400	500	100	46
NNU4980	Cylindrical roller	400	540	140	92
NNU4080	Cylindrical roller	400	600	200	205
NNU4180	Cylindrical roller	400	650	250	325
NNU4884	Cylindrical roller	420	520	100	48
NNU4984	Cylindrical roller	420	560	140	96
NNU4084	Cylindrical roller	420	620	200	183
NNU4184	Cylindrical roller	420	700	280	440
NNU4888	Cylindrical roller	440	540	100	50
NNU4988	Cylindrical roller	440	600	160	130
NNU4088	Cylindrical roller	440	650	212	215
NNU4188	Cylindrical roller	440	720	280	450
NNU4892	Cylindrical roller	460	580	118	75
NNU4992	Cylindrical roller	460	620	160	135
NNU4192	Cylindrical roller	460	760	300	535
NNU4996	Cylindrical roller	480	650	170	160
NNU4096	Cylindrical roller	480	700	218	275
NNU4196	Cylindrical roller	480	790	308	590
NNU49/500	Cylindrical roller	500	670	170	165
NNU40/500	Cylindrical roller	500	720	218	285
NNU41/500	Cylindrical roller	500	830	325	710
NNU49/530	Cylindrical roller	530	710	180	200
NNU40/530	Cylindrical roller	530	780	250	420
NNU41/530	Cylindrical roller	530	870	335	790
NNU49/560	Cylindrical roller	560	750	190	236
NNU40/560	Cylindrical roller	560	820	258	475
NNU49/600	Cylindrical roller	600	800	200	280
NNU40/600	Cylindrical roller	600	870	272	530
NNU41/600	Cylindrical roller	600	980	375	480
NNU49/630	Cylindrical roller	630	850	218	355
NNU40/630	Cylindrical roller	630	920	290	635
NNU41/630	Cylindrical roller	630	1030	400	1330
NNU49/670	Cylindrical roller	670	900	230	410
NNU40/670	Cylindrical roller	670	980	308	765
NNU41/670	Cylindrical roller	670	1090	412	1500
NNU40/710	Cylindrical roller	710	1030	315	850
NNU41/710	Cylindrical roller	710	1150	438	1790
NNU48/750	Cylindrical roller	750	920	170	240
NNU49/750	Cylindrical roller	750	1000	250	540
NNU40/750	Cylindrical roller	750	1090	335	925
NNU41/750	Cylindrical roller	750	1220	475	2230
NNU49/800	Cylindrical roller	800	1060	258	615
NNU40/800	Cylindrical roller	800	1150	345	1140
NNU41/800	Cylindrical roller	800	1280	475	2390
NNU49/850	Cylindrical roller	850	1120	272	360
NNU40/850	Cylindrical roller	850	1220	365	1350
NNU49/900	Cylindrical roller	900	1180	280	805
NNU40/900	Cylindrical roller	900	1280	375	1500
NNU49/950	Cylindrical roller	950	1250	300	960
NNU40/950	Cylindrical roller	950	1360	412	1900
NNU49/1000	Cylindrical roller	1000	1320	315	1250
NNU40/1000	Cylindrical roller	1000	1420	412	2000
NNU49/1060	Cylindrical roller	1060	1400	335	1350
NNU49/1120	Cylindrical roller	1120	1460	335	1450
NNU49/1180	Cylindrical roller	1180	1540	355	1650
NN4926	Cylindrical roller	130	180	50	3.9
NN3026	Cylindrical roller	130	200	52	5.8
NN4126	Cylindrical roller	130	210	80	10.5
NN4928	Cylindrical roller	140	190	50	4.1
NN3028	Cylindrical roller	140	210	53	6.2
NN4128	Cylindrical roller	140	225	85	13
NN4930	Cylindrical roller	150	210	60	6.3
NN4130	Cylindrical roller	150	250	100	18
NN4932	Cylindrical roller	160	220	60	7
NN4132	Cylindrical roller	160	270	109	25
NN4934	Cylindrical roller	170	230	60	7
NN4134	Cylindrical roller	170	280	109	26
NN4936	Cylindrical roller	180	250	69	10.5
NN4136	Cylindrical roller	180	300	118	32.5
NN4938	Cylindrical roller	190	260	69	11
NN4138	Cylindrical roller	190	320	128	41
NN4940	Cylindrical roller	200	280	80	15
NN4140	Cylindrical roller	200	340	140	51
NN4944	Cylindrical roller	220	300	80	16.5
NN4144	Cylindrical roller	220	370	150	65
NN4948	Cylindrical roller	240	320	80	18
NN3048	Cylindrical roller	240	360	92	32
NN4148	Cylindrical roller	240	400	160	85
NN4952	Cylindrical roller	260	360	100	31
NN4052	Cylindrical roller	260	400	140	63.5
NN4152	Cylindrical roller	260	440	180	110
NN4956	Cylindrical roller	280	380	100	33.5
NN4056	Cylindrical roller	280	420	140	66.5
NN4860	Cylindrical roller	300	380	80	22
NN4960	Cylindrical roller	300	420	118	50
NN4060	Cylindrical roller	300	460	160	96
NN4160	Cylindrical roller	300	500	200	155
NN4864	Cylindrical roller	320	400	80	24.5
NN4964	Cylindrical roller	320	440	118	55.5
NN4064	Cylindrical roller	320	480	160	100
NN4164	Cylindrical roller	320	540	218	200
NN4868	Cylindrical roller	340	420	80	25
NN4968	Cylindrical roller	340	460	118	56
NN4068	Cylindrical roller	340	520	180	140
NN4168	Cylindrical roller	360	580	243	260
NN4972	Cylindrical roller	360	480	118	58.5
NN4072	Cylindrical roller	360	540	180	140
NN4172	Cylindrical roller	360	600	243	275
NN4876	Cylindrical roller	380	480	100	44
NN4976	Cylindrical roller	380	520	140	88
NN4076	Cylindrical roller	380	560	180	285
NN4880	Cylindrical roller	400	500	100	46
NN4980	Cylindrical roller	400	540	140	92
NN4080	Cylindrical roller	400	600	200	205
NN4180	Cylindrical roller	400	650	250	325
NN4884	Cylindrical roller	420	520	100	48
NN4984	Cylindrical roller	420	560	140	96
NN4084	Cylindrical roller	420	620	200	183
NN4184	Cylindrical roller	420	700	280	440
NN4888	Cylindrical roller	440	540	100	50
NN4988	Cylindrical roller	440	600	160	130
NN4088	Cylindrical roller	440	650	212	215
NN4188	Cylindrical roller	440	720	280	450
NN4892	Cylindrical roller	460	580	118	75
NN4992	Cylindrical roller	460	620	160	135
NN4192	Cylindrical roller	460	760	300	535
NN4996	Cylindrical roller	480	650	170	160
NN4096	Cylindrical roller	480	700	218	275
NN4196	Cylindrical roller	480	790	308	590
NN49/500	Cylindrical roller	500	670	170	165
NN40/500	Cylindrical roller	500	720	218	285
NN41/500	Cylindrical roller	500	830	325	710
NN49/530	Cylindrical roller	530	710	180	200
NN40/530	Cylindrical roller	530	780	250	420
NN41/530	Cylindrical roller	530	870	335	790
NN49/560	Cylindrical roller	560	750	190	236
NN40/560	Cylindrical roller	560	820	258	475
NN49/600	Cylindrical roller	600	800	200	280
NN40/600	Cylindrical roller	600	870	272	530
NN41/600	Cylindrical roller	600	980	375	480
NN49/630	Cylindrical roller	630	850	218	355
NN40/630	Cylindrical roller	630	920	290	635
NN41/630	Cylindrical roller	630	1030	400	1330
NN49/670	Cylindrical roller	670	900	230	410
NN40/670	Cylindrical roller	670	980	308	765
NN41/670	Cylindrical roller	670	1090	412	1500
NN40/710	Cylindrical roller	710	1030	315	850
NN41/710	Cylindrical roller	710	1150	438	1790
NN48/750	Cylindrical roller	750	920	170	240
NN49/750	Cylindrical roller	750	1000	250	540
NN40/750	Cylindrical roller	750	1090	335	925
NN41/750	Cylindrical roller	750	1220	475	2230
NN49/800	Cylindrical roller	800	1060	258	615
NN40/800	Cylindrical roller	800	1150	345	1140
NN41/800	Cylindrical roller	800	1280	475	2390
NN49/850	Cylindrical roller	850	1120	272	360
NN40/850	Cylindrical roller	850	1220	365	1350
NN49/900	Cylindrical roller	900	1180	280	805
NN40/900	Cylindrical roller	900	1280	375	1500
NN49/950	Cylindrical roller	950	1250	300	960
NN40/950	Cylindrical roller	950	1360	412	1900
NN49/1000	Cylindrical roller	1000	1320	315	1250
NN40/1000	Cylindrical roller	1000	1420	412	2000
NN49/1060	Cylindrical roller	1060	1400	335	1350
NN49/1120	Cylindrical roller	1120	1460	335	1450
NN49/1180	Cylindrical roller	1180	1540	355	1650
A5218	Cylindrical roller	90	160	52.4	2.6
A5318	Cylindrical roller	90	190	73	6
A5219	Cylindrical roller	95	170	55.6	3
A5319	Cylindrical roller	95	200	77.8	7
A5220	Cylindrical roller	100	180	60.3	4
A5320	Cylindrical roller	100	215	82.6	8.4
A5221	Cylindrical roller	105	190	65.1	4.5
A5321	Cylindrical roller	105	225	87.3	4.5
A5222	Cylindrical roller	110	200	69.9	5.4
A5322	Cylindrical roller	110	240	92.1	11.7
A5024	Cylindrical roller	120	180	46	4
A5224	Cylindrical roller	120	215	76.2	14.5
A5324	Cylindrical roller	120	260	104.8	15
A5026	Cylindrical roller	130	200	52	6
A5226	Cylindrical roller	130	230	79.4	7.5
A5326	Cylindrical roller	130	280	111.1	18.5
A5028	Cylindrical roller	140	210	53	6.6
A5128	Cylindrical roller	140	220	63.5	5.3
A5228	Cylindrical roller	140	250	82.6	9
A5030	Cylindrical roller	150	225	56	8
A5130	Cylindrical roller	150	235	66.7	6.3
A5230	Cylindrical roller	150	270	88.9	12
A5330	Cylindrical roller	150	320	123.8	27.5
A5032	Cylindrical roller	160	240	60	10
A5132	Cylindrical roller	160	250	73	7.5
A5232	Cylindrical roller	160	290	98.4	14.5
A5332	Cylindrical roller	160	340	133.4	32
A5034	Cylindrical roller	170	260	67	13
A5134	Cylindrical roller	170	265	76.2	9
A5234	Cylindrical roller	170	310	104.8	18
A5334	Cylindrical roller	170	360	139.7	38
A5036	Cylindrical roller	180	280	74	17.4
A5136	Cylindrical roller	180	280	82.6	10.3
A5236	Cylindrical roller	180	320	108	19
A5336	Cylindrical roller	180	380	146.1	44
A5038	Cylindrical roller	190	290	75	18.4
A5138	Cylindrical roller	190	300	85.7	12.7
A5238	Cylindrical roller	190	340	114.3	23
A5338	Cylindrical roller	190	400	152.4	51.5
A5040	Cylindrical roller	200	310	82	24
A5140	Cylindrical roller	200	320	88.9	15.5
A5240	Cylindrical roller	200	360	120.7	27
A5340	Cylindrical roller	200	420	165.1	57.5
A5142	Cylindrical roller	210	340	95.3	18
A5242	Cylindrical roller	210	380	127	32.5
A5342	Cylindrical roller	210	440	171.5	66
A5044	Cylindrical roller	220	340	90	31
A5144	Cylindrical roller	220	350	98.4	19.5
A5244	Cylindrical roller	220	400	133.4	38.5
A5344	Cylindrical roller	220	460	177.8	76
A5146	Cylindrical roller	230	370	101.6	23
A5246	Cylindrical roller	230	420	139.7	45
A5346	Cylindrical roller	230	480	184.2	86
A5048	Cylindrical roller	240	360	92	34.5
A5148	Cylindrical roller	240	390	108	27.5
A5248	Cylindrical roller	240	440	146.1	51.5
A5348	Cylindrical roller	240	500	190.5	98
A5150	Cylindrical roller	250	410	111.1	31.5
A5250	Cylindrical roller	250	460	152.4	60
A5350	Cylindrical roller	250	520	196.9	110
A5052	Cylindrical roller	260	400	104	50
A5152	Cylindrical roller	260	430	114.3	36.5
A5252	Cylindrical roller	260	480	158.8	68.5
A5352	Cylindrical roller	260	540	203.2	124
A5056	Cylindrical roller	280	420	106	54
A5156	Cylindrical roller	280	460	123.8	45
A5256	Cylindrical roller	280	500	165.1	72
A5356	Cylindrical roller	280	580	215.9	150
A5060	Cylindrical roller	300	460	118	76
A5160	Cylindrical roller	300	480	127	49
A5260	Cylindrical roller	300	540	177.8	91
A5360	Cylindrical roller	300	620	241.3	172
A5064	Cylindrical roller	320	480	121	81.5
A5164	Cylindrical roller	320	500	130.2	55
A5264	Cylindrical roller	320	580	190.5	115
A5364	Cylindrical roller	320	670	254	208
CDD218	Cylindrical roller	90	160	30	2.6
ADD5218	Cylindrical roller	90	160	52.4	2.6
CDD318	Cylindrical roller	90	190	43	6
ADD5318	Cylindrical roller	90	190	73	6
CDD219	Cylindrical roller	95	170	32	3
ADD5219	Cylindrical roller	95	170	55.6	3
CDD319	Cylindrical roller	95	200	45	7
ADD5319	Cylindrical roller	95	200	77.8	7
CDD220	Cylindrical roller	100	180	34	4
ADD5220	Cylindrical roller	100	180	60.3	4
CDD320	Cylindrical roller	100	215	47	8.4
ADD5320	Cylindrical roller	100	215	82.6	8.4
CDD221	Cylindrical roller	105	190	36	4.5
ADD5221	Cylindrical roller	105	190	65.1	4.5
CDD321	Cylindrical roller	105	225	49	4.5
ADD5321	Cylindrical roller	105	225	87.3	4.5
CDD222	Cylindrical roller	110	200	38	5.4
ADD5222	Cylindrical roller	110	200	69.9	5.4
CDD322	Cylindrical roller	110	240	50	11.7
ADD5322	Cylindrical roller	110	240	92.1	11.7
ADD5024	Cylindrical roller	120	180	46	4
CDD224	Cylindrical roller	120	215	40	14.5
ADD5224	Cylindrical roller	120	215	76.2	14.5
CDD324	Cylindrical roller	120	260	55	15
ADD5324	Cylindrical roller	120	260	104.8	15
ADD5026	Cylindrical roller	130	200	52	6
CDD226	Cylindrical roller	130	230	40	7.5
ADD5226	Cylindrical roller	130	230	79.4	7.5
CDD326	Cylindrical roller	130	280	58	18.5
ADD5326	Cylindrical roller	130	280	111.1	18.5
ADD5028	Cylindrical roller	140	210	53	6.6
CDD128	Cylindrical roller	140	220	36	5.3
ADD5128	Cylindrical roller	140	220	63.5	5.3
CDD228	Cylindrical roller	140	250	42	9
ADD5228	Cylindrical roller	140	250	82.6	9
CDD328	Cylindrical roller	140	300	62	23
ADD5328	Cylindrical roller	140	300	114.3	23
CDD1030	Cylindrical roller	150	225	35	5
ADD5030	Cylindrical roller	150	225	56	8
CDD130	Cylindrical roller	150	235	38	6.3
ADD5130	Cylindrical roller	150	235	66.7	6.3
CDD230	Cylindrical roller	150	270	45	12
ADD5230	Cylindrical roller	150	270	88.9	12
CDD330	Cylindrical roller	150	320	65	27.5
ADD5330	Cylindrical roller	150	320	123.8	27.5
CDD1032	Cylindrical roller	160	240	38	6
ADD5032	Cylindrical roller	160	240	60	10
CDD132	Cylindrical roller	160	250	40	7.5
ADD5132	Cylindrical roller	160	250	73	7.5
CDD232	Cylindrical roller	160	290	48	14.5
ADD5232	Cylindrical roller	160	290	98.4	14.5
CDD332	Cylindrical roller	160	340	68	32
ADD5332	Cylindrical roller	160	340	133.4	32
CDD1034	Cylindrical roller	170	260	42	8
ADD5034	Cylindrical roller	170	260	67	13
CDD134	Cylindrical roller	170	265	42	9
ADD5134	Cylindrical roller	170	265	76.2	9
CDD234	Cylindrical roller	170	310	52	18
ADD5234	Cylindrical roller	170	310	104.8	18
CDD334	Cylindrical roller	170	360	72	38
ADD5334	Cylindrical roller	170	360	139.7	38
CDD1036	Cylindrical roller	180	280	46	10.6
ADD5036	Cylindrical roller	180	280	74	17.4
CDD136	Cylindrical roller	180	280	44	10.3
ADD5136	Cylindrical roller	180	280	82.6	10.3
CDD236	Cylindrical roller	180	320	52	19
ADD5236	Cylindrical roller	180	320	108	19
CDD336	Cylindrical roller	180	380	75	44
ADD5336	Cylindrical roller	180	380	146.1	44
CDD1038	Cylindrical roller	190	290	46	11
ADD5038	Cylindrical roller	190	290	75	18.4
CDD138	Cylindrical roller	190	300	46	12.7
ADD5138	Cylindrical roller	190	300	85.7	12.7
CDD238	Cylindrical roller	190	340	55	23
ADD5238	Cylindrical roller	190	340	114.3	23
CDD338	Cylindrical roller	190	400	78	51.5
ADD5338	Cylindrical roller	190	400	152.4	51.5
CDD1040	Cylindrical roller	200	310	51	14
ADD5040	Cylindrical roller	200	310	82	24
CDD140	Cylindrical roller	200	320	48	15.5
ADD5140	Cylindrical roller	200	320	88.9	15.5
CDD240	Cylindrical roller	200	360	58	27
ADD5240	Cylindrical roller	200	360	120.7	27
CDD340	Cylindrical roller	200	420	80	57.5
ADD5340	Cylindrical roller	200	420	165.1	57.5
CDD142	Cylindrical roller	210	340	50	18
ADD5142	Cylindrical roller	210	340	95.3	18
CDD242	Cylindrical roller	210	380	62	32.5
ADD5242	Cylindrical roller	210	380	127	32.5
CDD342	Cylindrical roller	210	440	84	66
ADD5342	Cylindrical roller	210	440	171.5	66
CDD1044	Cylindrical roller	220	340	56	19
ADD5044	Cylindrical roller	220	340	90	31
CDD144	Cylindrical roller	220	350	51	19.5
ADD5144	Cylindrical roller	220	350	98.4	19.5
CDD244	Cylindrical roller	220	400	65	38.5
ADD5244	Cylindrical roller	220	400	133.4	38.5
CDD344	Cylindrical roller	220	460	88	76
ADD5344	Cylindrical roller	220	460	177.8	76
CDD146	Cylindrical roller	230	370	53	23
ADD5146	Cylindrical roller	230	370	101.6	23
CDD246	Cylindrical roller	230	420	69	45
ADD5246	Cylindrical roller	230	420	139.7	45
CDD346	Cylindrical roller	230	480	91	86
ADD5346	Cylindrical roller	230	480	184.2	86
CDD1048	Cylindrical roller	240	360	56	20
ADD5048	Cylindrical roller	240	360	92	34.5
CDD148	Cylindrical roller	240	390	55	27.5
ADD5148	Cylindrical roller	240	390	108	27.5
CDD248	Cylindrical roller	240	440	72	51.5
ADD5248	Cylindrical roller	240	440	146.1	51.5
CDD348	Cylindrical roller	240	500	95	98
ADD5348	Cylindrical roller	240	500	190.5	98
CDD150	Cylindrical roller	250	410	57	31.5
ADD5150	Cylindrical roller	250	410	111.1	31.5
CDD250	Cylindrical roller	250	460	76	60
ADD5250	Cylindrical roller	250	460	152.4	60
CDD350	Cylindrical roller	250	520	98	110
ADD5350	Cylindrical roller	250	520	196.9	110
CDD1052	Cylindrical roller	260	400	65	30
ADD5052	Cylindrical roller	260	400	104	50
CDD152	Cylindrical roller	260	430	59	36.5
ADD5152	Cylindrical roller	260	430	114.3	36.5
CDD252	Cylindrical roller	260	480	80	68.5
ADD5252	Cylindrical roller	260	480	158.8	68.5
CDD352	Cylindrical roller	260	540	102	124
ADD5352	Cylindrical roller	260	540	203.2	124
CDD1056	Cylindrical roller	280	420	65	32
ADD5056	Cylindrical roller	280	420	106	54
CDD156	Cylindrical roller	280	460	63	45
ADD5156	Cylindrical roller	280	460	123.8	45
CDD256	Cylindrical roller	280	500	80	72
ADD5256	Cylindrical roller	280	500	165.1	72
CDD356	Cylindrical roller	280	580	108	150
ADD5356	Cylindrical roller	280	580	215.9	150
CDD1060	Cylindrical roller	300	460	74	45
ADD5060	Cylindrical roller	300	460	118	76
CDD160	Cylindrical roller	300	480	67	49
ADD5160	Cylindrical roller	300	480	127	49
CDD260	Cylindrical roller	300	540	85	91
ADD5260	Cylindrical roller	300	540	177.8	91
CDD360	Cylindrical roller	300	620	109	172
ADD5360	Cylindrical roller	300	620	241.3	172
CDD1064	Cylindrical roller	320	480	74	47.5
ADD5064	Cylindrical roller	320	480	121	81.5
CDD164	Cylindrical roller	320	500	71	55
ADD5164	Cylindrical roller	320	500	130.2	55
CDD264	Cylindrical roller	320	580	92	115
ADD5264	Cylindrical roller	320	580	190.5	115
CDD364	Cylindrical roller	320	670	112	208
ADD5364	Cylindrical roller	320	670	254	208
78TS553A	Tapered roller	200.03	365.05	92.08	36
78TS524	Tapered roller	200.03	384.18	112.71	61
78TS514	Tapered roller	200.03	393.7	111.13	61
79TS563	Tapered roller	201.61	365.05	92.08	36
79TS553	Tapered roller	201.61	368.3	92.08	37
80TS563	Tapered roller	203.2	365.05	92.08	38
80TS553	Tapered roller	203.2	368.3	92.08	39
80TS503	Tapered roller	203.2	406.4	92.08	47
80TS424	Tapered roller	203.2	482.6	117.48	93
81TS613	Tapered roller	206.38	336.55	98.43	34
81TS573	Tapered roller	206.38	360	92.08	36
81TS424	Tapered roller	206.38	482.6	117.48	93
82TS592	Tapered roller	209.55	355.6	68.26	28
85TS602	Tapered roller	215.9	355.6	69.85	21
87TS464	Tapered roller	222.25	482.6	117.48	90
88TS632	Tapered roller	225.43	355.6	69.85	23
88TS573	Tapered roller	225.43	400.05	88.9	43
89TS533	Tapered roller	228.4	431.8	92.08	51
90TS642	Tapered roller	228.6	355.6	69.85	24
90TS573	Tapered roller	228.6	400.05	88.9	44
90TS544	Tapered roller	228.6	425.45	101.6	60
90TS474	Tapered roller	228.6	488.95	123.83	100
90TS454	Tapered roller	228.6	508	117.48	107
91TS653	Tapered roller	231.78	358.78	71.44	28
92TS622	Tapered roller	234.95	381	74.61	35
92TS614	Tapered roller	234.95	384.18	112.71	51
95TS652	Tapered roller	241.3	368.3	50.8	18
95TS612	Tapered roller	241.3	393.7	73.82	33
95TS602	Tapered roller	241.3	403.23	69.85	34
95TS592	Tapered roller	241.3	406.4	69.85	35
95TS544	Tapered roller	241.3	444.5	101.6	66
95TS494	Tapered roller	241.3	488.95	120.65	103
95TS474	Tapered roller	241.3	508	117.48	111
96TS643	Tapered roller	244.48	381	79.38	31
97TS702	Tapered roller	247.65	368.3	50.8	18
97TS652	Tapered roller	247.65	381	74.61	32
97TS614	Tapered roller	247.65	406.4	115.89	60
100TS712	Tapered roller	254	358.78	71.44	22
100TS702	Tapered roller	254	365.13	58.74	20
100TS642	Tapered roller	254	393.7	73.82	31
100TS632	Tapered roller	254	403.23	69.85	36
100TS622	Tapered roller	254	406.4	69.85	37
100TS603	Tapered roller	254	422.28	86.12	45
100TS593	Tapered roller	254	431.72	82.55	46
100TS573	Tapered roller	254	444.5	76.2	47
100TS513	Tapered roller	254	495.3	76.2	70
100TS515	Tapered roller	254	495.3	141.29	129
100TS485	Tapered roller	254	533.4	133.35	125
100TS454	Tapered roller	254	558.8	123.825	126
101TS632	Tapered roller	258.763	400.05	69.85	27
102TS702	Tapered roller	260.35	368.3	58.738	17
102TS652	Tapered roller	260.35	400.05	69.85	27
102TS642	Tapered roller	260.35	406.4	69.85	10
102TS623	Tapered roller	260.35	419.1	85.725	41
102TS613	Tapered roller	260.35	422.275	86.121	42
102TS603	Tapered roller	260.35	431.724	82.55	43
102TS534	Tapered roller	260.35	488.95	120.65	97
105TS682	Tapered roller	266.7	393.7	73.767	27
105TS623	Tapered roller	266.7	431.724	82.55	42
105TS604	Tapered roller	266.7	444.5	120.65	73
106TS702	Tapered roller	269.875	381	74.613	26
107TS672	Tapered roller	273.05	406.4	69.85	60
110TS593	Tapered roller	279.4	469.9	95.25	60
110TS574	Tapered roller	279.4	488.95	120.65	89
110TS692	Tapered roller	279.999	406.4	69.85	27
110TS702	Tapered roller	280.192	400.05	52.388	27
110TS692	Tapered roller	280.192	406.4	69.85	27
112TS752	Tapered roller	285.75	380.898	65.088	20
112TS613	Tapered roller	285.75	469.9	81.77	49
112TS603	Tapered roller	285.75	476.25	81.77	51
113TS713	Tapered roller	288.925	406.4	77.788	31
115TS623	Tapered roller	292.1	469.9	95.25	56
115TS565	Tapered roller	292.1	520.598	127	115
115TS564	Tapered roller	292.1	520.7	107.95	98
115TS525	Tapered roller	292.1	558.8	136.525	141
117TS692	Tapered roller	298.45	431.8	69.85	29
117TS672	Tapered roller	298.45	444.5	63.5	30
118TS615	Tapered roller	299.974	495.3	141.288	110
118TS713	Tapered roller	300.038	422.275	82.55	35
120TS693	Tapered roller	304.8	438.048	76.2	34
120TS682	Tapered roller	304.8	444.5	63.5	29
120TS613	Tapered roller	304.8	495.3	76.2	53
120TS623	Tapered roller	304.8	495.3	95.25	64
120TS614	Tapered roller	304.8	499.948	101.6	66
120TS545	Tapered roller	304.8	558.8	136.525	135
123TS634	Tapered roller	314.325	495.3	120.65	83
125TS712	Tapered roller	317.5	444.5	63.5	26
125TS713	Tapered roller	317.5	447.675	85.725	41
125TS692	Tapered roller	317.5	457.2	66.675	34
125TS535	Tapered roller	317.5	596.9	136.525	163
125TS515	Tapered roller	317.5	622.3	147.638	179
128TS535	Tapered roller	325.438	596.9	136.525	159
130TS623A	Tapered roller	329.87	533.4	76.2	60
130TS702	Tapered roller	330.2	469.9	60.325	30
130TS672	Tapered roller	330.2	482.6	60.325	34
130TS682	Tapered roller	330.2	482.6	66.675	36
130TS683	Tapered roller	330.2	482.6	85.725	46
130TS672B	Tapered roller	330.2	488.95	60.325	35
131TS703	Tapered roller	333.375	469.9	90.488	50
135TS643	Tapered roller	342.9	533.4	76.2	58
136TS742	Tapered roller	346.075	469.9	60.325	27
136TS712	Tapered roller	346.075	482.6	60.325	30
136TS722	Tapered roller	346.075	482.6	66.675	32
136TS713	Tapered roller	346.075	488.95	95.25	55
137TS703	Tapered roller	349.25	501.65	90.488	54
140TS732	Tapered roller	355.6	482.6	60.325	28
140TS722	Tapered roller	355.6	488.95	60.325	49
140TS712	Tapered roller	355.6	501.65	74.613	41
140TS713	Tapered roller	355.6	501.65	90.488	52
140TS692	Tapered roller	355.6	514.35	74.613	93
140TS536	Tapered roller	355.6	673.1	152.4	225
145TS704	Tapered roller	368.249	523.875	101.6	70
145TS613	Tapered roller	368.3	596.9	95.25	85
145TS605	Tapered roller	368.3	609.6	142.875	166
145TS595	Tapered roller	368.3	622.3	142.875	177
146TS743	Tapered roller	371.475	501.65	74.613	36
147TS713	Tapered roller	374.65	522.288	85.725	53
150TS752	Tapered roller	381	508	63.5	30
150TS704	Tapered roller	381	546.1	104.775	77
150TS654	Tapered roller	381	590.55	114.3	119
151TS694	Tapered roller	384.175	546.1	104.775	77
151TS644	Tapered roller	384.175	596.9	114.3	117
151TS753	Tapered roller	385.763	514.35	82.55	64
152TS713	Tapered roller	387.248	546.1	87.313	66
155TS723	Tapered roller	393.7	546.1	76.2	44
155TS702	Tapered roller	393.7	558.8	65.088	50
156TS733	Tapered roller	396.875	546.1	76.2	45
156TS712	Tapered roller	396.875	558.8	65.088	49
160TS742	Tapered roller	406.4	546.1	76.2	42
160TS753	Tapered roller	406.4	546.1	87.313	58
160TS743	Tapered roller	406.4	549.275	85.725	54
160TS722	Tapered roller	406.4	558.8	65.088	46
160TS703	Tapered roller	406.4	574.675	76.2	54
160TS694	Tapered roller	406.4	590.55	107.95	97
160TS673	Tapered roller	406.4	609.524	82.55	83
160TS673A	Tapered roller	406.4	609.524	87.313	88
160TS663	Tapered roller	406.4	609.6	92.075	79
160TS603	Tapered roller	406.4	673.1	88.9	119
160TS537	Tapered roller	406.4	762	180.975	329
161TS713	Tapered roller	409.575	574.675	76.2	56
161TS673	Tapered roller	411.163	609.6	92.075	88
163TS704	Tapered roller	415.925	590.55	114.3	95
167TS625	Tapered roller	425.45	685.698	142.875	188
169TS713	Tapered roller	430.213	603.25	76.2	60
170TS751	Tapered roller	431.8	571.5	44.45	28
170TS752	Tapered roller	431.8	571.5	74.613	43
170TS762	Tapered roller	431.8	571.5	74.613	48
170TS723	Tapered roller	431.8	603.25	76.2	59
170TS643	Tapered roller	431.8	673.1	88.9	92
170TS643A	Tapered roller	431.8	673.1	95.25	103
170TS637	Tapered roller	431.902	685.698	177.8	247
173TS673	Tapered roller	441.325	660.4	91.28	104
175TS704	Tapered roller	444.5	635	120.65	117
176TS791	Tapered roller	447.675	565.15	44.45	26
176TS704	Tapered roller	447.675	635	120.65	122
177TS753	Tapered roller	450.85	603.25	85.725	22
179TS605	Tapered roller	456.794	761.873	142.875	57
180TS763	Tapered roller	457.2	596.9	76.2	50
180TS753	Tapered roller	457.2	603.25	85.725	61
180TS743	Tapered roller	457.2	615.95	85.725	72
180TS693	Tapered roller	457.2	660.4	91.28	102
180TS634	Tapered roller	457.2	730.148	120.65	176
188TS705	Tapered roller	479.425	679.45	128.588	150
190TS782	Tapered roller	482.6	615.95	53.975	35
190TS783	Tapered roller	482.6	615.95	85.725	59
190TS763	Tapered roller	482.6	634.873	80.963	66
192TS743A	Tapered roller	488.671	660.4	93.663	89
192TS773	Tapered roller	488.95	634.873	84.138	64
192TS743	Tapered roller	488.95	660.4	93.663	89
192TS763B	Tapered roller	489.026	634.873	80.963	64
196TS763	Tapered roller	498.475	634.873	80.963	59
197TS705	Tapered roller	501.65	711.2	136.525	171
200TS693	Tapered roller	508	736.6	88.9	117
200TS615	Tapered roller	508	838.2	146.05	279
202TS703	Tapered roller	514.35	736.6	88.9	114
205TS713	Tapered roller	520.7	736.6	88.9	111
210TS842	Tapered roller	533.4	635	50.8	29
210TS683	Tapered roller	533.4	784.225	88.9	136
211TS705	Tapered roller	536.575	761.873	146.05	213
212TS852	Tapered roller	539.75	635	50.8	26
215TS743	Tapered roller	546.1	736.6	76.2	72
216TS793	Tapered roller	549.097	692.15	80.963	67
216TS803	Tapered roller	549.275	692.15	80.963	68
220TS772	Tapered roller	558.8	723.9	73.025	74
220TS763	Tapered roller	558.8	736.6	76.2	79
220TS753	Tapered roller	558.8	736.6	88.108	96
220TS764	Tapered roller	558.8	736.6	104.775	119
220TS625	Tapered roller	558.8	901.573	134.938	298
225TS706	Tapered roller	571.5	812.8	155.575	254
230TS822	Tapered roller	584.2	709.613	58.738	44
230TS655	Tapered roller	584.2	901.7	150.02	335
237TS753	Tapered roller	602.945	787.4	93.663	115
237TS773	Tapered roller	603.25	787.4	93.663	114
239TS763	Tapered roller	608.635	787.4	93.663	114
239TS773	Tapered roller	609.346	787.4	93.663	110
239TS803	Tapered roller	609.397	762	95.25	93
240TS803	Tapered roller	609.6	762	95.25	93
240TS783	Tapered roller	609.6	774.7	85.725	86
240TS773	Tapered roller	609.6	787.4	93.663	109
240TS753	Tapered roller	609.6	812.8	82.55	110
250TS687	Tapered roller	635	933.45	179.388	392
259TS813	Tapered roller	660.235	812.8	95.25	100
260TS813	Tapered roller	660.4	812.8	95.25	99
260TS773	Tapered roller	660.4	854.075	85.725	120
260TS763	Tapered roller	660.4	854.923	85.113	112
260TS705	Tapered roller	660.4	939.8	136.525	266
265TS842	Tapered roller	673.1	793.75	66.675	53
265TS707	Tapered roller	673.1	965.2	185.738	421
267TS755	Tapered roller	679.45	901.7	142.875	238
268TS707	Tapered roller	682.625	965.2	185.738	409
270TS783	Tapered roller	685.8	876.3	93.663	134
275TS852	Tapered roller	698.5	825.5	63.5	55
280TS773	Tapered roller	711.2	914.4	85.725	132
285TS793	Tapered roller	723.9	914.4	84.138	122
295TS783	Tapered roller	749.3	965.2	93.663	153
295TS756	Tapered roller	749.3	990.6	159.499	317
300TS853	Tapered roller	762	889	88.9	88
300TS793	Tapered roller	762	965.2	93.663	145
305TS803	Tapered roller	774.7	965.2	93.663	135
325TS793	Tapered roller	825.5	1041.4	93.663	174
329TS803	Tapered roller	836.613	1041.4	93.663	164
330TS803	Tapered roller	838.2	1041.4	93.663	162
337TS784	Tapered roller	857.25	1092.2	120.65	251
385TS862	Tapered roller	977.9	1130.3	66.675	100
399TS804	Tapered roller	1014.413	1270	101.6	271
400TS804	Tapered roller	1016	1270	101.6	269
418TS872	Tapered roller	1063.625	1219.2	65.088	107
420TS872	Tapered roller	1066.8	1219.2	65.088	104
420TS803	Tapered roller	1066.8	1320.8	95.25	267
430TS823	Tapered roller	1092.2	1320.8	95.25	236
455TS804	Tapered roller	1155.7	1435.1	120.65	431

All figures above are transcribed from the supplied catalog in its stated units. The catalog includes further ratings and fitting data; request full technical review before selecting a replacement.

04 · TECHNICAL ASSESSMENT

What HSN Checks for a Replacement Proposal

The original series provides a starting point. A proposal needs the complete bearing and equipment requirements.

Original identification

Complete model, suffixes, catalog entry, drawing or bearing photographs.

Geometry and installation

Bore, OD, width, “F” dimension where applicable, fillets, shaft and housing fits.

Internal structure

Rows, ring arrangement, cage, clearance, lubrication and sealing.

Operating conditions

Loads and direction, speed, shock, temperature and contamination.

Thrust or rollneck settings

Hook shank dimensions, plate design, spacer, end play or preload where relevant.

Agreed inspection

Applicable drawings, standards, measured items and acceptance criteria before shipment.

This independent HSN guide summarizes the supplied American Roller Bearing catalog. Brand names and original specifications help identify the customer’s existing product; they do not imply authorization, guaranteed interchangeability or availability of every model.

REQUEST AN ASSESSMENT

Have an American Roller Bearing Model?

Send the complete designation, quantity, application and operating conditions. Include an original drawing, catalog entry, old-bearing photos or sample measurements for a stock or custom assessment.

Submit Your Bearing Part Number → Send a Drawing or Sample →
