Scheerer Bearings: Types, Series and Model Data
Use the complete Scheerer bearing designation and catalog dimensions to identify the original product. HSN can review a stock or custom alternative after confirming the structure, application and inspection requirements.

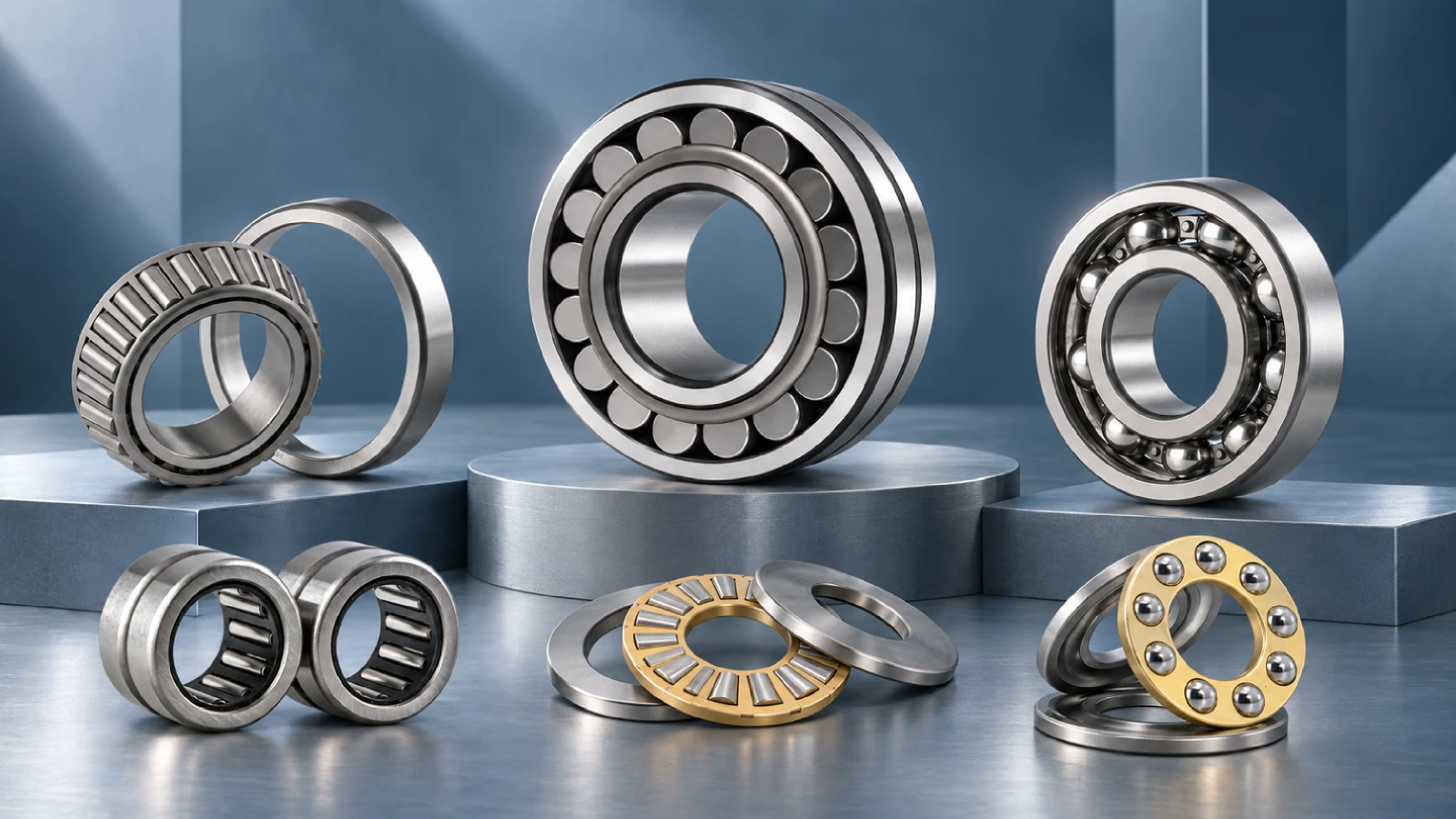

Which Scheerer Bearing Type Do You Have?
Cylindrical Roller
Single-row, full-complement and double-row arrangements, including different locating-ring constructions.
Spherical Roller
Includes a shaker-screen series; confirm internal design, clearance and vibration duty.
Ball Bearings
Deep groove, angular contact, thin-section and four-point contact families appear in the catalog.
Roller Thrust
Cylindrical, self-aligning and crane-hook thrust styles; verify plate construction and load direction.
Ball Thrust
Single-direction and other thrust-ball configurations are listed separately from roller thrust designs.
Special Designs
The catalog also refers to large-diameter, combination, slewing and application-specific designs; submit a drawing when the code is incomplete.
Series and Configuration Matter
Single-row cylindrical
N / NU / NF / NJ / NUP + 1000, 1900, 2000, 2200, 2300, 2900 or 3000
Check the complete designation, ring and flange arrangement, cage and clearance. The index places these families across multiple tables rather than treating every prefix as the same bearing.
Cross-referenced cylindrical designs
RF · RJ · RN · RP · RR · RT · RU / ML · MCS · MU · MUC
The catalog’s cross-reference index includes codes associated with several other manufacturers, including Rollway. An indexed cross reference is a search aid; confirm the complete variant and dimensions before proposing interchange.
Spherical and ball
223…-EMSF-800 / 6000 · 6200 · 6300 / QJ
The 223… shaker-screen entries are spherical roller bearings. Ball-bearing families include different contact arrangements and must be checked separately.
Thrust
TP · TR · CT · WCT / 81100 · 81200 / 51100 · 51200
TP is cylindrical roller thrust; TR is self-aligning roller thrust. Crane-hook and ball-thrust constructions have distinct tables and mounting details.
Keep the Full Designation
Provide the complete bearing number, including all prefixes and suffixes, to ensure accurate identification and replacement assessment.
Representative Scheerer Model Dimensions
This selection illustrates representative Scheerer bearing models and dimensional data from the original catalog. The values are original-brand reference data, not specifications for an HSN alternative or a complete model database.
| Bearing Number | Type | Bore d (inch) | Bore d (mm) | Outside D (inch) | Outside D (mm) | Width B (inch) | Width B (mm) |
|---|---|---|---|---|---|---|---|
| XLRI-5-C | Cylindrical roller | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLRI-5 1/8-C | Cylindrical roller | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 1/4-C | Cylindrical roller | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 3/8-C | Cylindrical roller | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 1/2-C | Cylindrical roller | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 5/8-C | Cylindrical roller | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 3/4-C | Cylindrical roller | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 7/8-C | Cylindrical roller | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6-C | Cylindrical roller | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6 1/4-C | Cylindrical roller | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLRI-6 1/2-C | Cylindrical roller | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLRI-6 3/4-C | Cylindrical roller | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLRI-7-C | Cylindrical roller | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLRI-7 1/4-C | Cylindrical roller | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLRI-7 1/2-C | Cylindrical roller | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLRI-7 3/4-C | Cylindrical roller | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLRI-8-C | Cylindrical roller | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLRI-8 1/4-C | Cylindrical roller | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLRI-8 1/2-C | Cylindrical roller | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLRI-8 3/4-C | Cylindrical roller | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLRI-9-C | Cylindrical roller | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLRI-9 1/2-C | Cylindrical roller | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLRI-10-C | Cylindrical roller | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLRI-10 1/2-C | Cylindrical roller | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLRI-11-C | Cylindrical roller | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLRI-11 1/2-C | Cylindrical roller | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLRI-12-C | Cylindrical roller | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLRI-12 1/2-C | Cylindrical roller | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLRI-13-C | Cylindrical roller | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLRI-13 1/2-C | Cylindrical roller | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLRI-14-C | Cylindrical roller | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLRI-14 1/2-C | Cylindrical roller | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLRI-15-C | Cylindrical roller | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLRI-16-C | Cylindrical roller | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLRI-17-C | Cylindrical roller | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLRI-18-C | Cylindrical roller | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLRI-24-C | Cylindrical roller | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| LRI-3 1/2-C | Cylindrical roller | 3.5 | 88.9 | 6.5 | 165.1 | 1.125 | 28.575 |
| LRI-3 3/4-C | Cylindrical roller | 3.75 | 95.25 | 6.75 | 171.45 | 1.125 | 28.575 |
| LRI-4-C | Cylindrical roller | 4 | 101.6 | 7.25 | 184.15 | 1.25 | 31.75 |
| LRI-4 1/4-C | Cylindrical roller | 4.25 | 107.95 | 7.5 | 190.5 | 1.25 | 31.75 |
| LRI-4 1/2-C | Cylindrical roller | 4.5 | 114.3 | 8 | 203.2 | 1.312 | 33.325 |
| LRI-4 3/4-C | Cylindrical roller | 4.75 | 120.65 | 8.25 | 209.55 | 1.312 | 33.325 |
| LRI-5-C | Cylindrical roller | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LRI-5 1/2-C | Cylindrical roller | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LRI-6-C | Cylindrical roller | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LRI-6 1/2-C | Cylindrical roller | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LRI-7-C | Cylindrical roller | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LRI-7 1/2-C | Cylindrical roller | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LRI-8-C | Cylindrical roller | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LRI-8 1/2-C | Cylindrical roller | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LRI-9-C | Cylindrical roller | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LRI-9 1/2-C | Cylindrical roller | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LRI-10-C | Cylindrical roller | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LRI-10 1/2-C | Cylindrical roller | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LRI-11-C | Cylindrical roller | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LRI-11 1/2-C | Cylindrical roller | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LRI-12-C | Cylindrical roller | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LRI-12 1/2-C | Cylindrical roller | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LRI-13-C | Cylindrical roller | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LRI-13 1/2-C | Cylindrical roller | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LRI-14-C | Cylindrical roller | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LRI-14 1/2-C | Cylindrical roller | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LRI-15-C | Cylindrical roller | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LRI-16-C | Cylindrical roller | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| LRI-17-C | Cylindrical roller | 17 | 431.8 | 25 | 635 | 3.5 | 88.9 |
| LRI-18-C | Cylindrical roller | 18 | 457.2 | 27 | 685.8 | 3.5 | 88.9 |
| LRI-18 1/2-C | Cylindrical roller | 18.5 | 469.9 | 27.5 | 698.5 | 3.5 | 88.9 |
| MRI-3-C | Cylindrical roller | 3 | 76.2 | 7 | 177.8 | 1.563 | 39.688 |
| MRI-3 1/4-C | Cylindrical roller | 3.25 | 82.55 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 3/8-C | Cylindrical roller | 3.375 | 85.725 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 1/2-C | Cylindrical roller | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MRI-4-C | Cylindrical roller | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MRI-4 1/4-C | Cylindrical roller | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MRI-4 1/2-C | Cylindrical roller | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MRI-5-C | Cylindrical roller | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MRI-5 1/2-C | Cylindrical roller | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MRI-6-C | Cylindrical roller | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MRI-6 1/2-C | Cylindrical roller | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MRI-7-C | Cylindrical roller | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MRI-7 1/2-C | Cylindrical roller | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MRI-8-C | Cylindrical roller | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MRI-8 1/2-C | Cylindrical roller | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MRI-9-C | Cylindrical roller | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MRI-9 1/2-C | Cylindrical roller | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MRI-10-C | Cylindrical roller | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MRI-10 1/2-C | Cylindrical roller | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MRI-11-C | Cylindrical roller | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MRI-11 1/2-C | Cylindrical roller | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MRI-12-C | Cylindrical roller | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| MRI-12 1/2-C | Cylindrical roller | 12.5 | 317.5 | 22.5 | 571.5 | 4 | 101.6 |
| MRI-13-C | Cylindrical roller | 13 | 330.2 | 23.5 | 596.9 | 4 | 101.6 |
| MRI-13 1/2-C | Cylindrical roller | 13.5 | 342.9 | 24.5 | 622.3 | 4.25 | 107.95 |
| MRI-14-C | Cylindrical roller | 14 | 355.6 | 25 | 635 | 4.25 | 107.95 |
| MRI-14 1/2-C | Cylindrical roller | 14.5 | 368.3 | 26 | 660.4 | 4.5 | 114.3 |
| MRI-15-C | Cylindrical roller | 15 | 381 | 26.5 | 673.1 | 4.5 | 114.3 |
| MRI-15 1/2-C | Cylindrical roller | 15.5 | 393.7 | 27.5 | 698.5 | 4.75 | 120.65 |
| MRI-16-C | Cylindrical roller | 16 | 406.4 | 28 | 711.2 | 4.75 | 120.65 |
| MRI-16 1/2-C | Cylindrical roller | 16.5 | 419.1 | 29 | 736.6 | 5 | 127 |
| MRI-17-C | Cylindrical roller | 17 | 431.8 | 29.5 | 749.3 | 5 | 127 |
| MRI-17 1/2-C | Cylindrical roller | 17.5 | 444.5 | 30.5 | 774.7 | 5.25 | 133.35 |
| MRI-18 | Cylindrical roller | 18 | 457.2 | 31 | 787.4 | 5.25 | 133.35 |
| MRI-18 1/2-C | Cylindrical roller | 18.5 | 469.9 | 32 | 812.8 | 5.5 | 139.7 |
| MRI-19-C | Cylindrical roller | 19 | 482.6 | 32.5 | 825.5 | 5.5 | 139.7 |
| MRI-19 1/2-C | Cylindrical roller | 19.5 | 495.3 | 33.5 | 850.9 | 5.75 | 146.05 |
| XLRI-5-F | Cylindrical roller | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLRI-5 1/8-F | Cylindrical roller | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 1/4-F | Cylindrical roller | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 3/8-F | Cylindrical roller | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 1/2-F | Cylindrical roller | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 5/8-F | Cylindrical roller | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 3/4-F | Cylindrical roller | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 7/8-F | Cylindrical roller | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6-F | Cylindrical roller | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6 1/4-F | Cylindrical roller | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLRI-6 1/2-F | Cylindrical roller | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLRI-6 3/4-F | Cylindrical roller | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLRI-7-F | Cylindrical roller | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLRI-7 1/4-F | Cylindrical roller | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLRI-7 1/2-F | Cylindrical roller | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLRI-7 3/4-F | Cylindrical roller | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLRI-8-F | Cylindrical roller | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLRI-8 1/4-F | Cylindrical roller | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLRI-8 1/2-F | Cylindrical roller | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLRI-8 3/4-F | Cylindrical roller | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLRI-9-F | Cylindrical roller | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLRI-9 1/2-F | Cylindrical roller | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLRI-10-F | Cylindrical roller | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLRI-10 1/2-F | Cylindrical roller | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLRI-11-F | Cylindrical roller | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLRI-11 1/2-F | Cylindrical roller | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLRI-12-F | Cylindrical roller | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLRI-12 1/2-F | Cylindrical roller | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLRI-13-F | Cylindrical roller | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLRI-13 1/2-F | Cylindrical roller | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLRI-14-F | Cylindrical roller | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLRI-14 1/2-F | Cylindrical roller | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLRI-15-F | Cylindrical roller | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLRI-16-F | Cylindrical roller | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLRI-17-F | Cylindrical roller | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLRI-18-F | Cylindrical roller | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLRI-24-F | Cylindrical roller | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| LRI-3 1/2-F | Cylindrical roller | 3.5 | 88.9 | 6.5 | 165.1 | 1.125 | 28.575 |
| LRI-3 3/4-F | Cylindrical roller | 3.75 | 95.25 | 6.75 | 171.45 | 1.125 | 28.575 |
| LRI-4-F | Cylindrical roller | 4 | 101.6 | 7.25 | 184.15 | 1.25 | 31.75 |
| LRI-4 1/4-F | Cylindrical roller | 4.25 | 107.95 | 7.5 | 190.5 | 1.25 | 31.75 |
| LRI-4 1/2-F | Cylindrical roller | 4.5 | 114.3 | 8 | 203.2 | 1.312 | 33.325 |
| LRI-4 3/4-F | Cylindrical roller | 4.75 | 120.65 | 8.25 | 209.55 | 1.312 | 33.325 |
| LRI-5-F | Cylindrical roller | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LRI-5 1/2-F | Cylindrical roller | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LRI-6-F | Cylindrical roller | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LRI-6 1/2-F | Cylindrical roller | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LRI-7-F | Cylindrical roller | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LRI-7 1/2-F | Cylindrical roller | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LRI-8-F | Cylindrical roller | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LRI-8 1/2-F | Cylindrical roller | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LRI-9-F | Cylindrical roller | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LRI-9 1/2-F | Cylindrical roller | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LRI-10-F | Cylindrical roller | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LRI-10 1/2-F | Cylindrical roller | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LRI-11-F | Cylindrical roller | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LRI-11 1/2-F | Cylindrical roller | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LRI-12-F | Cylindrical roller | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LRI-12 1/2-F | Cylindrical roller | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LRI-13-F | Cylindrical roller | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LRI-13 1/2-F | Cylindrical roller | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LRI-14-F | Cylindrical roller | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LRI-14 1/2-F | Cylindrical roller | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LRI-15-F | Cylindrical roller | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LRI-16-F | Cylindrical roller | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| LRI-17-F | Cylindrical roller | 17 | 431.8 | 25 | 635 | 3.5 | 88.9 |
| LRI-18-F | Cylindrical roller | 18 | 457.2 | 27 | 685.8 | 3.5 | 88.9 |
| LRI-18 1/2-F | Cylindrical roller | 18.5 | 469.9 | 27.5 | 698.5 | 3.5 | 88.9 |
| MRI-3-F | Cylindrical roller | 3 | 76.2 | 7 | 177.8 | 1.563 | 39.688 |
| MRI-3 1/4-F | Cylindrical roller | 3.25 | 82.55 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 3/8-F | Cylindrical roller | 3.375 | 85.725 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 1/2-F | Cylindrical roller | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MRI-4-F | Cylindrical roller | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MRI-4 1/4-F | Cylindrical roller | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MRI-4 1/2-F | Cylindrical roller | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MRI-5-F | Cylindrical roller | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MRI-5 1/2-F | Cylindrical roller | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MRI-6-F | Cylindrical roller | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MRI-6 1/2-F | Cylindrical roller | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MRI-7-F | Cylindrical roller | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MRI-7 1/2-F | Cylindrical roller | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MRI-8-F | Cylindrical roller | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MRI-8 1/2-F | Cylindrical roller | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MRI-9-F | Cylindrical roller | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MRI-9 1/2-F | Cylindrical roller | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MRI-10-F | Cylindrical roller | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MRI-10 1/2-F | Cylindrical roller | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MRI-11-F | Cylindrical roller | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MRI-11 1/2-F | Cylindrical roller | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MRI-12-F | Cylindrical roller | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| MRI-12 1/2-F | Cylindrical roller | 12.5 | 317.5 | 22.5 | 571.5 | 4 | 101.6 |
| MRI-13-F | Cylindrical roller | 13 | 330.2 | 23.5 | 596.9 | 4 | 101.6 |
| MRI-13 1/2-F | Cylindrical roller | 13.5 | 342.9 | 24.5 | 622.3 | 4.25 | 107.95 |
| MRI-14-F | Cylindrical roller | 14 | 355.6 | 25 | 635 | 4.25 | 107.95 |
| MRI-14 1/2-F | Cylindrical roller | 14.5 | 368.3 | 26 | 660.4 | 4.5 | 114.3 |
| MRI-15-F | Cylindrical roller | 15 | 381 | 26.5 | 673.1 | 4.5 | 114.3 |
| MRI-15 1/2-F | Cylindrical roller | 15.5 | 393.7 | 27.5 | 698.5 | 4.75 | 120.65 |
| MRI-16-F | Cylindrical roller | 16 | 406.4 | 28 | 711.2 | 4.75 | 120.65 |
| MRI-16 1/2-F | Cylindrical roller | 16.5 | 419.1 | 29 | 736.6 | 5 | 127 |
| MRI-17-F | Cylindrical roller | 17 | 431.8 | 29.5 | 749.3 | 5 | 127 |
| MRI-17 1/2-F | Cylindrical roller | 17.5 | 444.5 | 30.5 | 774.7 | 5.25 | 133.35 |
| MRI-18-F | Cylindrical roller | 18 | 457.2 | 31 | 787.4 | 5.25 | 133.35 |
| MRI-18 1/2-F | Cylindrical roller | 18.5 | 469.9 | 32 | 812.8 | 5.5 | 139.7 |
| MRI-19-F | Cylindrical roller | 19 | 482.6 | 32.5 | 825.5 | 5.5 | 139.7 |
| MRI-19 1/2-F | Cylindrical roller | 19.5 | 495.3 | 33.5 | 850.9 | 5.75 | 146.05 |
| XLRI-5-J | Cylindrical roller | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLRI-5 1/8-J | Cylindrical roller | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 1/4-J | Cylindrical roller | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 3/8-J | Cylindrical roller | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 1/2-J | Cylindrical roller | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 5/8-J | Cylindrical roller | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 3/4-J | Cylindrical roller | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 7/8-J | Cylindrical roller | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6-J | Cylindrical roller | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6 1/4-J | Cylindrical roller | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLRI-6 1/2-J | Cylindrical roller | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLRI-6 3/4-J | Cylindrical roller | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLRI-7-J | Cylindrical roller | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLRI-7 1/4-J | Cylindrical roller | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLRI-7 1/2-J | Cylindrical roller | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLRI-7 3/4-J | Cylindrical roller | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLRI-8-J | Cylindrical roller | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLRI-8 1/4-J | Cylindrical roller | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLRI-8 1/2-J | Cylindrical roller | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLRI-8 3/4-J | Cylindrical roller | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLRI-9-J | Cylindrical roller | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLRI-9 1/2-J | Cylindrical roller | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLRI-10-J | Cylindrical roller | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLRI-10 1/2-J | Cylindrical roller | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLRI-11-J | Cylindrical roller | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLRI-11 1/2-J | Cylindrical roller | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLRI-12-J | Cylindrical roller | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLRI-12 1/2-J | Cylindrical roller | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLRI-13-J | Cylindrical roller | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLRI-13 1/2-J | Cylindrical roller | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLRI-14-J | Cylindrical roller | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLRI-14 1/2-J | Cylindrical roller | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLRI-15-J | Cylindrical roller | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLRI-16-J | Cylindrical roller | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLRI-17-J | Cylindrical roller | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLRI-18-J | Cylindrical roller | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLRI-24-J | Cylindrical roller | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| LRI-3 1/2-J | Cylindrical roller | 3.5 | 88.9 | 6.5 | 165.1 | 1.125 | 28.575 |
| LRI-3 3/4-J | Cylindrical roller | 3.75 | 95.25 | 6.75 | 171.45 | 1.125 | 28.575 |
| LRI-4-J | Cylindrical roller | 4 | 101.6 | 7.25 | 184.15 | 1.25 | 31.75 |
| LRI-4 1/4-J | Cylindrical roller | 4.25 | 107.95 | 7.5 | 190.5 | 1.25 | 31.75 |
| LRI-4 1/2-J | Cylindrical roller | 4.5 | 114.3 | 8 | 203.2 | 1.312 | 33.325 |
| LRI-4 3/4-J | Cylindrical roller | 4.75 | 120.65 | 8.25 | 209.55 | 1.312 | 33.325 |
| LRI-5-J | Cylindrical roller | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LRI-5 1/2-J | Cylindrical roller | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LRI-6-J | Cylindrical roller | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LRI-6 1/2-J | Cylindrical roller | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LRI-7-J | Cylindrical roller | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LRI-7 1/2-J | Cylindrical roller | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LRI-8-J | Cylindrical roller | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LRI-8 1/2-J | Cylindrical roller | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LRI-9-J | Cylindrical roller | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LRI-9 1/2-J | Cylindrical roller | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LRI-10-J | Cylindrical roller | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LRI-10 1/2-J | Cylindrical roller | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LRI-11-J | Cylindrical roller | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LRI-11 1/2-J | Cylindrical roller | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LRI-12-J | Cylindrical roller | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LRI-12 1/2-J | Cylindrical roller | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LRI-13-J | Cylindrical roller | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LRI-13 1/2-J | Cylindrical roller | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LRI-14-J | Cylindrical roller | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LRI-14 1/2-J | Cylindrical roller | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LRI-15-J | Cylindrical roller | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LRI-16-J | Cylindrical roller | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| LRI-17-J | Cylindrical roller | 17 | 431.8 | 25 | 635 | 3.5 | 88.9 |
| LRI-18-J | Cylindrical roller | 18 | 457.2 | 27 | 685.8 | 3.5 | 88.9 |
| LRI-18 1/2-J | Cylindrical roller | 18.5 | 469.9 | 27.5 | 698.5 | 3.5 | 88.9 |
| MRI-3-J | Cylindrical roller | 3 | 76.2 | 7 | 177.8 | 1.563 | 39.688 |
| MRI-3 1/4-J | Cylindrical roller | 3.25 | 82.55 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 3/8-J | Cylindrical roller | 3.375 | 85.725 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 1/2-J | Cylindrical roller | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MRI-4-J | Cylindrical roller | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MRI-4 1/4-J | Cylindrical roller | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MRI-4 1/2-J | Cylindrical roller | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MRI-5-J | Cylindrical roller | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MRI-5 1/2-J | Cylindrical roller | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MRI-6-J | Cylindrical roller | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MRI-6 1/2-J | Cylindrical roller | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MRI-7-J | Cylindrical roller | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MRI-7 1/2-J | Cylindrical roller | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MRI-8-J | Cylindrical roller | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MRI-8 1/2-J | Cylindrical roller | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MRI-9-J | Cylindrical roller | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MRI-9 1/2-J | Cylindrical roller | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MRI-10-J | Cylindrical roller | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MRI-10 1/2-J | Cylindrical roller | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MRI-11-J | Cylindrical roller | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MRI-11 1/2-J | Cylindrical roller | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MRI-12-J | Cylindrical roller | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| MRI-12 1/2-J | Cylindrical roller | 12.5 | 317.5 | 22.5 | 571.5 | 4 | 101.6 |
| MRI-13-J | Cylindrical roller | 13 | 330.2 | 23.5 | 596.9 | 4 | 101.6 |
| MRI-13 1/2-J | Cylindrical roller | 13.5 | 342.9 | 24.5 | 622.3 | 4.25 | 107.95 |
| MRI-14-J | Cylindrical roller | 14 | 355.6 | 25 | 635 | 4.25 | 107.95 |
| MRI-14 1/2-J | Cylindrical roller | 14.5 | 368.3 | 26 | 660.4 | 4.5 | 114.3 |
| MRI-15-J | Cylindrical roller | 15 | 381 | 26.5 | 673.1 | 4.5 | 114.3 |
| MRI-15 1/2-J | Cylindrical roller | 15.5 | 393.7 | 27.5 | 698.5 | 4.75 | 120.65 |
| MRI-16-J | Cylindrical roller | 16 | 406.4 | 28 | 711.2 | 4.75 | 120.65 |
| MRI-16 1/2-J | Cylindrical roller | 16.5 | 419.1 | 29 | 736.6 | 5 | 127 |
| MRI-17-J | Cylindrical roller | 17 | 431.8 | 29.5 | 749.3 | 5 | 127 |
| MRI-17 1/2-J | Cylindrical roller | 17.5 | 444.5 | 30.5 | 774.7 | 5.25 | 133.35 |
| MRI-18-J | Cylindrical roller | 18 | 457.2 | 31 | 787.4 | 5.25 | 133.35 |
| MRI-18 1/2-J | Cylindrical roller | 18.5 | 469.9 | 32 | 812.8 | 5.5 | 139.7 |
| MRI-19-J | Cylindrical roller | 19 | 482.6 | 32.5 | 825.5 | 5.5 | 139.7 |
| MRI-19 1/2-J | Cylindrical roller | 19.5 | 495.3 | 33.5 | 850.9 | 5.75 | 146.05 |
| XLRI-5-U | Cylindrical roller | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLRI-5 1/8-U | Cylindrical roller | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 1/4-U | Cylindrical roller | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 3/8-U | Cylindrical roller | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 1/2-U | Cylindrical roller | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 5/8-U | Cylindrical roller | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 3/4-U | Cylindrical roller | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 7/8-U | Cylindrical roller | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6-U | Cylindrical roller | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6 1/4-U | Cylindrical roller | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLRI-6 1/2-U | Cylindrical roller | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLRI-6 3/4-U | Cylindrical roller | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLRI-7-U | Cylindrical roller | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLRI-7 1/4-U | Cylindrical roller | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLRI-7 1/2-U | Cylindrical roller | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLRI-7 3/4-U | Cylindrical roller | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLRI-8-U | Cylindrical roller | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLRI-8 1/4-U | Cylindrical roller | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLRI-8 1/2-U | Cylindrical roller | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLRI-8 3/4-U | Cylindrical roller | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLRI-9-U | Cylindrical roller | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLRI-9 1/2-U | Cylindrical roller | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLRI-10-U | Cylindrical roller | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLRI-10 1/2-U | Cylindrical roller | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLRI-11-U | Cylindrical roller | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLRI-11 1/2-U | Cylindrical roller | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLRI-12-U | Cylindrical roller | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLRI-12 1/2-U | Cylindrical roller | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLRI-13-U | Cylindrical roller | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLRI-13 1/2-U | Cylindrical roller | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLRI-14-U | Cylindrical roller | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLRI-14 1/2-U | Cylindrical roller | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLRI-15-U | Cylindrical roller | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLRI-16-U | Cylindrical roller | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLRI-17-U | Cylindrical roller | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLRI-18-U | Cylindrical roller | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLRI-24-U | Cylindrical roller | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| LRI-3 1/2-U | Cylindrical roller | 3.5 | 88.9 | 6.5 | 165.1 | 1.125 | 28.575 |
| LRI-3 3/4-U | Cylindrical roller | 3.75 | 95.25 | 6.75 | 171.45 | 1.125 | 28.575 |
| LRI-4-U | Cylindrical roller | 4 | 101.6 | 7.25 | 184.15 | 1.25 | 31.75 |
| LRI-4 1/4-U | Cylindrical roller | 4.25 | 107.95 | 7.5 | 190.5 | 1.25 | 31.75 |
| LRI-4 1/2-U | Cylindrical roller | 4.5 | 114.3 | 8 | 203.2 | 1.312 | 33.325 |
| LRI-4 3/4-U | Cylindrical roller | 4.75 | 120.65 | 8.25 | 209.55 | 1.312 | 33.325 |
| LRI-5-U | Cylindrical roller | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LRI-5 1/2-U | Cylindrical roller | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LRI-6-U | Cylindrical roller | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LRI-6 1/2-U | Cylindrical roller | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LRI-7-U | Cylindrical roller | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LRI-7 1/2-U | Cylindrical roller | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LRI-8-U | Cylindrical roller | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LRI-8 1/2-U | Cylindrical roller | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LRI-9-U | Cylindrical roller | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LRI-9 1/2-U | Cylindrical roller | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LRI-10-U | Cylindrical roller | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LRI-10 1/2-U | Cylindrical roller | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LRI-11-U | Cylindrical roller | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LRI-11 1/2-U | Cylindrical roller | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LRI-12-U | Cylindrical roller | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LRI-12 1/2-U | Cylindrical roller | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LRI-13-U | Cylindrical roller | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LRI-13 1/2-U | Cylindrical roller | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LRI-14-U | Cylindrical roller | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LRI-14 1/2-U | Cylindrical roller | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LRI-15-U | Cylindrical roller | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LRI-16-U | Cylindrical roller | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| LRI-17-U | Cylindrical roller | 17 | 431.8 | 25 | 635 | 3.5 | 88.9 |
| LRI-18-U | Cylindrical roller | 18 | 457.2 | 27 | 685.8 | 3.5 | 88.9 |
| LRI-18 1/2-U | Cylindrical roller | 18.5 | 469.9 | 27.5 | 698.5 | 3.5 | 88.9 |
| MRI-3-N | Cylindrical roller | 3 | 76.2 | 7 | 177.8 | 1.563 | 39.688 |
| MRI-3 1/4-N | Cylindrical roller | 3.25 | 82.55 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 3/8-N | Cylindrical roller | 3.375 | 85.725 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 1/2-N | Cylindrical roller | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MRI-4-N | Cylindrical roller | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MRI-4 1/4-N | Cylindrical roller | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MRI-4 1/2-N | Cylindrical roller | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MRI-5-N | Cylindrical roller | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MRI-5 1/2-N | Cylindrical roller | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MRI-6-N | Cylindrical roller | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MRI-6 1/2-N | Cylindrical roller | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MRI-7-N | Cylindrical roller | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MRI-7 1/2-N | Cylindrical roller | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MRI-8-N | Cylindrical roller | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MRI-8 1/2-N | Cylindrical roller | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MRI-9-N | Cylindrical roller | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MRI-9 1/2-N | Cylindrical roller | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MRI-10-N | Cylindrical roller | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MRI-10 1/2-N | Cylindrical roller | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MRI-11-N | Cylindrical roller | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MRI-11 1/2-N | Cylindrical roller | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MRI-12-N | Cylindrical roller | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| MRI-12 1/2-N | Cylindrical roller | 12.5 | 317.5 | 22.5 | 571.5 | 4 | 101.6 |
| MRI-13-N | Cylindrical roller | 13 | 330.2 | 23.5 | 596.9 | 4 | 101.6 |
| MRI-13 1/2-N | Cylindrical roller | 13.5 | 342.9 | 24.5 | 622.3 | 4.25 | 107.95 |
| MRI-14-N | Cylindrical roller | 14 | 355.6 | 25 | 635 | 4.25 | 107.95 |
| MRI-14 1/2-N | Cylindrical roller | 14.5 | 368.3 | 26 | 660.4 | 4.5 | 114.3 |
| MRI-15-N | Cylindrical roller | 15 | 381 | 26.5 | 673.1 | 4.5 | 114.3 |
| MRI-15 1/2-N | Cylindrical roller | 15.5 | 393.7 | 27.5 | 698.5 | 4.75 | 120.65 |
| MRI-16-N | Cylindrical roller | 16 | 406.4 | 28 | 711.2 | 4.75 | 120.65 |
| MRI-16 1/2-N | Cylindrical roller | 16.5 | 419.1 | 29 | 736.6 | 5 | 127 |
| MRI-17-N | Cylindrical roller | 17 | 431.8 | 29.5 | 749.3 | 5 | 127 |
| MRI-17 1/2-N | Cylindrical roller | 17.5 | 444.5 | 30.5 | 774.7 | 5.25 | 133.35 |
| MRI-18-N | Cylindrical roller | 18 | 457.2 | 31 | 787.4 | 5.25 | 133.35 |
| MRI-18 1/2-N | Cylindrical roller | 18.5 | 469.9 | 32 | 812.8 | 5.5 | 139.7 |
| MRI-19-N | Cylindrical roller | 19 | 482.6 | 32.5 | 825.5 | 5.5 | 139.7 |
| MRI-19 1/2-N | Cylindrical roller | 19.5 | 495.3 | 33.5 | 850.9 | 5.75 | 146.05 |
| XLRI-5-N | Cylindrical roller | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLRI-5 1/8-N | Cylindrical roller | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 1/4-N | Cylindrical roller | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLRI-5 3/8-N | Cylindrical roller | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 1/2-N | Cylindrical roller | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLRI-5 5/8-N | Cylindrical roller | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 3/4-N | Cylindrical roller | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLRI-5 7/8-N | Cylindrical roller | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6-N | Cylindrical roller | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLRI-6 1/4-N | Cylindrical roller | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLRI-6 1/2-N | Cylindrical roller | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLRI-6 3/4-N | Cylindrical roller | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLRI-7-N | Cylindrical roller | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLRI-7 1/4-N | Cylindrical roller | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLRI-7 1/2-N | Cylindrical roller | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLRI-7 3/4-N | Cylindrical roller | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLRI-8-N | Cylindrical roller | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLRI-8 1/4-N | Cylindrical roller | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLRI-8 1/2-N | Cylindrical roller | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLRI-8 3/4-N | Cylindrical roller | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLRI-9-N | Cylindrical roller | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLRI-9 1/2-N | Cylindrical roller | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLRI-10-N | Cylindrical roller | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLRI-10 1/2-N | Cylindrical roller | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLRI-11-N | Cylindrical roller | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLRI-11 1/2-N | Cylindrical roller | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLRI-12-N | Cylindrical roller | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLRI-12 1/2-N | Cylindrical roller | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLRI-13-N | Cylindrical roller | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLRI-13 1/2-N | Cylindrical roller | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLRI-14-N | Cylindrical roller | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLRI-14 1/2-N | Cylindrical roller | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLRI-15-N | Cylindrical roller | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLRI-16-N | Cylindrical roller | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLRI-17-N | Cylindrical roller | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLRI-18-N | Cylindrical roller | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLRI-24-N | Cylindrical roller | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| LRI-3 1/2-N | Cylindrical roller | 3.5 | 88.9 | 6.5 | 165.1 | 1.125 | 28.575 |
| LRI-3 3/4-N | Cylindrical roller | 3.75 | 95.25 | 6.75 | 171.45 | 1.125 | 28.575 |
| LRI-4-N | Cylindrical roller | 4 | 101.6 | 7.25 | 184.15 | 1.25 | 31.75 |
| LRI-4 1/4-N | Cylindrical roller | 4.25 | 107.95 | 7.5 | 190.5 | 1.25 | 31.75 |
| LRI-4 1/2-N | Cylindrical roller | 4.5 | 114.3 | 8 | 203.2 | 1.312 | 33.325 |
| LRI-4 3/4-N | Cylindrical roller | 4.75 | 120.65 | 8.25 | 209.55 | 1.312 | 33.325 |
| LRI-5-N | Cylindrical roller | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LRI-5 1/2-N | Cylindrical roller | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LRI-6-N | Cylindrical roller | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LRI-6 1/2-N | Cylindrical roller | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LRI-7-N | Cylindrical roller | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LRI-7 1/2-N | Cylindrical roller | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LRI-8-N | Cylindrical roller | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LRI-8 1/2-N | Cylindrical roller | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LRI-9-N | Cylindrical roller | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LRI-9 1/2-N | Cylindrical roller | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LRI-10-N | Cylindrical roller | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LRI-10 1/2-N | Cylindrical roller | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LRI-11-N | Cylindrical roller | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LRI-11 1/2-N | Cylindrical roller | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LRI-12-N | Cylindrical roller | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LRI-12 1/2-N | Cylindrical roller | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LRI-13-N | Cylindrical roller | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LRI-13 1/2-N | Cylindrical roller | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LRI-14-N | Cylindrical roller | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LRI-14 1/2-N | Cylindrical roller | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LRI-15-N | Cylindrical roller | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LRI-16-N | Cylindrical roller | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| LRI-17-N | Cylindrical roller | 17 | 431.8 | 25 | 635 | 3.5 | 88.9 |
| LRI-18-N | Cylindrical roller | 18 | 457.2 | 27 | 685.8 | 3.5 | 88.9 |
| LRI-18 1/2-N | Cylindrical roller | 18.5 | 469.9 | 27.5 | 698.5 | 3.5 | 88.9 |
| MRI-3-U | Cylindrical roller | 3 | 76.2 | 7 | 177.8 | 1.563 | 39.688 |
| MRI-3 1/4-U | Cylindrical roller | 3.25 | 82.55 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 3/8-U | Cylindrical roller | 3.375 | 85.725 | 7.5 | 190.5 | 1.563 | 39.688 |
| MRI-3 1/2-U | Cylindrical roller | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MRI-4-U | Cylindrical roller | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MRI-4 1/4-U | Cylindrical roller | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MRI-4 1/2-U | Cylindrical roller | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MRI-5-U | Cylindrical roller | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MRI-5 1/2-U | Cylindrical roller | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MRI-6-U | Cylindrical roller | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MRI-6 1/2-U | Cylindrical roller | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MRI-7-U | Cylindrical roller | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MRI-7 1/2-U | Cylindrical roller | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MRI-8-U | Cylindrical roller | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MRI-8 1/2-U | Cylindrical roller | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MRI-9-U | Cylindrical roller | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MRI-9 1/2-U | Cylindrical roller | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MRI-10-U | Cylindrical roller | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MRI-10 1/2-U | Cylindrical roller | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MRI-11-U | Cylindrical roller | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MRI-11 1/2-U | Cylindrical roller | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MRI-12-U | Cylindrical roller | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| MRI-12 1/2-U | Cylindrical roller | 12.5 | 317.5 | 22.5 | 571.5 | 4 | 101.6 |
| MRI-13-U | Cylindrical roller | 13 | 330.2 | 23.5 | 596.9 | 4 | 101.6 |
| MRI-13 1/2-U | Cylindrical roller | 13.5 | 342.9 | 24.5 | 622.3 | 4.25 | 107.95 |
| MRI-14-U | Cylindrical roller | 14 | 355.6 | 25 | 635 | 4.25 | 107.95 |
| MRI-14 1/2-U | Cylindrical roller | 14.5 | 368.3 | 26 | 660.4 | 4.5 | 114.3 |
| MRI-15-U | Cylindrical roller | 15 | 381 | 26.5 | 673.1 | 4.5 | 114.3 |
| MRI-15 1/2-U | Cylindrical roller | 15.5 | 393.7 | 27.5 | 698.5 | 4.75 | 120.65 |
| MRI-16-U | Cylindrical roller | 16 | 406.4 | 28 | 711.2 | 4.75 | 120.65 |
| MRI-16 1/2-U | Cylindrical roller | 16.5 | 419.1 | 29 | 736.6 | 5 | 127 |
| MRI-17-U | Cylindrical roller | 17 | 431.8 | 29.5 | 749.3 | 5 | 127 |
| MRI-17 1/2-U | Cylindrical roller | 17.5 | 444.5 | 30.5 | 774.7 | 5.25 | 133.35 |
| MRI-18-U | Cylindrical roller | 18 | 457.2 | 31 | 787.4 | 5.25 | 133.35 |
| MRI-18 1/2-U | Cylindrical roller | 18.5 | 469.9 | 32 | 812.8 | 5.5 | 139.7 |
| MRI-19-U | Cylindrical roller | 19 | 482.6 | 32.5 | 825.5 | 5.5 | 139.7 |
| MRI-19 1/2-U | Cylindrical roller | 19.5 | 495.3 | 33.5 | 850.9 | 5.75 | 146.05 |
| 22308-EMSF-800 | Spherical · shaker screen | 40 | 1.5748 | 90 | 3.5433 | 33 | 1.2992 |
| 22309-EMSF-800 | Spherical · shaker screen | 45 | 1.7717 | 100 | 3.937 | 36 | 1.4173 |
| 22310-EMSF-800 | Spherical · shaker screen | 50 | 1.9685 | 110 | 4.3307 | 40 | 1.5748 |
| 22311-EMSF-800 | Spherical · shaker screen | 55 | 2.1654 | 120 | 4.7244 | 43 | 1.6929 |
| 22312-EMSF-800 | Spherical · shaker screen | 60 | 2.3622 | 130 | 5.1181 | 46 | 1.811 |
| 22313-EMSF-800 | Spherical · shaker screen | 65 | 2.5591 | 140 | 5.5118 | 48 | 1.8898 |
| 22314-EMSF-800 | Spherical · shaker screen | 70 | 2.7559 | 150 | 5.9055 | 51 | 2.0079 |
| 22315-EMSF-800 | Spherical · shaker screen | 75 | 2.9528 | 160 | 6.2992 | 55 | 2.1654 |
| 22316-EMSF-800 | Spherical · shaker screen | 80 | 3.1496 | 170 | 6.6929 | 58 | 2.2835 |
| 22317-EMSF-800 | Spherical · shaker screen | 85 | 3.3465 | 180 | 7.0866 | 60 | 2.3622 |
| 22318-EMSF-800 | Spherical · shaker screen | 90 | 3.5433 | 190 | 7.4803 | 64 | 2.5197 |
| 22319-EMSF-800 | Spherical · shaker screen | 95 | 3.7402 | 200 | 7.874 | 67 | 2.6378 |
| 22320-EMSF-800 | Spherical · shaker screen | 100 | 3.937 | 215 | 8.4646 | 73 | 2.874 |
| 22322-EMSF-800 | Spherical · shaker screen | 110 | 4.3307 | 240 | 9.4488 | 80 | 3.1496 |
| 22324-EMSF-800 | Spherical · shaker screen | 120 | 4.7244 | 260 | 10.2362 | 86 | 3.3858 |
| 22326-EMSF-800 | Spherical · shaker screen | 130 | 5.1181 | 280 | 11.0236 | 93 | 3.6614 |
| 22328-EMSF-800 | Spherical · shaker screen | 140 | 5.5118 | 300 | 11.811 | 102 | 4.0157 |
| 22330-EMSF-800 | Spherical · shaker screen | 150 | 5.9055 | 320 | 12.5984 | 108 | 4.252 |
| 22332-EMSF-800 | Spherical · shaker screen | 160 | 6.2992 | 340 | 13.3858 | 114 | 4.4882 |
| 22334-EMSF-800 | Spherical · shaker screen | 170 | 6.6929 | 360 | 14.1732 | 120 | 4.7244 |
| 22336-EMSF-800 | Spherical · shaker screen | 180 | 7.0866 | 380 | 14.9606 | 126 | 4.9606 |
| 22338-EMSF-800 | Spherical · shaker screen | 190 | 7.4803 | 400 | 15.748 | 132 | 5.1969 |
| 22340-EMSF-800 | Spherical · shaker screen | 200 | 7.874 | 420 | 16.5354 | 138 | 5.4331 |
| 22344-EMSF-800 | Spherical · shaker screen | 220 | 8.6614 | 460 | 18.1102 | 145 | 5.7087 |
| 22348-EMSF-800 | Spherical · shaker screen | 240 | 9.4488 | 500 | 19.685 | 155 | 6.1024 |
| 22352-EMSF-800 | Spherical · shaker screen | 260 | 10.2362 | 540 | 21.2598 | 165 | 6.4961 |
| 22356-EMSF-800 | Spherical · shaker screen | 280 | 11.0236 | 580 | 22.8346 | 175 | 6.8898 |
| 23318-EMSF-800 | Spherical · shaker screen | 90 | 3.5433 | 190 | 7.4803 | 73 | 2.874 |
| 23320-EMSF-800 | Spherical · shaker screen | 100 | 3.937 | 215 | 8.4646 | 82.6 | 3.252 |
| 23322-EMSF-800 | Spherical · shaker screen | 110 | 4.3307 | 240 | 9.4488 | 92.1 | 3.626 |
| 23324-EMSF-800 | Spherical · shaker screen | 120 | 4.7244 | 260 | 10.2362 | 106 | 4.1732 |
| 23326-EMSF-800 | Spherical · shaker screen | 130 | 5.1181 | 280 | 11.0236 | 112 | 4.4094 |
| 23328-EMSF-800 | Spherical · shaker screen | 140 | 5.5118 | 300 | 11.811 | 118 | 4.6457 |
| 23330-EMSF-800 | Spherical · shaker screen | 150 | 5.9055 | 320 | 12.5984 | 128 | 5.0394 |
| 23332-EMSF-800 | Spherical · shaker screen | 160 | 6.2992 | 340 | 13.3858 | 136 | 5.3543 |
| 23338-EMSF-800 | Spherical · shaker screen | 190 | 7.4803 | 400 | 15.748 | 155 | 6.1024 |
| 23340-EMSF-800 | Spherical · shaker screen | 200 | 7.874 | 420 | 16.5354 | 165 | 6.4961 |
| XLBH-5 | Radial Ball | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLBH-5 1/8 | Radial Ball | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLBH-5 1/4 | Radial Ball | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLBH-5 3/8 | Radial Ball | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLBH-5 1/2 | Radial Ball | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLBH-5 5/8 | Radial Ball | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLBH-5 3/4 | Radial Ball | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLBH-5 7/8 | Radial Ball | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLBH-6 | Radial Ball | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLBH-6 1/4 | Radial Ball | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLBH-6 1/2 | Radial Ball | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLBH-6 3/4 | Radial Ball | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLBH-7 | Radial Ball | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLBH-7 1/4 | Radial Ball | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLBH-7 1/2 | Radial Ball | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLBH-7 3/4 | Radial Ball | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLBH-8 | Radial Ball | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLBH-8 1/4 | Radial Ball | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLBH-8 1/2 | Radial Ball | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLBH-8 3/4 | Radial Ball | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLBH-9 | Radial Ball | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLBH-9 1/2 | Radial Ball | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLBH-10 | Radial Ball | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLBH-10 1/2 | Radial Ball | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLBH-11 | Radial Ball | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLBH-11 1/2 | Radial Ball | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLBH-12 | Radial Ball | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLBH-12 1/2 | Radial Ball | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLBH-13 | Radial Ball | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLBH-13 1/2 | Radial Ball | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLBH-14 | Radial Ball | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLBH-14 1/2 | Radial Ball | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLBH-15 | Radial Ball | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLBH-15 1/2 | Radial Ball | 15.5 | 393.7 | 20.5 | 520.7 | 2.5 | 63.5 |
| XLBH-16 | Radial Ball | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLBH-16 1/2 | Radial Ball | 16.5 | 419.1 | 22 | 558.8 | 2.75 | 69.85 |
| XLBH-17 | Radial Ball | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLBH-17 1/2 | Radial Ball | 17.5 | 444.5 | 23.5 | 596.9 | 3 | 76.2 |
| XLBH-18 | Radial Ball | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLBH-18 1/2 | Radial Ball | 18.5 | 469.9 | 24.5 | 622.3 | 3 | 76.2 |
| XLBH-19 | Radial Ball | 19 | 482.6 | 25.5 | 647.7 | 3.25 | 82.55 |
| XLBH-19 1/2 | Radial Ball | 19.5 | 495.3 | 26 | 660.4 | 3.25 | 82.55 |
| XLBH-20 | Radial Ball | 20 | 508 | 26.5 | 673.1 | 3.25 | 82.55 |
| XLBH-20 1/2 | Radial Ball | 20.5 | 520.7 | 27.5 | 698.5 | 3.5 | 88.9 |
| XLBH-21 | Radial Ball | 21 | 533.4 | 28 | 711.2 | 3.5 | 88.9 |
| XLBH-24 | Radial Ball | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| XLBH-24 1/2 | Radial Ball | 24.5 | 622.3 | 32 | 812.8 | 4 | 101.6 |
| XLBH-25 | Radial Ball | 25 | 635 | 35 | 889 | 4 | 101.6 |
| XLBH-30 | Radial Ball | 30 | 762 | 40 | 1016 | 4 | 101.6 |
| XLBH-40 | Radial Ball | 40 | 1016 | 50 | 1270 | 4 | 101.6 |
| LBH-5 | Radial Ball | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LBH-5 1/2 | Radial Ball | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LBH-6 | Radial Ball | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LBH-6 1/2 | Radial Ball | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LBH-7 | Radial Ball | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LBH-7 1/2 | Radial Ball | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LBH-8 | Radial Ball | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LBH-8 1/2 | Radial Ball | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LBH-9 | Radial Ball | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LBH-9 1/2 | Radial Ball | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LBH-10 | Radial Ball | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LBH-10 1/2 | Radial Ball | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LBH-11 | Radial Ball | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LBH-11 1/2 | Radial Ball | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LBH-12 | Radial Ball | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LBH-12 1/2 | Radial Ball | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LBH-13 | Radial Ball | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LBH-13 1/2 | Radial Ball | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LBH-14 | Radial Ball | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LBH-14 1/2 | Radial Ball | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LBH-15 | Radial Ball | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LBH-15 1/2 | Radial Ball | 15.5 | 393.7 | 23 | 584.2 | 3.25 | 82.55 |
| LBH-16 | Radial Ball | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| MBH-3 | Radial Ball | 3 | 76.2 | 7 | 177.8 | 1.562 | 39.675 |
| MBH-3 1/4 | Radial Ball | 3.25 | 82.55 | 7.5 | 190.5 | 1.562 | 39.675 |
| MBH-3 1/4 | Radial Ball | 3.375 | 85.725 | 7.5 | 190.5 | 1.562 | 39.675 |
| MBH-3 1/2 | Radial Ball | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MBH-3 3/4 | Radial Ball | 3.75 | 95.25 | 8.25 | 209.55 | 1.75 | 44.45 |
| MBH-4 | Radial Ball | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MBH-4 1/4 | Radial Ball | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MBH-4 1/2 | Radial Ball | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MBH-4 3/4 | Radial Ball | 4.75 | 120.65 | 10 | 254 | 2 | 50.8 |
| MBH-5 | Radial Ball | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MBH-5 1/2 | Radial Ball | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MBH-6 | Radial Ball | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MBH-6 1/2 | Radial Ball | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MBH-7 | Radial Ball | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MBH-7 1/2 | Radial Ball | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MBH-8 | Radial Ball | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MBH-8 1/2 | Radial Ball | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MBH-9 | Radial Ball | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MBH-9 1/2 | Radial Ball | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MBH-10 | Radial Ball | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MBH-10 1/2 | Radial Ball | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MBH-11 | Radial Ball | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MBH-11 1/2 | Radial Ball | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MBH-12 | Radial Ball | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| XLBA-5 | Radial Ball | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLBA-5 1/8 | Radial Ball | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLBA-5 1/4 | Radial Ball | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLBA-5 3/8 | Radial Ball | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLBA-5 1/2 | Radial Ball | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLBA-5 5/8 | Radial Ball | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLBA-5 3/4 | Radial Ball | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLBA-5 7/8 | Radial Ball | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLBA-6 | Radial Ball | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLBA-6 1/4 | Radial Ball | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLBA-6 1/2 | Radial Ball | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLBA-6 3/4 | Radial Ball | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLBA-7 | Radial Ball | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLBA-7 1/4 | Radial Ball | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLBA-7 1/2 | Radial Ball | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLBA-7 3/4 | Radial Ball | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLBA-8 | Radial Ball | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLBA-8 1/4 | Radial Ball | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLBA-8 1/2 | Radial Ball | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLBA-8 3/4 | Radial Ball | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLBA-9 | Radial Ball | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLBA-9 1/2 | Radial Ball | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLBA-10 | Radial Ball | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLBA-10 1/2 | Radial Ball | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLBA-11 | Radial Ball | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLBA-11 1/2 | Radial Ball | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLBA-12 | Radial Ball | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLBA-12 1/2 | Radial Ball | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLBA-13 | Radial Ball | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLBA-13 1/2 | Radial Ball | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLBA-14 | Radial Ball | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLBA-14 1/2 | Radial Ball | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLBA-15 | Radial Ball | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLBA-15 1/2 | Radial Ball | 15.5 | 393.7 | 20.5 | 520.7 | 2.5 | 63.5 |
| XLBA-16 | Radial Ball | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLBA-16 1/2 | Radial Ball | 16.5 | 419.1 | 22 | 558.8 | 2.75 | 69.85 |
| XLBA-17 | Radial Ball | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLBA-17 1/2 | Radial Ball | 17.5 | 444.5 | 23.5 | 596.9 | 3 | 76.2 |
| XLBA-18 | Radial Ball | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLBA-18 1/2 | Radial Ball | 18.5 | 469.9 | 24.5 | 622.3 | 3 | 76.2 |
| XLBA-19 | Radial Ball | 19 | 482.6 | 25.5 | 647.7 | 3.25 | 82.55 |
| XLBA-19 1/2 | Radial Ball | 19.5 | 495.3 | 26 | 660.4 | 3.25 | 82.55 |
| XLBA-20 | Radial Ball | 20 | 508 | 26.5 | 673.1 | 3.25 | 82.55 |
| XLBA-20 1/2 | Radial Ball | 20.5 | 520.7 | 27.5 | 698.5 | 3.5 | 88.9 |
| XLBA-21 | Radial Ball | 21 | 533.4 | 28 | 711.2 | 3.5 | 88.9 |
| XLBA-24 | Radial Ball | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| XLBA-24 1/2 | Radial Ball | 24.5 | 622.3 | 32 | 812.8 | 4 | 101.6 |
| XLBA-25 | Radial Ball | 25 | 635 | 35 | 889 | 4 | 101.6 |
| XLBA-30 | Radial Ball | 30 | 762 | 40 | 1016 | 4 | 101.6 |
| XLBA-40 | Radial Ball | 40 | 1016 | 50 | 1270 | 4 | 101.6 |
| LBA-5 | Radial Ball | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LBA-5 1/2 | Radial Ball | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LBA-6 | Radial Ball | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LBA-6 1/2 | Radial Ball | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LBA-7 | Radial Ball | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LBA-7 1/2 | Radial Ball | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LBA-8 | Radial Ball | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LBA-8 1/2 | Radial Ball | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LBA-9 | Radial Ball | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LBA-9 1/2 | Radial Ball | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LBA-10 | Radial Ball | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LBA-10 1/2 | Radial Ball | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LBA-11 | Radial Ball | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LBA-11 1/2 | Radial Ball | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LBA-12 | Radial Ball | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LBA-12 1/2 | Radial Ball | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LBA-13 | Radial Ball | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LBA-13 1/2 | Radial Ball | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LBA-14 | Radial Ball | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LBA-14 1/2 | Radial Ball | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LBA-15 | Radial Ball | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LBA-15 1/2 | Radial Ball | 15.5 | 393.7 | 23 | 584.2 | 3.25 | 82.55 |
| LBA-16 | Radial Ball | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| MBA-3 | Radial Ball | 3 | 76.2 | 7 | 177.8 | 1.562 | 39.675 |
| MBA-3 1/4 | Radial Ball | 3.25 | 82.55 | 7.5 | 190.5 | 1.562 | 39.675 |
| MBA-3 1/4 | Radial Ball | 3.375 | 85.725 | 7.5 | 190.5 | 1.562 | 39.675 |
| MBA-3 1/2 | Radial Ball | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MBA-3 3/4 | Radial Ball | 3.75 | 95.25 | 8.25 | 209.55 | 1.75 | 44.45 |
| MBA-4 | Radial Ball | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MBA-4 1/4 | Radial Ball | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MBA-4 1/2 | Radial Ball | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MBA-4 3/4 | Radial Ball | 4.75 | 120.65 | 10 | 254 | 2 | 50.8 |
| MBA-5 | Radial Ball | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MBA-5 1/2 | Radial Ball | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MBA-6 | Radial Ball | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MBA-6 1/2 | Radial Ball | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MBA-7 | Radial Ball | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MBA-7 1/2 | Radial Ball | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MBA-8 | Radial Ball | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MBA-8 1/2 | Radial Ball | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MBA-9 | Radial Ball | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MBA-9 1/2 | Radial Ball | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MBA-10 | Radial Ball | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MBA-10 1/2 | Radial Ball | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MBA-11 | Radial Ball | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MBA-11 1/2 | Radial Ball | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MBA-12 | Radial Ball | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| XLBC-5 | Radial Ball | 5 | 127 | 7 | 177.8 | 1 | 25.4 |
| XLBC-5 1/8 | Radial Ball | 5.125 | 130.175 | 7.25 | 184.15 | 1 | 25.4 |
| XLBC-5 1/4 | Radial Ball | 5.25 | 133.35 | 7.25 | 184.15 | 1 | 25.4 |
| XLBC-5 3/8 | Radial Ball | 5.375 | 136.525 | 7.5 | 190.5 | 1 | 25.4 |
| XLBC-5 1/2 | Radial Ball | 5.5 | 139.7 | 7.5 | 190.5 | 1 | 25.4 |
| XLBC-5 5/8 | Radial Ball | 5.625 | 142.875 | 7.75 | 196.85 | 1 | 25.4 |
| XLBC-5 3/4 | Radial Ball | 5.75 | 146.05 | 7.75 | 196.85 | 1 | 25.4 |
| XLBC-5 7/8 | Radial Ball | 5.875 | 149.225 | 8 | 203.2 | 1 | 25.4 |
| XLBC-6 | Radial Ball | 6 | 152.4 | 8 | 203.2 | 1 | 25.4 |
| XLBC-6 1/4 | Radial Ball | 6.25 | 158.75 | 8.5 | 215.9 | 1.125 | 28.575 |
| XLBC-6 1/2 | Radial Ball | 6.5 | 165.1 | 8.75 | 222.25 | 1.125 | 28.575 |
| XLBC-6 3/4 | Radial Ball | 6.75 | 171.45 | 9 | 228.6 | 1.125 | 28.575 |
| XLBC-7 | Radial Ball | 7 | 177.8 | 9.5 | 241.3 | 1.25 | 31.75 |
| XLBC-7 1/4 | Radial Ball | 7.25 | 184.15 | 9.75 | 247.65 | 1.25 | 31.75 |
| XLBC-7 1/2 | Radial Ball | 7.5 | 190.5 | 10 | 254 | 1.25 | 31.75 |
| XLBC-7 3/4 | Radial Ball | 7.75 | 196.85 | 10.5 | 266.7 | 1.375 | 34.925 |
| XLBC-8 | Radial Ball | 8 | 203.2 | 10.75 | 273.05 | 1.375 | 34.925 |
| XLBC-8 1/4 | Radial Ball | 8.25 | 209.55 | 11 | 279.4 | 1.375 | 34.925 |
| XLBC-8 1/2 | Radial Ball | 8.5 | 215.9 | 11.5 | 292.1 | 1.5 | 38.1 |
| XLBC-8 3/4 | Radial Ball | 8.75 | 222.25 | 11.75 | 298.45 | 1.5 | 38.1 |
| XLBC-9 | Radial Ball | 9 | 228.6 | 12 | 304.8 | 1.5 | 38.1 |
| XLBC-9 1/2 | Radial Ball | 9.5 | 241.3 | 12.75 | 323.85 | 1.625 | 41.275 |
| XLBC-10 | Radial Ball | 10 | 254 | 13.25 | 336.55 | 1.625 | 41.275 |
| XLBC-10 1/2 | Radial Ball | 10.5 | 266.7 | 14 | 355.6 | 1.75 | 44.45 |
| XLBC-11 | Radial Ball | 11 | 279.4 | 14.5 | 368.3 | 1.75 | 44.45 |
| XLBC-11 1/2 | Radial Ball | 11.5 | 292.1 | 15.25 | 387.35 | 1.875 | 47.625 |
| XLBC-12 | Radial Ball | 12 | 304.8 | 16 | 406.4 | 2 | 50.8 |
| XLBC-12 1/2 | Radial Ball | 12.5 | 317.5 | 16.5 | 419.1 | 2 | 50.8 |
| XLBC-13 | Radial Ball | 13 | 330.2 | 17.5 | 444.5 | 2.25 | 57.15 |
| XLBC-13 1/2 | Radial Ball | 13.5 | 342.9 | 18 | 457.2 | 2.25 | 57.15 |
| XLBC-14 | Radial Ball | 14 | 355.6 | 18.5 | 469.9 | 2.25 | 57.15 |
| XLBC-14 1/2 | Radial Ball | 14.5 | 368.3 | 19.5 | 495.3 | 2.5 | 63.5 |
| XLBC-15 | Radial Ball | 15 | 381 | 20 | 508 | 2.5 | 63.5 |
| XLBC-15 1/2 | Radial Ball | 15.5 | 393.7 | 20.5 | 520.7 | 2.5 | 63.5 |
| XLBC-16 | Radial Ball | 16 | 406.4 | 21.5 | 546.1 | 2.75 | 69.85 |
| XLBC-16 1/2 | Radial Ball | 16.5 | 419.1 | 22 | 558.8 | 2.75 | 69.85 |
| XLBC-17 | Radial Ball | 17 | 431.8 | 22.5 | 571.5 | 2.75 | 69.85 |
| XLBC-17 1/2 | Radial Ball | 17.5 | 444.5 | 23.5 | 596.9 | 3 | 76.2 |
| XLBC-18 | Radial Ball | 18 | 457.2 | 24 | 609.6 | 3 | 76.2 |
| XLBC-18 1/2 | Radial Ball | 18.5 | 469.9 | 24.5 | 622.3 | 3 | 76.2 |
| XLBC-19 | Radial Ball | 19 | 482.6 | 25.5 | 647.7 | 3.25 | 82.55 |
| XLBC-19 1/2 | Radial Ball | 19.5 | 495.3 | 26 | 660.4 | 3.25 | 82.55 |
| XLBC-20 | Radial Ball | 20 | 508 | 26.5 | 673.1 | 3.25 | 82.55 |
| XLBC-20 1/2 | Radial Ball | 20.5 | 520.7 | 27.5 | 698.5 | 3.5 | 88.9 |
| XLBC-21 | Radial Ball | 21 | 533.4 | 28 | 711.2 | 3.5 | 88.9 |
| XLBC-24 | Radial Ball | 24 | 609.6 | 32 | 812.8 | 4 | 101.6 |
| XLBC-24 1/2 | Radial Ball | 24.5 | 622.3 | 32 | 812.8 | 4 | 101.6 |
| XLBC-25 | Radial Ball | 25 | 635 | 35 | 889 | 4 | 101.6 |
| XLBC-30 | Radial Ball | 30 | 762 | 40 | 1016 | 4 | 101.6 |
| XLBC-40 | Radial Ball | 40 | 1016 | 50 | 1270 | 4 | 101.6 |
| LBC-5 | Radial Ball | 5 | 127 | 9 | 228.6 | 1.375 | 34.925 |
| LBC-5 1/2 | Radial Ball | 5.5 | 139.7 | 9.5 | 241.3 | 1.375 | 34.925 |
| LBC-6 | Radial Ball | 6 | 152.4 | 10.5 | 266.7 | 1.562 | 39.675 |
| LBC-6 1/2 | Radial Ball | 6.5 | 165.1 | 11 | 279.4 | 1.562 | 39.675 |
| LBC-7 | Radial Ball | 7 | 177.8 | 12 | 304.8 | 1.75 | 44.45 |
| LBC-7 1/2 | Radial Ball | 7.5 | 190.5 | 12.5 | 317.5 | 1.75 | 44.45 |
| LBC-8 | Radial Ball | 8 | 203.2 | 13 | 330.2 | 1.75 | 44.45 |
| LBC-8 1/2 | Radial Ball | 8.5 | 215.9 | 14 | 355.6 | 2 | 50.8 |
| LBC-9 | Radial Ball | 9 | 228.6 | 14.5 | 368.3 | 2 | 50.8 |
| LBC-9 1/2 | Radial Ball | 9.5 | 241.3 | 15.125 | 384.175 | 2 | 50.8 |
| LBC-10 | Radial Ball | 10 | 254 | 15.75 | 400.05 | 2 | 50.8 |
| LBC-10 1/2 | Radial Ball | 10.5 | 266.7 | 16.625 | 422.275 | 2.25 | 57.15 |
| LBC-11 | Radial Ball | 11 | 279.4 | 17.5 | 444.5 | 2.25 | 57.15 |
| LBC-11 1/2 | Radial Ball | 11.5 | 292.1 | 18 | 457.2 | 2.375 | 60.325 |
| LBC-12 | Radial Ball | 12 | 304.8 | 18.5 | 469.9 | 2.625 | 66.675 |
| LBC-12 1/2 | Radial Ball | 12.5 | 317.5 | 19 | 482.6 | 2.625 | 66.675 |
| LBC-13 | Radial Ball | 13 | 330.2 | 20 | 508 | 2.75 | 69.85 |
| LBC-13 1/2 | Radial Ball | 13.5 | 342.9 | 20.75 | 527.05 | 2.75 | 69.85 |
| LBC-14 | Radial Ball | 14 | 355.6 | 21.5 | 546.1 | 2.875 | 73.025 |
| LBC-14 1/2 | Radial Ball | 14.5 | 368.3 | 22 | 558.8 | 3 | 76.2 |
| LBC-15 | Radial Ball | 15 | 381 | 22.5 | 571.5 | 3 | 76.2 |
| LBC-15 1/2 | Radial Ball | 15.5 | 393.7 | 23 | 584.2 | 3.25 | 82.55 |
| LBC-16 | Radial Ball | 16 | 406.4 | 23.75 | 603.25 | 3.25 | 82.55 |
| MBC-3 | Radial Ball | 3 | 76.2 | 7 | 177.8 | 1.562 | 39.675 |
| MBC-3 1/4 | Radial Ball | 3.25 | 82.55 | 7.5 | 190.5 | 1.562 | 39.675 |
| MBC-3 1/4 | Radial Ball | 3.375 | 85.725 | 7.5 | 190.5 | 1.562 | 39.675 |
| MBC-3 1/2 | Radial Ball | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| MBC-3 3/4 | Radial Ball | 3.75 | 95.25 | 8.25 | 209.55 | 1.75 | 44.45 |
| MBC-4 | Radial Ball | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| MBC-4 1/4 | Radial Ball | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| MBC-4 1/2 | Radial Ball | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| MBC-4 3/4 | Radial Ball | 4.75 | 120.65 | 10 | 254 | 2 | 50.8 |
| MBC-5 | Radial Ball | 5 | 127 | 10 | 254 | 2 | 50.8 |
| MBC-5 1/2 | Radial Ball | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| MBC-6 | Radial Ball | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
| MBC-6 1/2 | Radial Ball | 6.5 | 165.1 | 13 | 330.2 | 2.5 | 63.5 |
| MBC-7 | Radial Ball | 7 | 177.8 | 13.5 | 342.9 | 2.5 | 63.5 |
| MBC-7 1/2 | Radial Ball | 7.5 | 190.5 | 14.5 | 368.3 | 2.75 | 69.85 |
| MBC-8 | Radial Ball | 8 | 203.2 | 15 | 381 | 2.75 | 69.85 |
| MBC-8 1/2 | Radial Ball | 8.5 | 215.9 | 16 | 406.4 | 3 | 76.2 |
| MBC-9 | Radial Ball | 9 | 228.6 | 17 | 431.8 | 3 | 76.2 |
| MBC-9 1/2 | Radial Ball | 9.5 | 241.3 | 18 | 457.2 | 3.25 | 82.55 |
| MBC-10 | Radial Ball | 10 | 254 | 18.5 | 469.9 | 3.25 | 82.55 |
| MBC-10 1/2 | Radial Ball | 10.5 | 266.7 | 19.5 | 495.3 | 3.5 | 88.9 |
| MBC-11 | Radial Ball | 11 | 279.4 | 20 | 508 | 3.5 | 88.9 |
| MBC-11 1/2 | Radial Ball | 11.5 | 292.1 | 21 | 533.4 | 3.75 | 95.25 |
| MBC-12 | Radial Ball | 12 | 304.8 | 21.5 | 546.1 | 3.75 | 95.25 |
| QJM-7/8 | Angular contact | 0.875 | 22.225 | 2.25 | 57.15 | 0.6875 | 17.463 |
| QJM-1 | Angular contact | 1 | 25.4 | 2.5 | 63.5 | 0.75 | 19.05 |
| QJM-1 1/8 | Angular contact | 1.125 | 28.575 | 2.8125 | 71.438 | 0.8125 | 20.638 |
| QJM-1 1/4 | Angular contact | 1.25 | 31.75 | 3.125 | 79.375 | 0.875 | 22.225 |
| QJM-1 3/8 | Angular contact | 1.375 | 34.925 | 3.5 | 88.9 | 0.875 | 22.225 |
| QJM-1 1/2 | Angular contact | 1.5 | 38.1 | 3.75 | 95.25 | 0.9375 | 23.813 |
| QJM-1 5/8 | Angular contact | 1.625 | 41.275 | 4 | 101.6 | 0.9375 | 23.813 |
| QJM-1 3/4 | Angular contact | 1.75 | 44.45 | 4.25 | 107.95 | 1.0625 | 26.988 |
| QJM-1 7/8 | Angular contact | 1.875 | 47.625 | 4.5 | 114.3 | 1.0625 | 26.988 |
| QJM-2 | Angular contact | 2 | 50.8 | 4.5 | 114.3 | 1.0625 | 26.988 |
| QJM-2 1/4 | Angular contact | 2.25 | 57.15 | 5 | 127 | 1.25 | 31.75 |
| QJM-2 1/2 | Angular contact | 2.5 | 63.5 | 5.5 | 139.7 | 1.25 | 31.75 |
| QJM-2 3/4 | Angular contact | 2.75 | 69.85 | 6.25 | 158.75 | 1.375 | 34.925 |
| QJM-3 | Angular contact | 3 | 76.2 | 7 | 177.8 | 1.5625 | 39.688 |
| QJM-3 1/4 | Angular contact | 3.25 | 82.55 | 7.5 | 190.5 | 1.5625 | 39.688 |
| QJM-3 1/2 | Angular contact | 3.5 | 88.9 | 8.125 | 206.375 | 1.75 | 44.45 |
| QJM-3 3/4 | Angular contact | 3.75 | 95.25 | 8.25 | 209.55 | 1.75 | 44.45 |
| QJM-4-E | Angular contact | 4 | 101.6 | 8.5 | 215.9 | 1.75 | 44.45 |
| QJM-4 1/4 | Angular contact | 4.25 | 107.95 | 8.75 | 222.25 | 1.75 | 44.45 |
| QJM-4 1/2 | Angular contact | 4.5 | 114.3 | 9.375 | 238.125 | 2 | 50.8 |
| QJM-4 3/4 | Angular contact | 4.75 | 120.65 | 10 | 254 | 2 | 50.8 |
| QJM-5-E | Angular contact | 5 | 127 | 10 | 254 | 2 | 50.8 |
| QJM-5 1/2 | Angular contact | 5.5 | 139.7 | 11 | 279.4 | 2 | 50.8 |
| QJM-6-E | Angular contact | 6 | 152.4 | 12 | 304.8 | 2.25 | 57.15 |
Checks Before a Scheerer Replacement Proposal
A complete model helps identify the original. Drawings and operating information are still needed for special or critical positions.
Full designation and original source
Preserve every suffix and send a catalog page or bearing marking photo.
Design and fit
Compare bearing type, ring arrangement, bore, OD, width, shoulders and shaft/housing fits.
Operating conditions
Record radial and axial load, speed, temperature, contamination and lubrication.
Application-specific construction
Check screen duty, clearance, cage, special material or thrust-plate geometry where applicable.
Inspection plan
Agree on drawings, applicable standards, inspection items and acceptance conditions for the proposed bearing.
Customer confirmation
Approve the proposed specification before ordering or manufacturing.
Have a Scheerer Model or Drawing?
Send the full model, quantity, equipment and operating conditions. Include the drawing, catalog entry or old-bearing photographs for technical review of a stock or custom alternative.
