Custom Bearings Built Around Your Drawing and Operating Conditions
From a marked bearing, sample or technical drawing, HSN reviews the structure, materials, tolerances and duty before confirming a manufacturable solution.
Our Custom Bearing Process
Share the starting point
Send a bearing sample, drawing, clear photos with dimensions, or the complete original part number.
Technical review
HSN reviews the bearing structure and parameters, then prepares a proposed bearing drawing.
Customer confirms the proposed specification.
Quote and confirm
Material, production route, quotation and supply terms are confirmed against the agreed drawing.
Customer approval before the order proceeds.
Source and manufacture
Purchase materials and arrange production with the appropriate bearing or component manufacturing route.
Inspect before dispatch
Apply the relevant GB/T standard, drawing and mutually agreed inspection criteria to the specified checks.
Pack and ship
Package under the customer’s brand or HSN branding as agreed, then arrange shipment.
Bearing Types We Can Evaluate
Roller bearings
Spherical, cylindrical, tapered and thrust roller bearings; housed roller bearing arrangements.
Ball bearings
Deep groove, angular contact and thrust ball bearings; housed ball bearing arrangements.
Plain bearings
Plain bearing sleeves, liners and bushes.
Special bearings
Split, stainless steel and polymer bearing designs.
Indicative design envelope
Minimum bore 2 mm · Maximum outside diameter 2,000 mm
Feasibility depends on the bearing type, design, material and production assessment.
Custom Bearing Projects
Z-529086.TA2
Double-row tapered roller bearing
Full project article: pending
22330 CCLA/W33VA405
Spherical roller bearing for a vibrating screen
Full project article: pending
130TQS562GF1–130TQSHL 562A
Four-row tapered roller bearing
Full project article: pending
198KV2851
Four-row tapered roller bearing
Full project article: pending
CRD-8040
Double-row cylindrical roller bearing
Full project article: pending
WTPC528-1
Hook thrust cylindrical roller bearing
Full project article: pending
T752
Thrust cylindrical roller bearing
Full project article: pending
Inspection Matched to the Bearing
The drawing, bearing type and customer requirements determine the applicable standards, checks and acceptance limits.

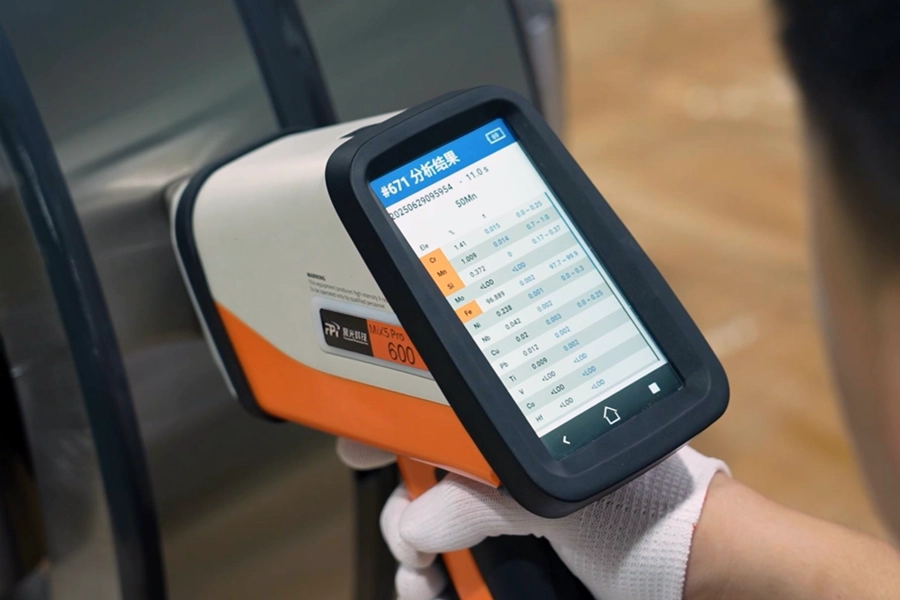

Material Verification

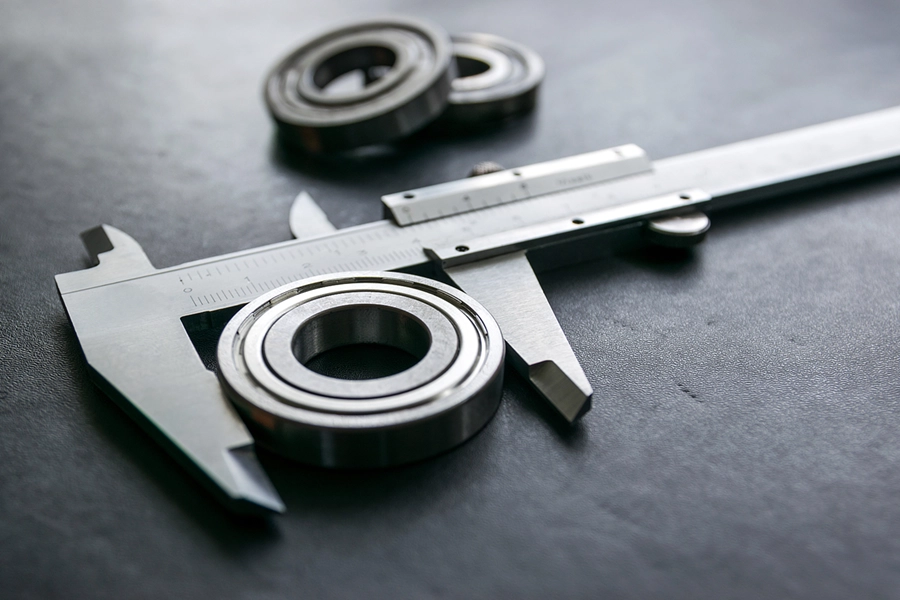

Dimensional Accuracy Inspection

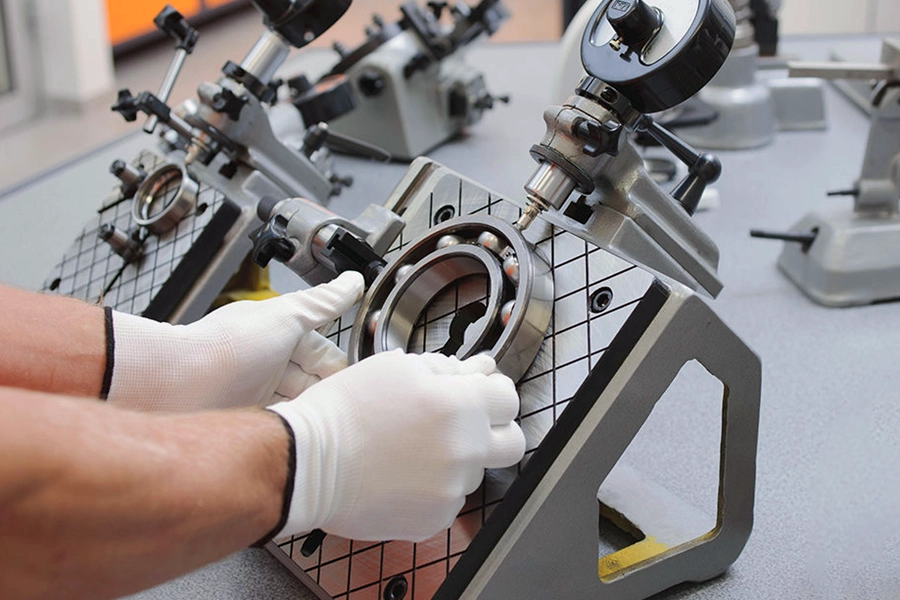

Internal Clearance Inspection

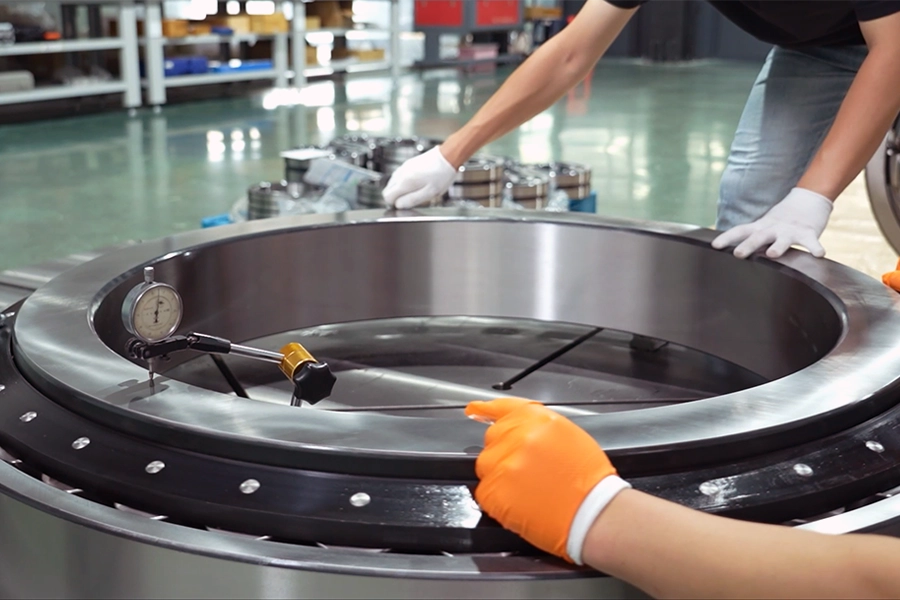

Rotation Accuracy Inspection

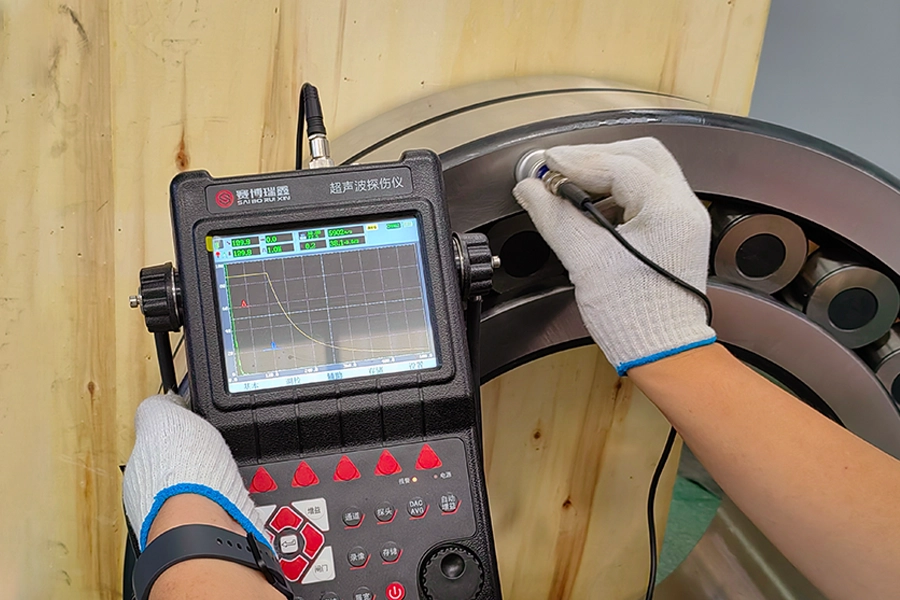

Internal Crack Inspection

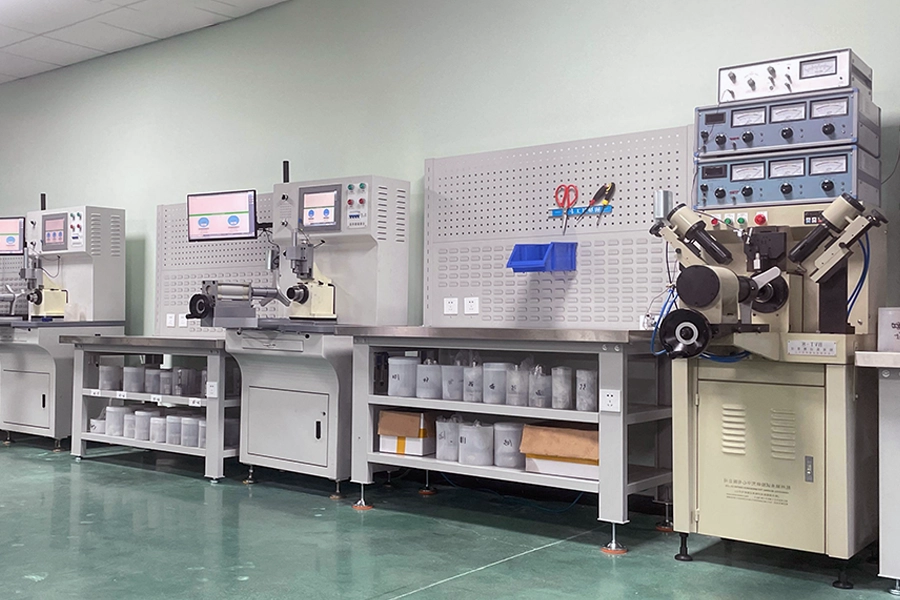

Noise & Vibration Testing
Send Your Bearing Requirements
A drawing or sample, original part number, quantity, application, load, speed and operating conditions help define the review.
