Rollway Bearings: Types, Series and Model Data

Identify the original Rollway bearing family, decode the complete part number and compare the dimensions and ratings in the supplied catalog. HSN can then review a stock or custom alternative against your operating conditions.

Submit a Rollway Part Number Explore Bearing Types

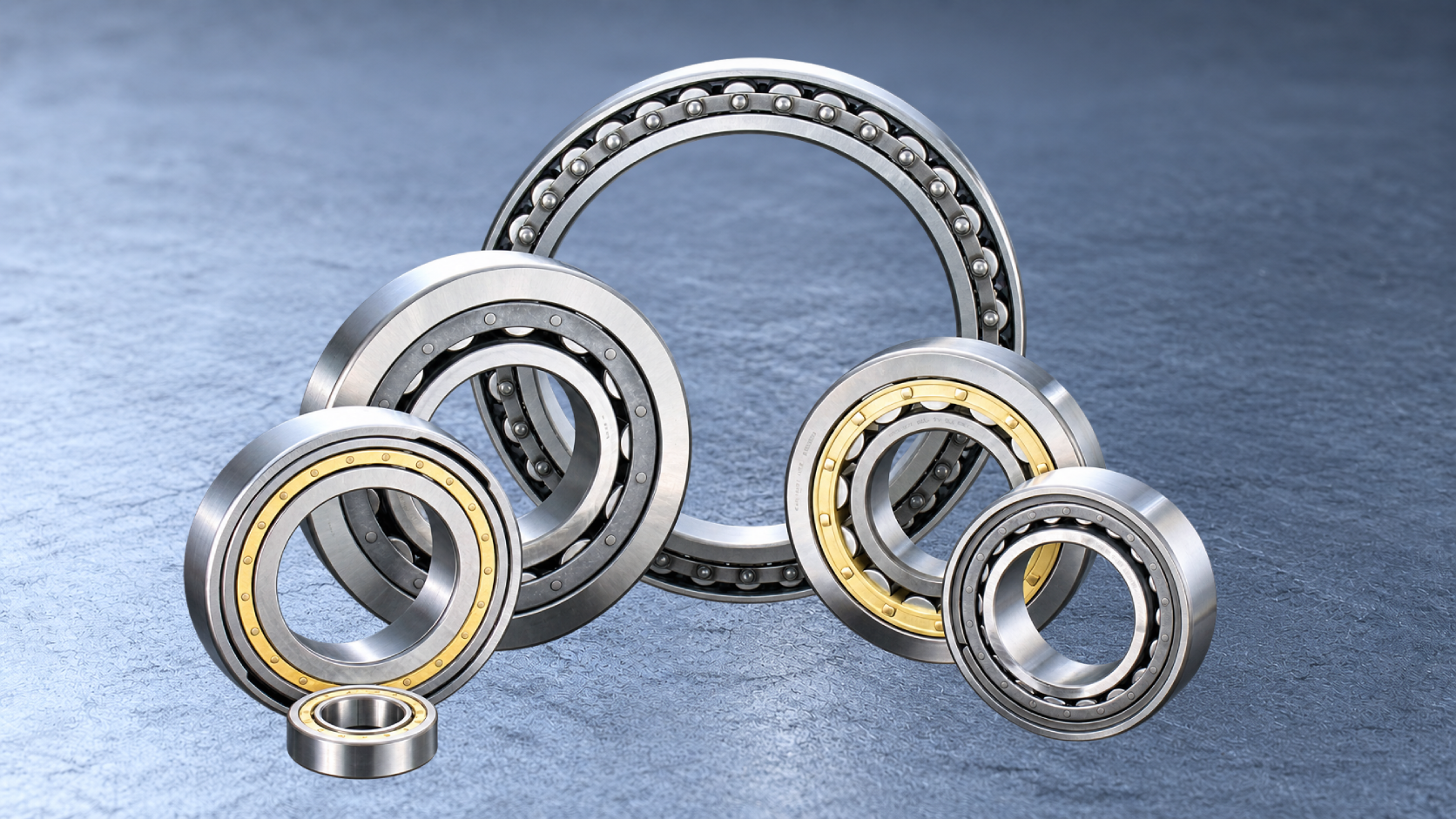

Rollway Bearings
01 · PRODUCT FAMILIES

Which Rollway Bearing Type Do You Have?

The supplied catalog concentrates on cylindrical roller designs for radial and axial loads. It also covers tapered thrust, tandem thrust and steel-cage journal roller bearings.

01 / RADIAL

Cylindrical Radial Roller

Standard and engineered radial designs with several locating and separable-ring configurations.

MAX NU · NJ · NUP · N
02 / AXIAL

Cylindrical Roller Thrust

Inch-series single-acting, aligning and double-acting styles for axial loading.

T · AT DT · DAT · SDT
03 / AXIAL

Tapered Roller Thrust

TTHD and T-Flat designs use tapered rollers and different raceway arrangements.

T-### T-#####-F
04 / MULTI-STAGE

Tandem Thrust

Several thrust stages share a constrained installation envelope; design and stage count must be checked.

TAB…TAH TMB…TMH
05 / JOURNAL

Journal Roller

Steel-cage journal designs with separate catalog tables and specific mounting and fitting checks.

D · B · WS · E
02 · DESIGNATION GUIDE

Series and Part Number Structure

The prefix can indicate a different ring arrangement even when the nominal dimensions look similar. Retain every suffix and variation code when sending an inquiry.

Radial: MAX numbering

MCS-5222-103 = prefix + size designator + variation

The catalog lists ML, MCS, MN, MS, M, MUC, MUL, MU and MR configuration prefixes. It identifies 100, 200, 300, 5000 and 5100 size-designator series for this numbering section. Special variation codes require the original engineering definition.

Radial: ISO numbering

NU-320-EMC3 = prefix + size designator + variation

NU, NUP, NJ and N describe different separable and locating arrangements. Series in this section include 200, 300, 2200 and 2300. E, M and C3 have catalog-defined meanings; special VAA-style codes need further confirmation.

Cylindrical thrust families

T-###  ·  AT-###  ·  CT-##  ·  DT-###  ·  DAT-###  ·  SDT-###

T denotes cataloged thrust styles; AT adds aligning plates in the illustrated series. Double-acting variants have their own construction. Verify the exact assembly and load direction.

Tapered, tandem and journal

T-###  ·  T-#####-F  ·  TAB…TAH  ·  TMB…TMH  ·  B/D/WS/E

These identifiers refer to separate product families and data tables. The shared letter T does not make tapered and cylindrical thrust designs interchangeable.

What a suffix can change

Depending on the designation, a suffix may specify internal clearance, retainer design, extra capacity, temperature stabilization or a special engineering variation. A base number is insufficient to confirm the replacement.

03 · ORIGINAL CATALOG DATA

Representative Rollway Model Parameters

This compact selection illustrates the catalog’s model tables; it is not a full model database. The values below are original Rollway catalog figures, shown in the catalog’s units.

Bore B
in
Outside diameter D
in
Height H
in
Dynamic capacity C
lb
Static capacity Co
lb
Limiting speed
rpm

grease / oil

Bearing NumberBore B (in)O.D.D (in)Height H (in)Weight (lb)Dynamic C (lbf)Static C0 (lbf)Grease Speed (rpm)Oil Speed (rpm)
T60112.1250.8120.5105501876034406880
T6021.0622.1250.8120.5105501876033706750
T6031.1252.250.8120.6121402554031906370
T6041.1872.250.8120.6121402554031306260
T6051.252.3750.8120.6132802838029705930
T6061.3122.3750.8120.6132802838029205830
T6071.3752.8750.8121174704780025305060
T6081.4372.8750.8121174704780024904990
T6091.530.8121187305214023904780
T6101.56230.8121187305214023604710
T6111.6253.2511.5256206738022104410
T6121.6873.2511.5256206738021804350
T6131.753.37511.6276707412021004200
T6141.8123.37511.6276707412020704140
T6151.8753.511.7277607412020004000
T6161.9373.511.6277607412019803950
T61723.62511.7278707412019103820
T6182.1253.7511.8287408085018303660
T6192.253.87511.9320308759017603510
T6202.375412322508759016903370
T6212.54.12512.1341809433016203250
T6222.6254.34312.33615010107015403090
T6232.754.46812.43835010780014902980
T62434.71812.64051011454013902790
T6253.254.96812.74077011454013102620
T6263.55.21812.94435012802012302470
AT60112.251.0620.7105501876034406880
AT6021.0622.251.0620.7105501876033706750
AT6031.1252.3751.0620.8121402554031903370
AT6041.1872.3751.0620.7121402554031306260
AT6051.252.51.0620.8132802838029705930
AT6061.3122.51.0620.8132802838029205830
AT6071.37531.0621.3174704780025305060
AT6081.43731.0621.3174704780024904990
AT6091.53.1251.0621.4187305214023904780
AT6101.5623.1251.0621.4187305214023604710
AT6111.6253.3751.3122256206738022104410
AT6121.6873.3751.3122256206738021804350
AT6131.753.51.3122276707412021004200
AT6141.8123.51.3122276707412020704140
AT6151.8753.6251.3122.2277607412020004000
AT6161.9373.6251.3122.2277607412019803950
AT61723.751.3122.3278707412019103820
AT6182.1253.8751.3122.3287408085018303660
AT6192.2541.3122.5320308759017603510
AT6202.3754.1251.3122.6322508759016903370
AT6212.54.251.3122.7341809433016203250
AT6222.6254.531.31233615010107015403090
AT6232.754.6551.3123.23835010780014902980
AT62434.9681.3123.44051011454013902790
AT6253.255.2181.3123.64077011454013102620
AT6263.55.4681.3123.84435012802012302470
T727261.3758.67750029590013402690
T728271.37511.710560036360011902390
T729281.3751611190046020010802150
T730361.3757.38220026800011902390
T731371.37510.89880036580010802150
T732381.37514.71262004945009801950
T733391.37519.21475006428009001790
T734471.7511.41111003205009801950
T735481.7516.61322004542009001790
T736491.7522.41584006581008301650
T7374101.75291922007778007701540
T738581.7513.51110004194008301650
T739591.7519.51620006318007701540
T7405102302051007033007201430
T7415112382312008709006701340
T74251224727610011440006301260
T743692181306004501007201430
T7446102251903006486006701340
T7456112342334009299006301260
T74661224226700010971006001190
T7477102201545005501006301260
T7487112282136007908006001190
T74971224025160010229005701130
T75071438843620015982005101020
T7518123482580009454005401080
T7528143783975001487900490980
T75381631145164002072500450900
T75410163884378001747200410830
T75510183.751686142002697600380770
T75610203.752257660003250900360720
T75712183.751344692002031900360720
T75812204.52227246002937800340670
T75912244.537210459004688000300600
T76014203.751525400002385200320630
T76114223.752157320003339900300600
T76214243.752858581004280300280570
T76316224.52056098002362800280570
T76416244.52908787003819100270540
T76516264.538010415004916300260510
T766182653509455003937500240490
T7671828546011858005393500230470
T76818305.563015716006753800220450
T76920285.542010917004407200220450
T77020305.555015448006885500220430
T7712032675017120007850000210410
T77222305.545011619004774500210410
T77322325.559014310006153200200400
T7742234680017422007981700190380
AT72726.3121.81211.57750029590013402690
AT72827.3121.81215.810560036360011902390
AT72928.3121.81221.511190046020010802150
AT73036.3121.8129.68220026800011902390
AT73137.3121.81214.39880036580010802150
AT73238.3121.812201262004945009801950
AT73339.3121.812261475006428009001790
AT73447.3752.312151111003205009801950
AT73548.3752.312221322004542009001790
AT73649.3752.312301584006581008301650
AT737410.52.312391922007778007701540
AT73858.52.312181110004194008301650
AT73959.52.312261620006318007701540
AT740510.52.625392051007033007201430
AT741511.52.625502312008709006701340
AT742512.52.6256327610011440006301260
AT74369.52.625231306004501007201430
AT744610.52.625331903006486006701340
AT745611.52.625442334009299006301260
AT746612.52.6255726700010971006001190
AT747710.52.625261545005501006301260
AT748711.52.625372136007908006001190
AT749712.52.6255025160010229005701130
AT750714.75411843620015982005101020
AT751812.754632580009454005401080
AT752814.7541063975001487900490980
AT753816.87541545164002072500450900
AT7541016.87541204378001747200410830
AT7551018.87552256142002697600380770
AT7561020.87553007660003250900360720
AT7571218.87551804692002031900360720
AT7581220.87563007246002937800340670
AT7591224.875651010459004688000300600
AT7601420.8754.8752005400002385200320630
AT7611422.8754.8752807320003339900300600
AT7621424.8754.8753708581004280300280570
AT7631622.87562706098002362800280570
AT764162563858787003819100270540
AT7651627651010415004916300260510
AT76618276.754709455003937500240490
AT76718296.7562011858005393500230470
AT76818317.2584015716006753800220450
04 · TECHNICAL ASSESSMENT

What HSN Checks Before Proposing an Alternative

The Rollway catalog provides an identification starting point. A replacement also depends on installation details and agreed inspection requirements.

Complete designation

Prefix, base size, suffixes and special variation codes.

Geometry and assembly

Bore, OD, width/height, shoulders, fillets, separable rings and plate arrangement.

Loads and operating speed

Radial or axial direction, duty cycle, lubrication and temperature.

Materials and internal design

Cage, clearance, precision, seals and any high-temperature or special material requirement.

Fits and surrounding equipment

Shaft, housing, bearing position and room for aligning or tandem assemblies.

Acceptance before shipment

Drawing, applicable standards, inspection items and customer-agreed criteria.

REQUEST AN ASSESSMENT

Have a Rollway Part Number?

Send the complete model, quantity, equipment position and operating conditions. Add a drawing, catalog page or old-bearing photos when available. HSN can review a stock or custom option and define the checks needed before confirmation.
