29344-E1-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 29344-E1-XL
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 220 mm
Outer (D): 360 mm
Width (T): 85 mm
Weight: 30.6 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Axial Ca: 1990000 N
Basic Static Load Rating, Axial (C0a): 6200000 N
Fatigue Load Limit, Axial (Cua): 710000 N
Limiting Speed (nG): 1820 r/min
Reference Speed (nϑr): 950 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Thrust Bearings
Product Description

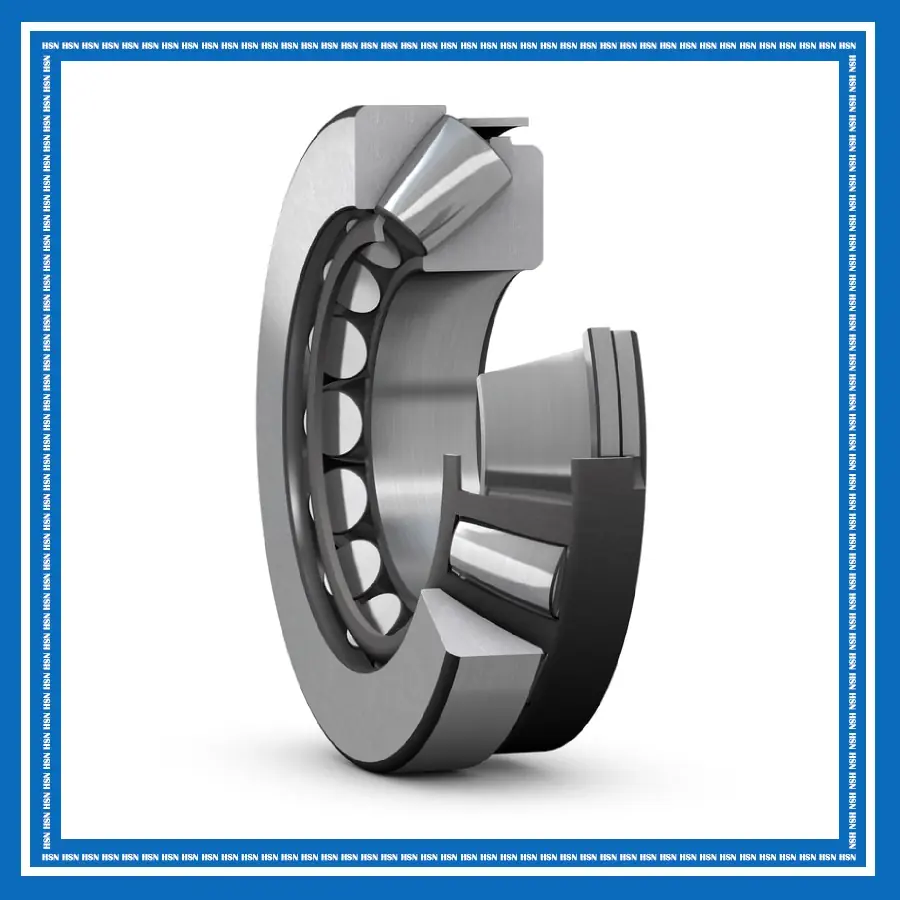

The 29344-E1-XL spherical roller thrust bearing consists of a shaft washer, housing washer, asymmetrical spherical rollers, and a cage. The E1 design features optimized internal geometry for high load carrying capacity, while the XL design provides enhanced performance and longer service life. Its spherical raceway allows the bearing to accommodate misalignment and shaft deflection while supporting very high axial loads and radial loads.
The 29344-E1-XL bearing is suitable for mining and cement equipment, industrial gearboxes, metalworking machinery, paper machinery, marine drives, and heavy-duty transmission systems. Its high load capacity, self-aligning capability, and X-life performance provide reliable operation in demanding industrial applications.
