1217-TVH
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 1217-TVH
Category: Self-aligning Ball Bearings
1
Weight and Dimensions
Bore (d): 85 mm
Outer (D): 150 mm
Width (B): 28 mm
Weight: 2.07 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 49500 N
Basic Static Load Rating, Radial (C0r): 20600 N
Fatigue Load Limit, Radial (Cur): 1180 N
Limiting Speed (nG): 4900 rpm
Reference Speed (nϑr): 4950 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Self-aligning Ball Bearings
Product Description

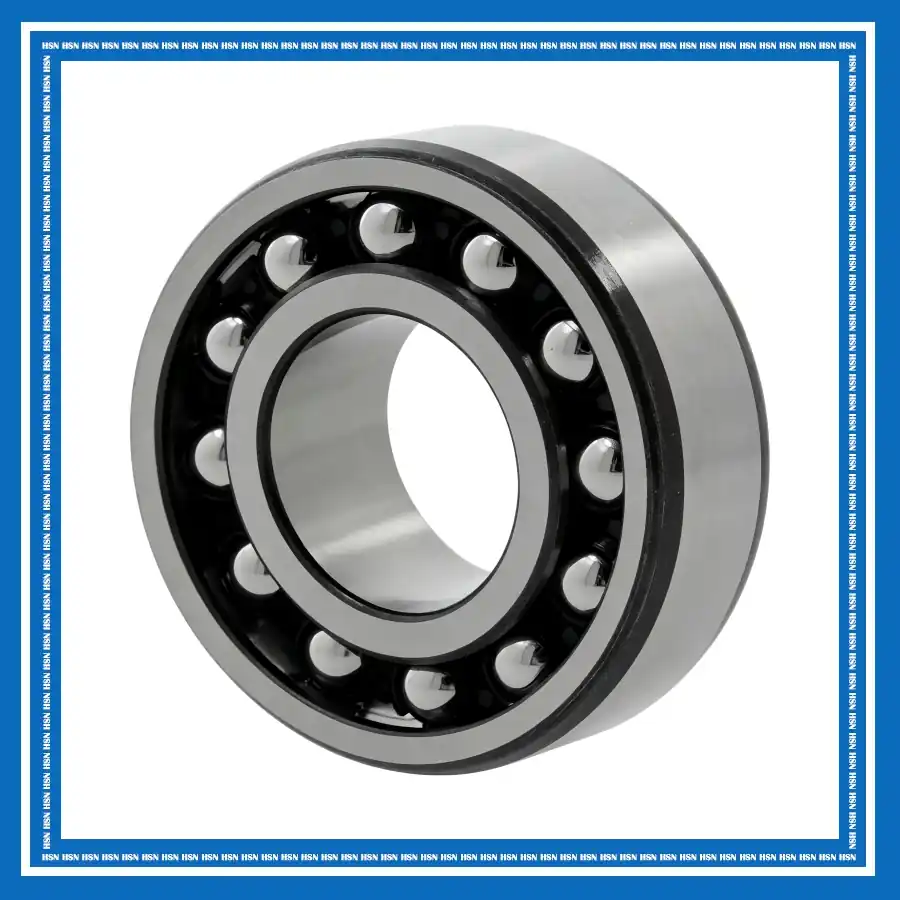

The 1217-TVH FAG self-aligning ball bearing consists of an inner ring with two raceway grooves, an outer ring with a spherical raceway, two rows of balls, and a solid cage made from glass-fiber reinforced polyamide PA66. The spherical outer raceway allows the bearing to compensate for shaft deflection and mounting misalignment. In addition, the lightweight TVH cage provides reliable ball guidance, low friction, smooth operation, and good high-speed performance.
The 1217-TVH bearing is widely used in textile machinery, ventilation systems, light conveying equipment, and woodworking machinery. It is particularly suitable for applications involving shaft deflection or alignment errors while requiring low friction, higher operating speeds, and smooth continuous operation.
