126 TTSV 922
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: 126 TTSV 922
Category: Tapered Roller Thrust Bearings
1

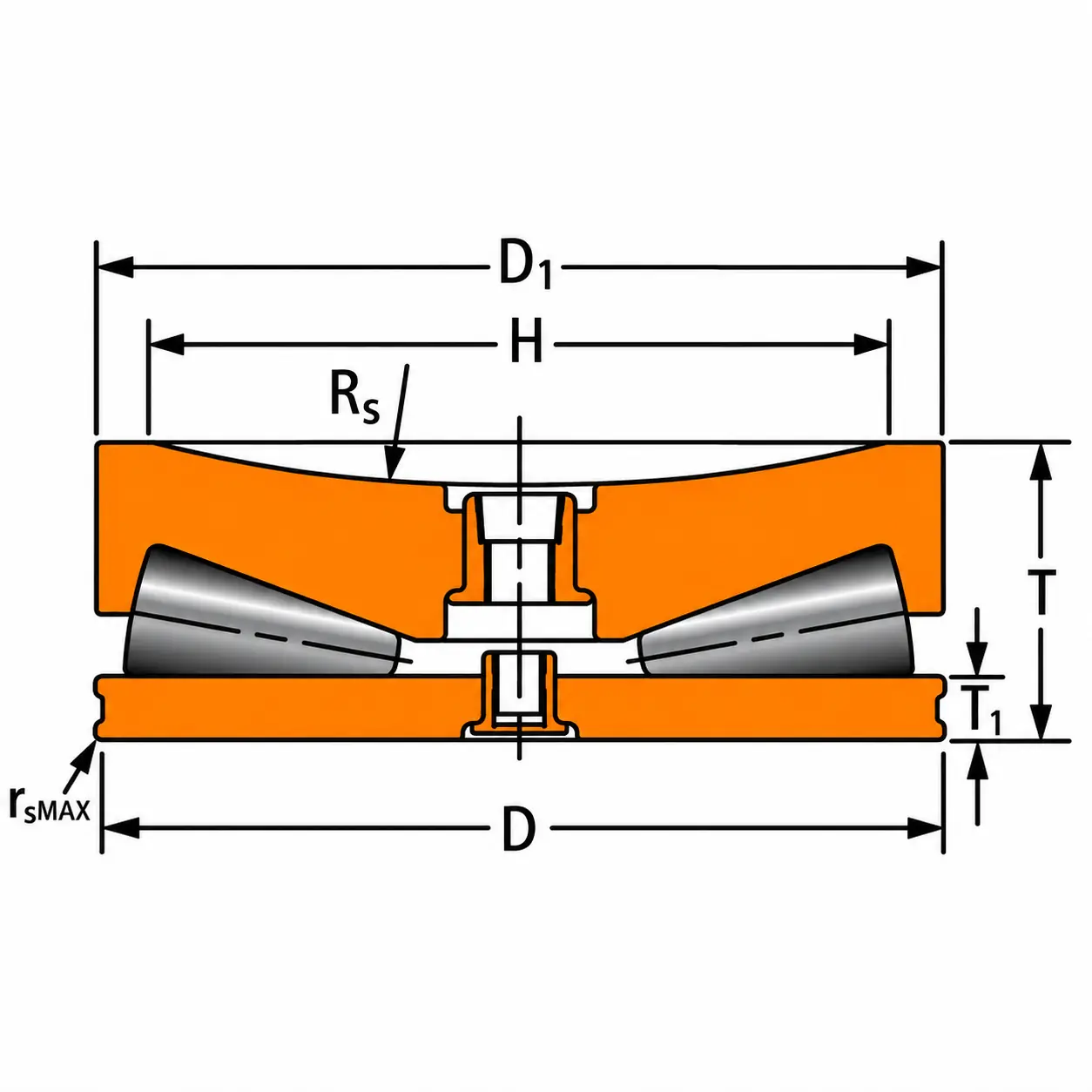

Weight and Dimensions
Large O.D.D: 320.675 mm 12.625 in
Small O.D.D1 (mm): 318.313 mm 12.532 in
Bearing Width (T): 95.25 mm 3.75 in
Flat Race Width (T1): 22.225 mm 0.875 in
Contact Diameter (H): 279.4 mm 11 in
Spherical Radius (Rs): 381 mm 15 in
Weight: 55.4 kg 122.2 lbs
Data from Timken (medias)
Static Load Rating CaO: 12540 KN 2820000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN 126 TTSV 922 screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a concave race profile designed for rolling mill screwdown systems. Its heavy-duty, full complement construction provides high axial load capacity and stable support under extreme thrust loads, while the specially profiled raceway accommodates the mounting requirements of screwdown mechanisms. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and metal processing equipment in the United States industrial market, where reliable axial support and durability are essential.
