128TS535
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 128TS535
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 325.438 mm 12.8125 in
Outer (D): 596.900 mm 23.5000 in
Width (W): 136.525 mm 5.3750 in
Width Over Cups (Wo ): 98.425 mm 3.8750 in
Width Over Cones (Wi): 136.525 mm 5.3750 in
Weight: 159 kg 350 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 2669 KN 600000 lbs
Static Capacity (C0) : 4715 KN 1060000 lbs
K Factor: 1.38
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

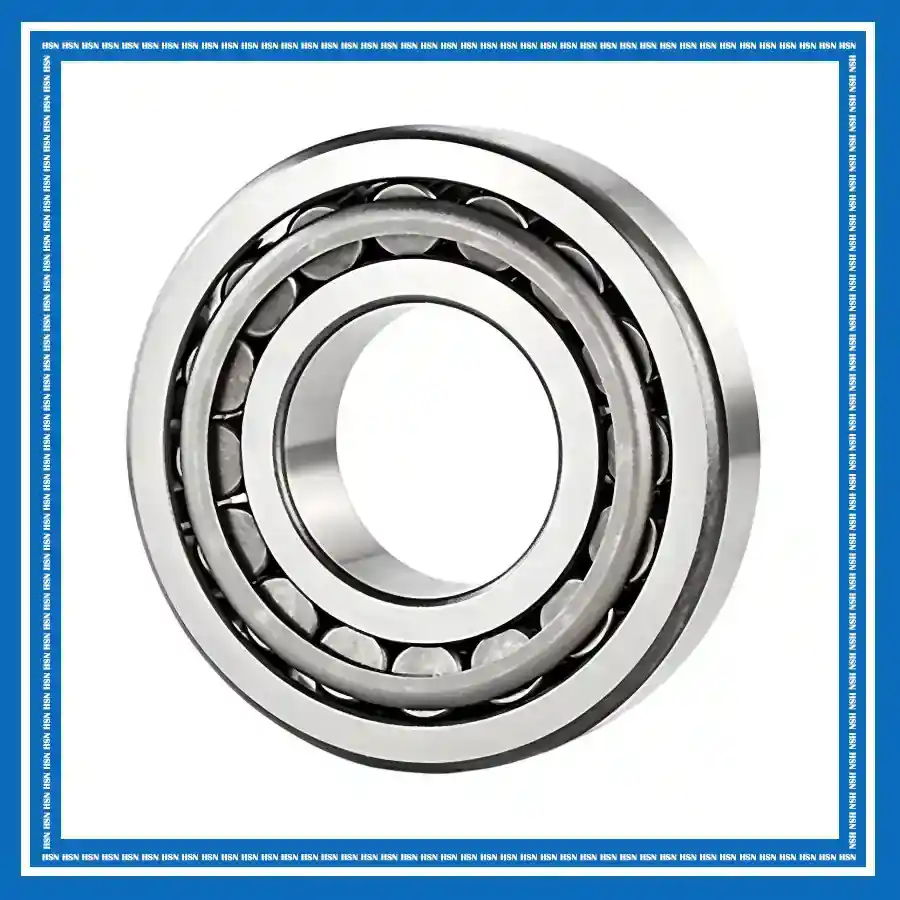

The American Roller Bearing 128TS535 single-row tapered roller bearing consists of an inner ring with tapered rollers and cage, together with a separate outer ring. Its tapered roller and raceway geometry provides high radial load capacity and supports axial loads in one direction, while the separable design simplifies mounting and adjustment. The rigid construction provides stable operation and reliable load distribution under demanding conditions. It is suitable for industrial gearboxes, mining and construction machinery, rolling mill equipment, agricultural machinery, wheel hubs, conveyor drives, and other heavy-duty transmission applications requiring combined radial and axial load support.
