1307-K-TVH-C3
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 1307-K-TVH-C3
Category: Self-aligning Ball Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 80 mm
Width (B): 21 mm
Weight: 0.5 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 25500 N
Basic Static Load Rating, Radial (C0r): 7800 N
Fatigue Load Limit, Radial (Cur): 485 N
Limiting Speed (nG): 9700 rpm
Reference Speed (nϑr): 7800 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Self-aligning Ball Bearings
Product Description

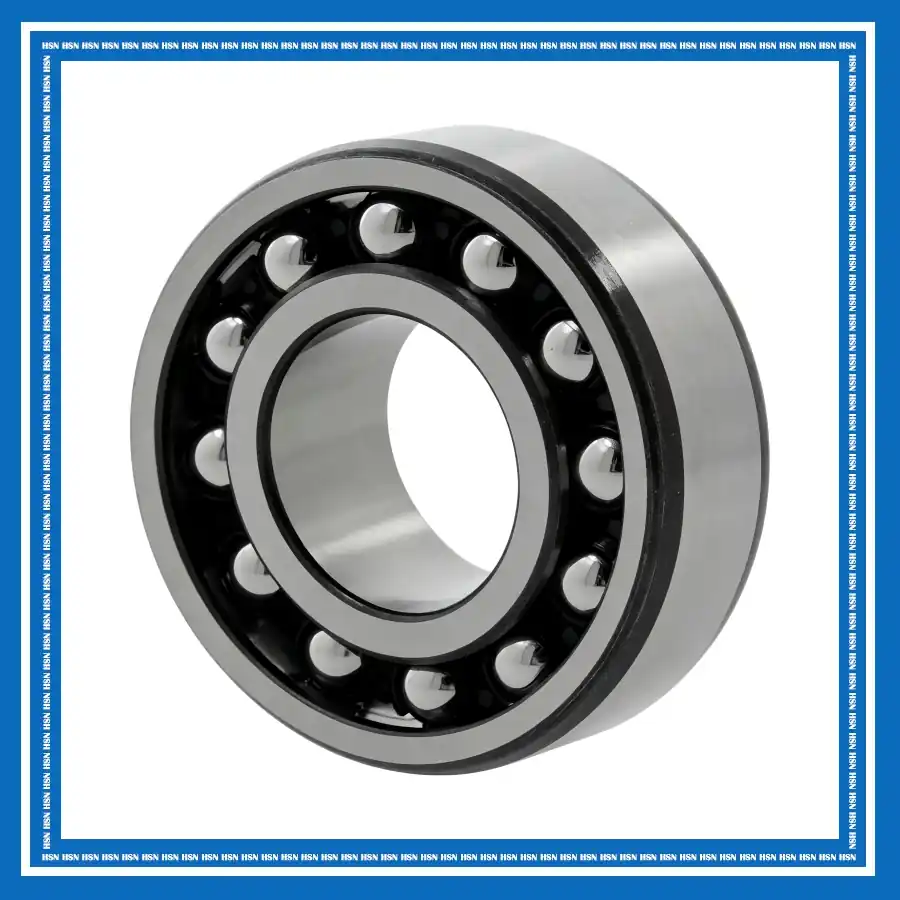

The 1307-K-TVH-C3 FAG self-aligning ball bearing consists of an outer ring with a spherical raceway, an inner ring with a tapered bore, two rows of balls, and a solid cage made from glass-fiber reinforced polyamide PA66. The self-aligning design compensates for shaft deflection and mounting misalignment while supporting radial and axial loads in both directions. The K tapered bore enables convenient mounting with an adapter sleeve, while C3 internal clearance provides greater radial clearance than normal.
The 1307-K-TVH-C3 bearing is widely used in belt conveyors, industrial fans, textile machinery, paper processing equipment, and long-shaft transmission systems. It is particularly suitable for applications where shaft deflection or mounting misalignment may occur, while the tapered bore provides flexible mounting on shafts with adapter sleeves.
