135RIP580
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ Torrington/ OEM
Bearing Number: 135RIP580
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 342.9 mm 13.5000 in
Outer Diameter (D): 457.2 mm 18.0000 in
Width (C): 57.15 mm 2.2500 in
Weight: 27.2 kg 60 lbs
Data from Torrington (medias)
Dynamic Capacity (C) : 815000 N 183000 lbs
Static Capacity (Co) : 1530000 N 345000 lbs
Limiting Speed (approx.) : 750 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Torrington Cylindrical Roller Bearings Guide
Product Description

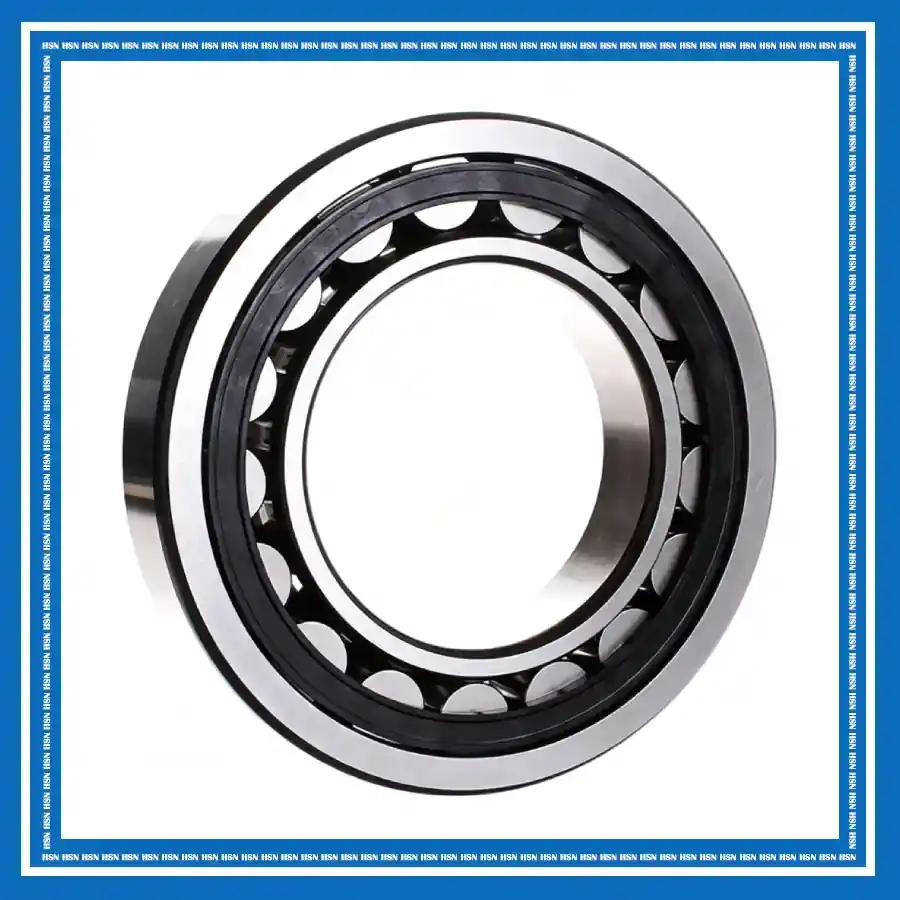

The Torrington 135RIP580 cylindrical roller bearing consists of inner and outer rings, cylindrical rollers, a cage, and a loose abutting rib. Its double-ribbed inner ring design provides high radial load capacity while allowing axial location and light axial loads in both directions. The robust roller arrangement provides reliable support and stable operation under demanding loads. It is suitable for industrial gearboxes, electric motors, pumps, compressors, conveyors, material handling equipment, and other heavy-duty machinery requiring high radial load capacity and reliable shaft support.
