161 TTSX 930 DO035
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: 161 TTSX 930 DO035
Category: Tapered Roller Thrust Bearings
1

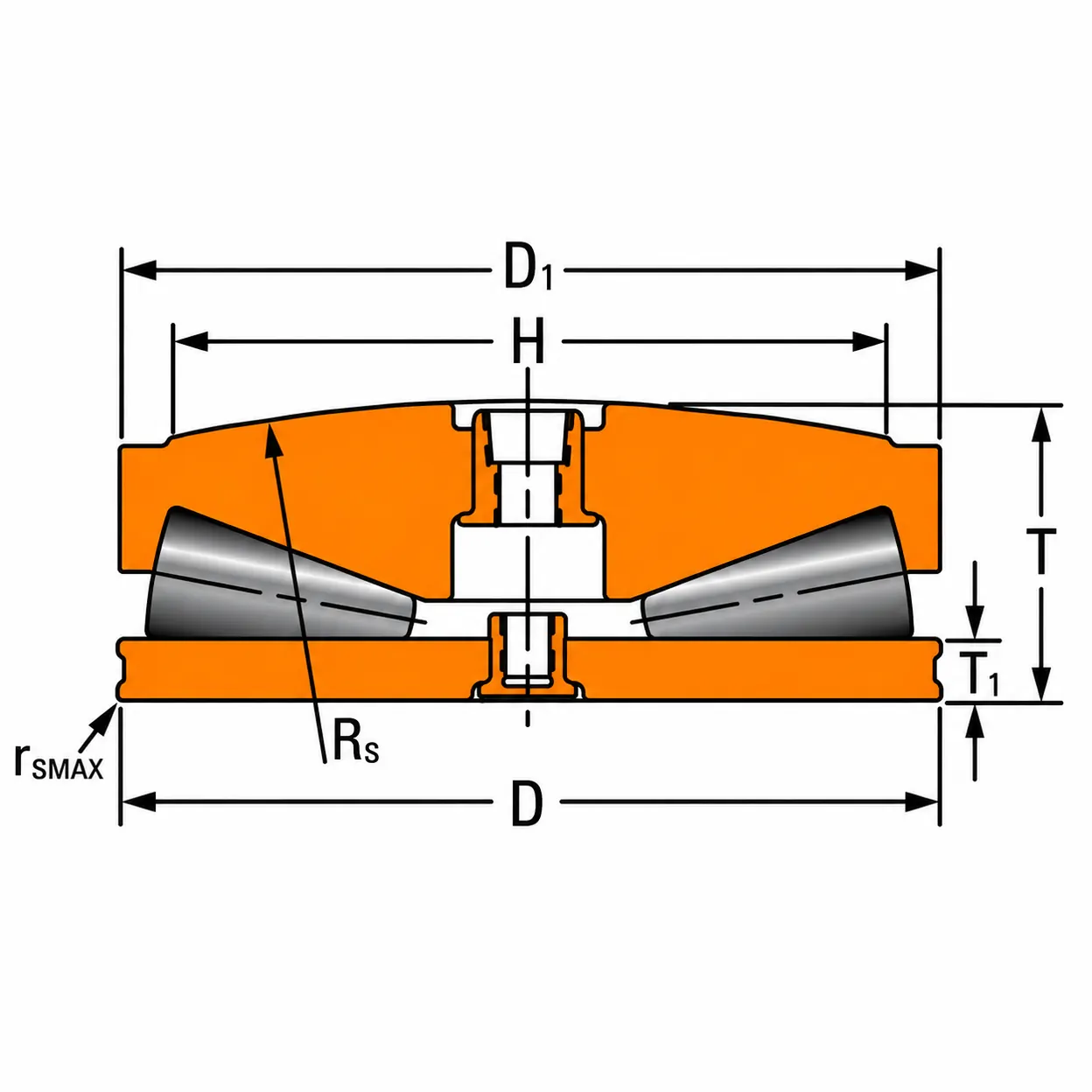

Weight and Dimensions
Large O.D.D: 409.575 mm 16.125 in
Small O.D.D1 (mm): 407.213 mm 16.032 in
Bearing Width (T): 140.767 mm 5.542 in
Flat Race Width (T1): 28.575 mm 1.125 in
Contact Diameter (H): 355.6 mm 14 in
Spherical Radius (Rs): 1016 mm 40 in
Weight: 134.8 kg 297.1 lbs
Data from Timken (medias)
Static Load Rating CaO: 20420 KN 4590000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN 161 TTSX 930 DO035 screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage. Its heavy-duty construction provides high axial load capacity and stable support under extreme thrust loads, while the tapered roller design helps reduce friction and improve operating reliability. Specifically designed for rolling mill screwdown mechanisms, the bearing is suitable for steel and metal processing rolling mills in the United States industrial market, where dependable axial load support and durability are essential.
