Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 169TDO713CD
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 430.213 mm 16.9375 in
Outer (D): 603.250 mm 23.7500 in
Width Over Cups (Wo ): 104.775 mm 4.1250 in
Width Over Cones (Wi): 159.639 mm 6.2850 in
Weight: 124 kg 274 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 2135 KN 480000 lbs
Static Capacity (C0) : 5827 KN 1310000 lbs
K Factor: 1.11
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

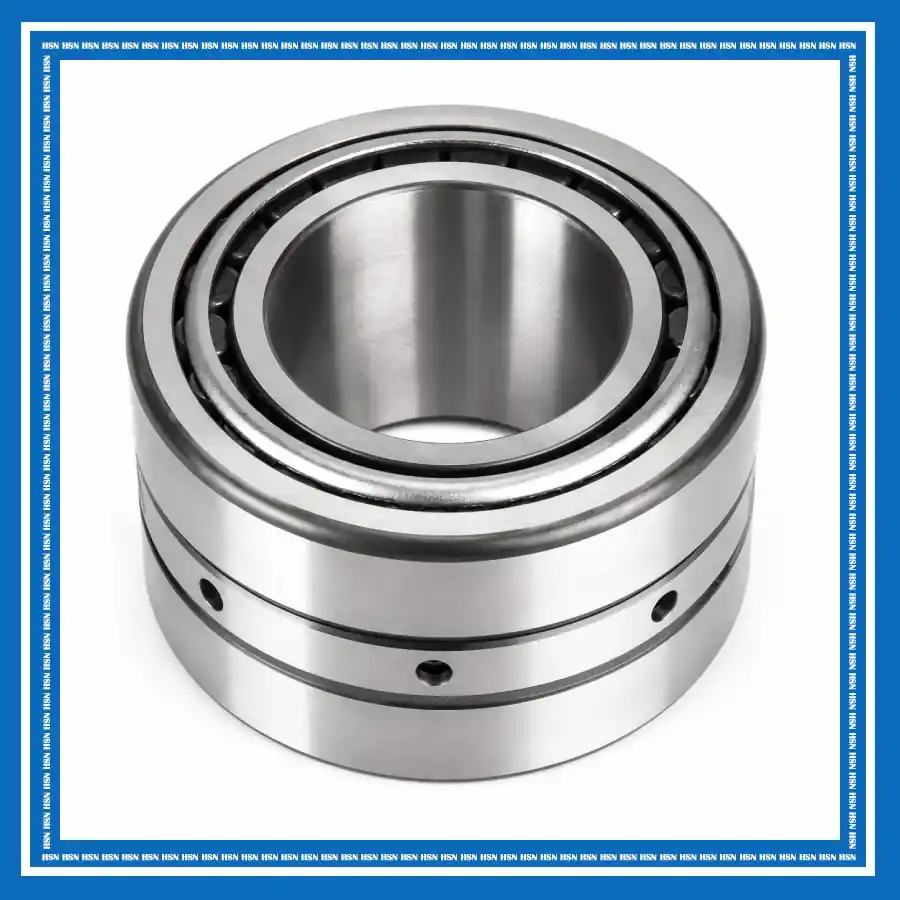

The American Roller Bearing 169TDO713CD double-row tapered roller bearing consists of a double outer ring, two single inner ring assemblies with tapered rollers and cages, and an inner ring spacer. Its opposed roller arrangement provides high radial load capacity and supports axial loads in both directions, while maintaining high rigidity and stable operation under heavy loads. The separable inner ring assemblies facilitate mounting, adjustment, and maintenance. It is suitable for industrial gearboxes, rolling mills, mining and construction machinery, material handling equipment, and other heavy-duty transmission systems requiring combined radial and bidirectional axial load support.
