179TDO605
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 179TDO605
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 456.794 mm 17.9840 in
Outer (D): 761.873 mm 29.9950 in
Width Over Cups (Wo ): 222.250 mm 8.7500 in
Width Over Cones (Wi): 304.800 mm 12.0000 in
Weight: 100 kg 221 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 6227 KN 1400000 lbs
Static Capacity (C0) : 14234 KN 3200000 lbs
K Factor: 1.32
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

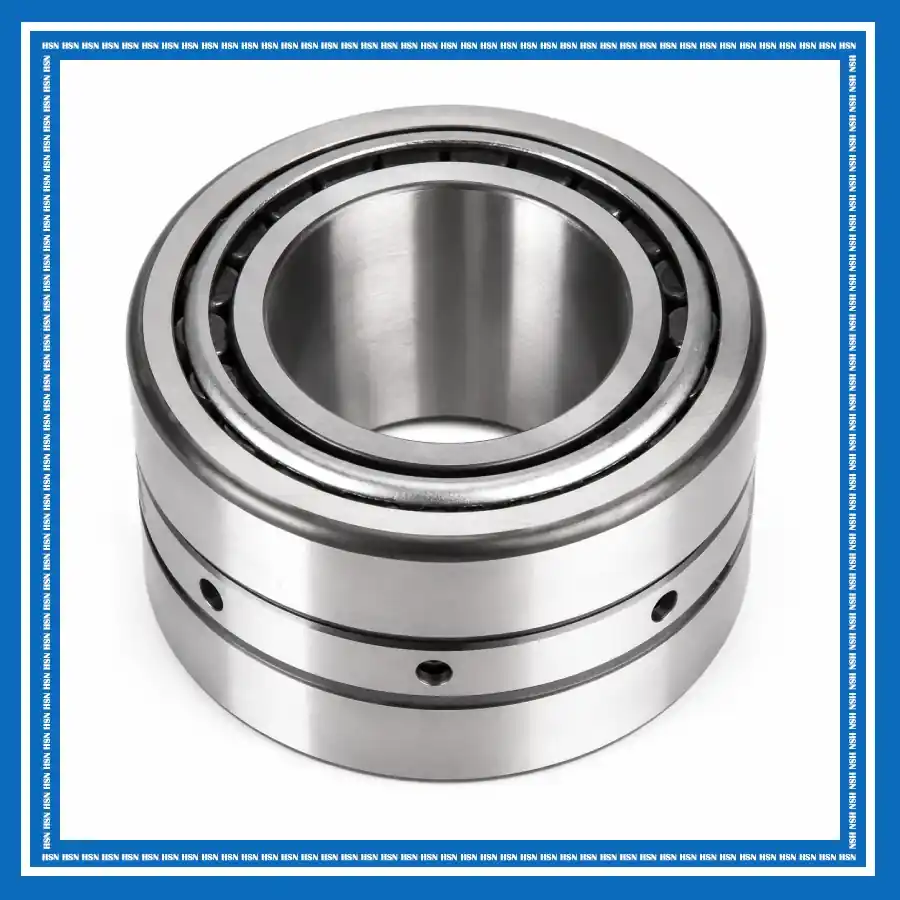

The American Roller Bearing 179TDO605 double-row tapered roller bearing consists of a double outer ring, two single inner ring assemblies with tapered rollers and cages, and an inner ring spacer. Its opposed roller arrangement provides high radial load capacity and supports axial loads in both directions, while maintaining high rigidity and stable operation under heavy loads. The separable inner ring assemblies facilitate mounting, adjustment, and maintenance. It is suitable for industrial gearboxes, rolling mills, mining and construction machinery, material handling equipment, and other heavy-duty transmission systems requiring combined radial and bidirectional axial load support.
