Bearing Number: 180AB605
Category: Angular Contact Thrust Ball Bearings
1
Weight and Dimensions
Bore (B): 457.2 mm 18 in
Outer (D): 625.475 mm 24.625 in
Height (H): 92.075 mm 3.625 in
Weight: 78 kg 173 lbs
Data from ARB (medias)
Dynamic Capacity (Ca) : 1290 KN 290000 lbs
Static Capacity (C0): 4804 KN 1080000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Thrust Ball Bearings Guide
Product Description

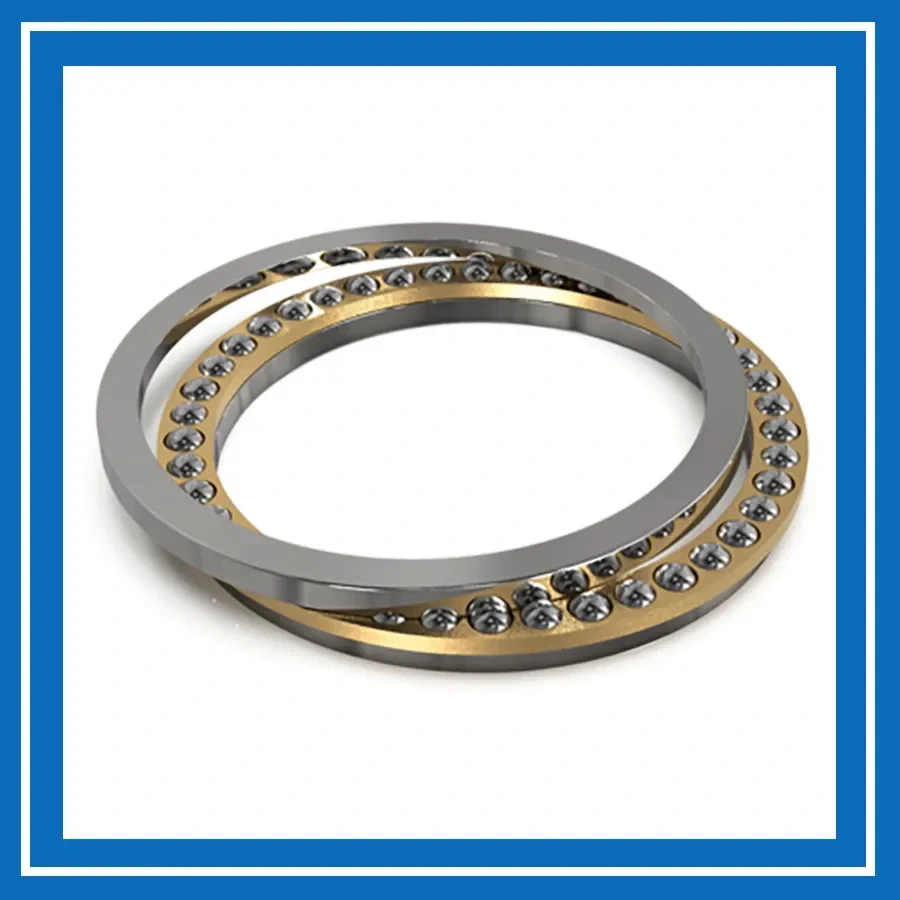

The American Roller Bearing 180AB605 thrust angular contact ball bearing consists of precision bearing rings, steel balls, and a cage designed to maintain accurate ball guidance and spacing. Its 50° contact angle provides high axial load capacity and rigidity while ensuring stable operation under demanding loads. The robust construction and precise internal geometry provide reliable axial support and long service life. It is suitable for heavy industrial machinery, metalworking equipment, gearboxes, presses, and other applications requiring high axial load capacity and stable shaft support.
