180TS693
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 180TS693
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 457.200 mm 18.0000 in
Outer (D): 660.400 mm 26.0000 in
Width (W): 91.280 mm 3.5937 in
Width Over Cups (Wo ): 62.708 mm 2.4688 in
Width Over Cones (Wi): 85.725 mm 3.3750 in
Weight: 102 kg 225 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1735 KN 390000 lbs
Static Capacity (C0) : 3470 KN 780000 lbs
K Factor: 1.73
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

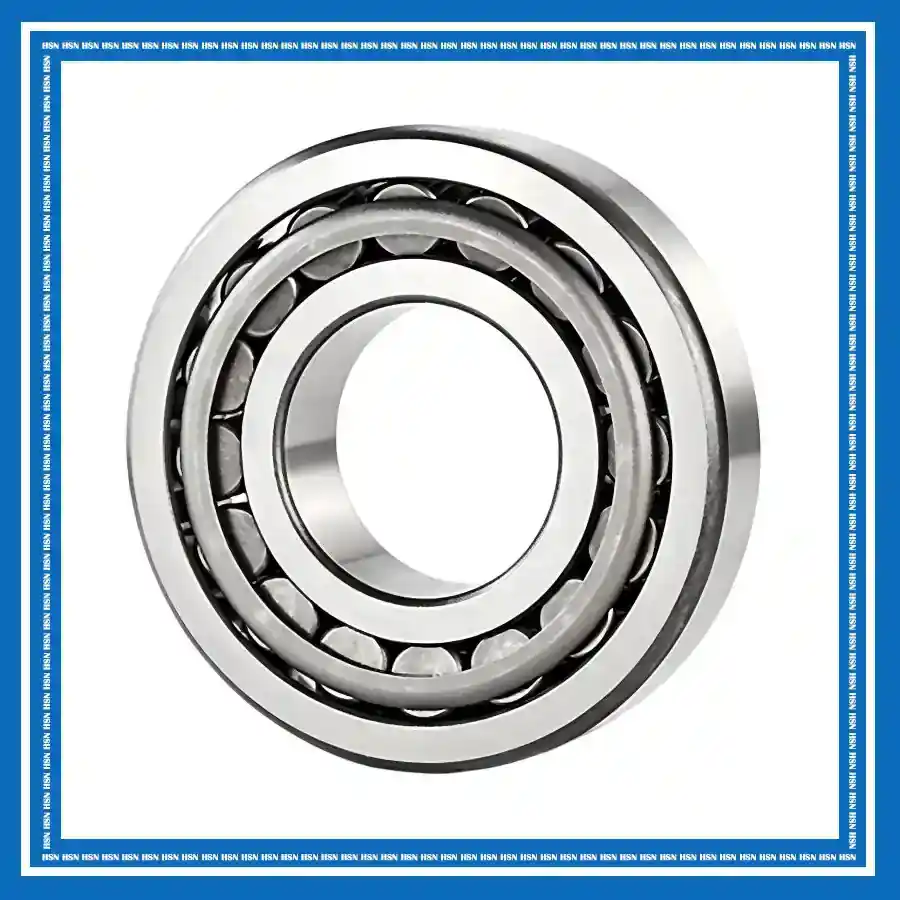

The American Roller Bearing 180TS693 single-row tapered roller bearing consists of an inner ring with tapered rollers and cage, together with a separate outer ring. Its tapered roller and raceway geometry provides high radial load capacity and supports axial loads in one direction, while the separable design simplifies mounting and adjustment. The rigid construction provides stable operation and reliable load distribution under demanding conditions. It is suitable for industrial gearboxes, mining and construction machinery, rolling mill equipment, agricultural machinery, wheel hubs, conveyor drives, and other heavy-duty transmission applications requiring combined radial and axial load support.
