202 TTSX 942 FE1199
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: 202 TTSX 942 FE1199
Category: Tapered Roller Thrust Bearings
1

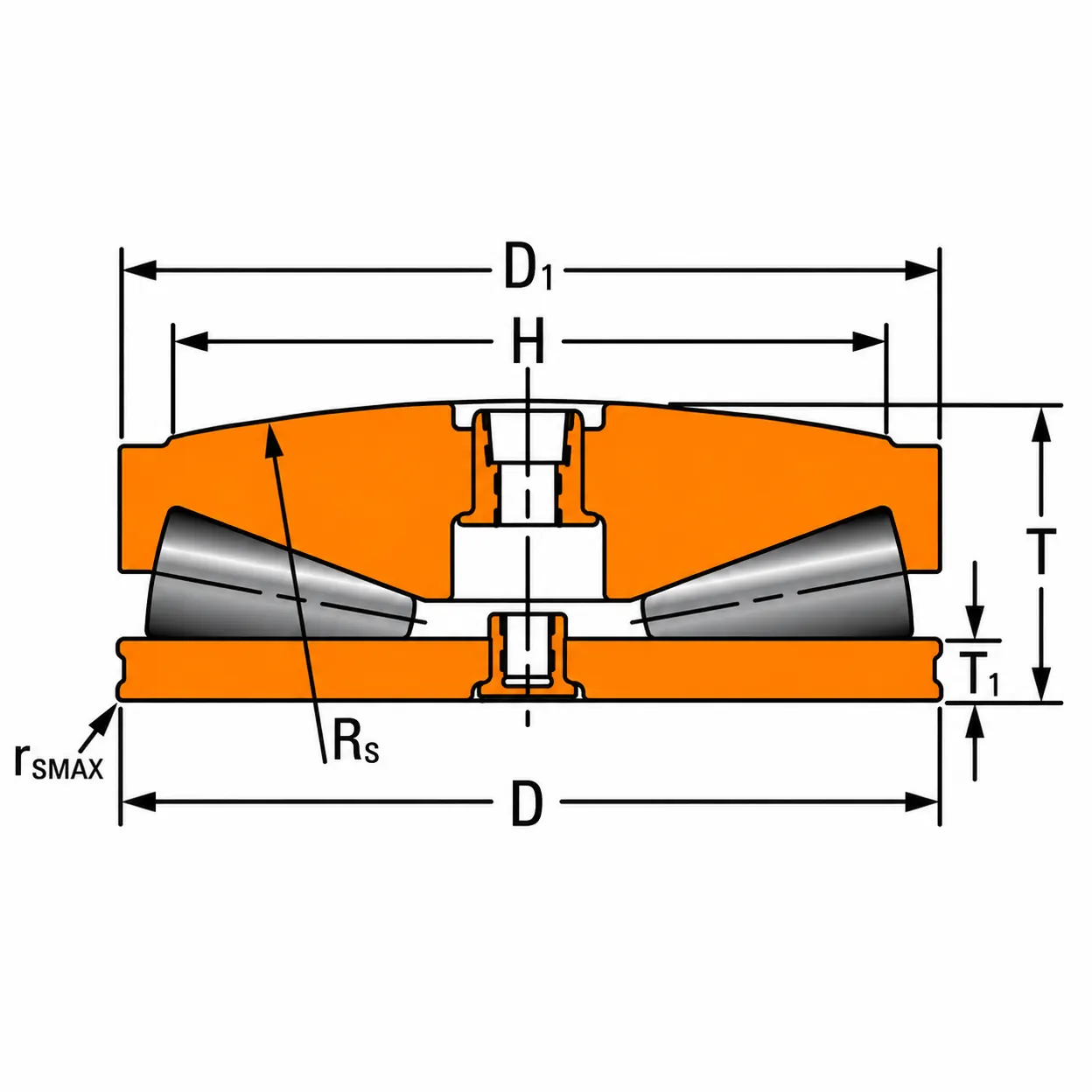

Weight and Dimensions
Large O.D.D: 514.35 mm 20.25 in
Small O.D.D1 (mm): 521.513 mm 20.532 in
Bearing Width (T): 188.722 mm 7.43 in
Flat Race Width (T1): 34.925 mm 1.375 in
Contact Diameter (H): 403.225 mm 15.875 in
Spherical Radius (Rs): 635 mm 25 in
Weight: 238.5 kg 525.9 lbs
Data from Timken (medias)
Static Load Rating CaO: 35630 KN 8010000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN 202 TTSX 942 FE1199 screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage. Its heavy-duty construction provides high axial load capacity and stable support under extreme thrust loads, while the tapered roller design helps reduce friction and improve operating reliability. Specifically designed for rolling mill screwdown mechanisms, the bearing is suitable for steel and metal processing rolling mills in the United States industrial market, where dependable axial load support and durability are essential.
