Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 20206-TVP
Category: Barrel Roller Bearings
1
Weight and Dimensions
Bore (d): 30 mm
Outer (D): 62 mm
Width (B): 16 mm
Weight: 0.207 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 28000 N
Basic Static Load Rating, Radial (C0r): 28500 N
Fatigue Load Limit, Radial (Cur): 2850 N
Limiting Speed (nG): 10800 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Barrel Roller Bearings Guide
Product Description

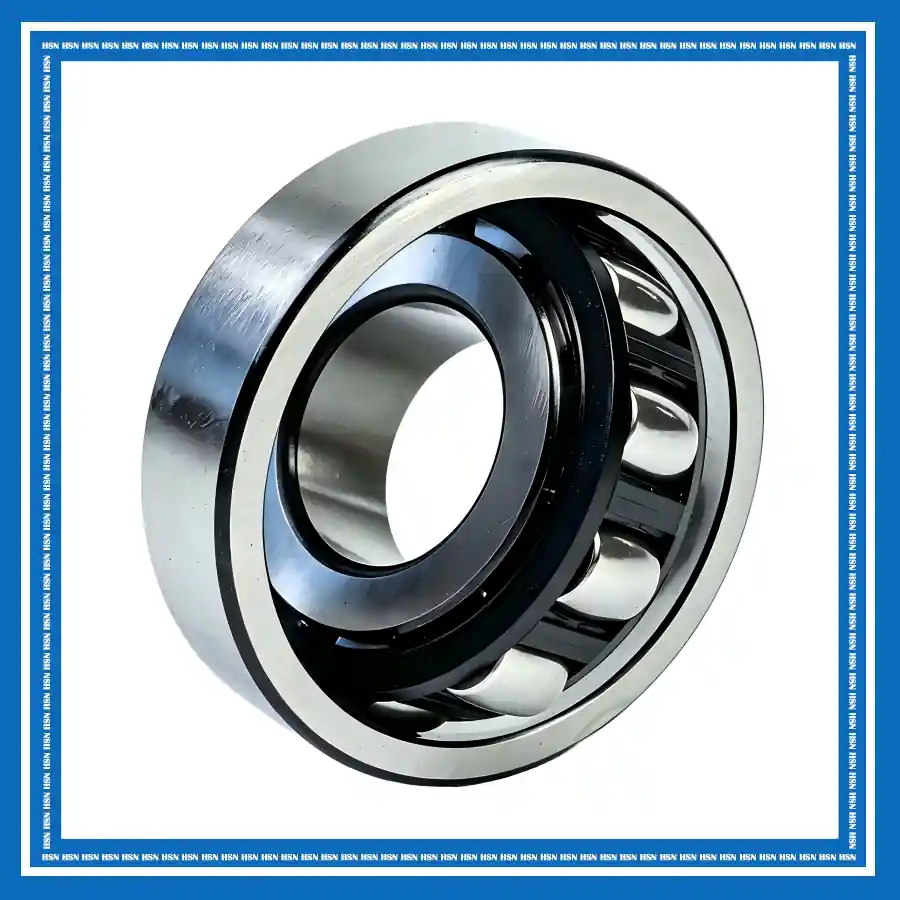

The 20206-TVP FAG barrel roller bearing consists of an inner ring, outer ring, barrel rollers, and a cage. Its self-aligning design compensates for angular misalignment and shaft deflection, while the barrel roller geometry provides very high radial load capacity and good resistance to shock loads. The solid polyamide cage supports smooth roller guidance and low-friction operation.
The 20206-TVP bearing is suitable for electric motors, industrial fans, material handling, agricultural machinery, and general industrial equipment. Its self-aligning capability and high radial load capacity provide reliable performance where radial loads, vibration, shaft deflection, or alignment deviations may occur.
