20208-K-TVP-C3
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 20208-K-TVP-C3
Category: Barrel Roller Bearings
1
Weight and Dimensions
Bore (d): 40 mm
Outer (D): 80 mm
Width (B): 18 mm
Weight: 0.38 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 49500 N
Basic Static Load Rating, Radial (C0r): 53000 N
Fatigue Load Limit, Radial (Cur): 5000 N
Limiting Speed (nG): 8700 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Barrel Roller Bearings Guide
Product Description

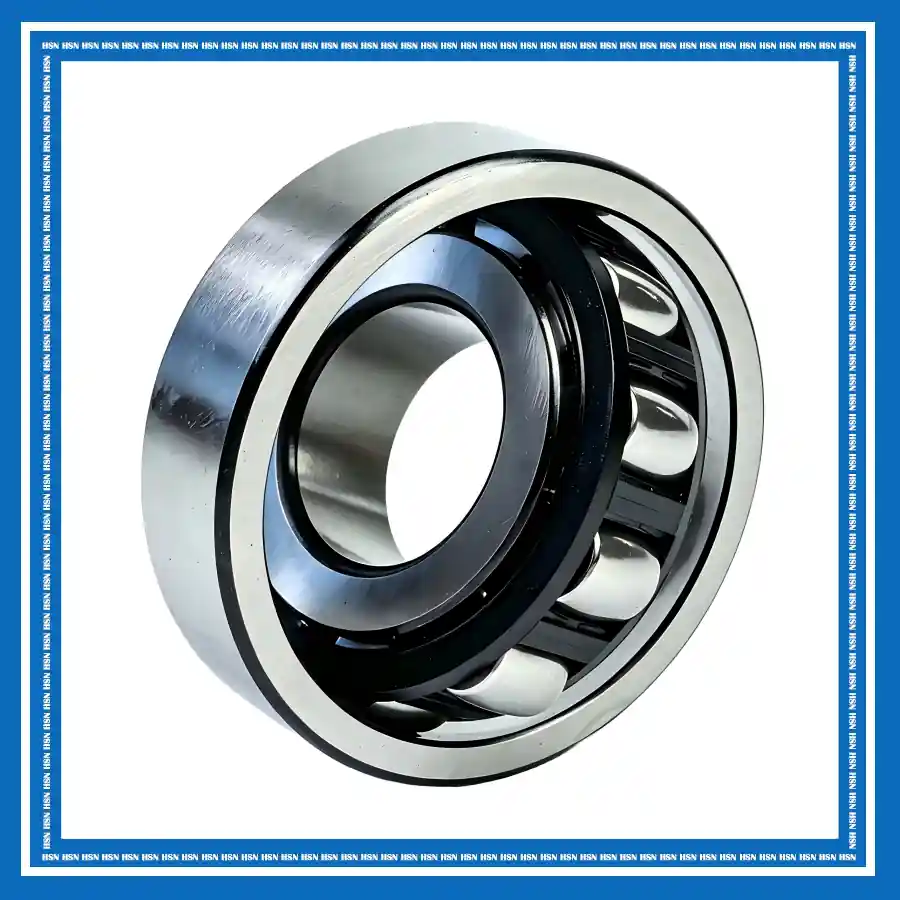

The 20208-K-TVP-C3 FAG barrel roller bearing consists of an inner ring, outer ring, barrel rollers, and a cage. Its self-aligning design compensates for angular misalignment and shaft deflection, while the roller geometry provides very high radial load capacity and good resistance to shock loads. The tapered bore facilitates mounting, while C3 radial internal clearance provides additional operating clearance.
The 20208-K-TVP-C3 bearing is suitable for mining and cement, steel and metallurgy, material handling, construction machinery, and heavy industrial equipment. Its high radial load capacity and self-aligning capability provide reliable performance in applications exposed to heavy loads, shock loads, shaft deflection, and alignment deviations.
