20220-K-MB-C3+H220
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 20220-K-MB-C3+H220
Category: Barrel Roller Bearings
1

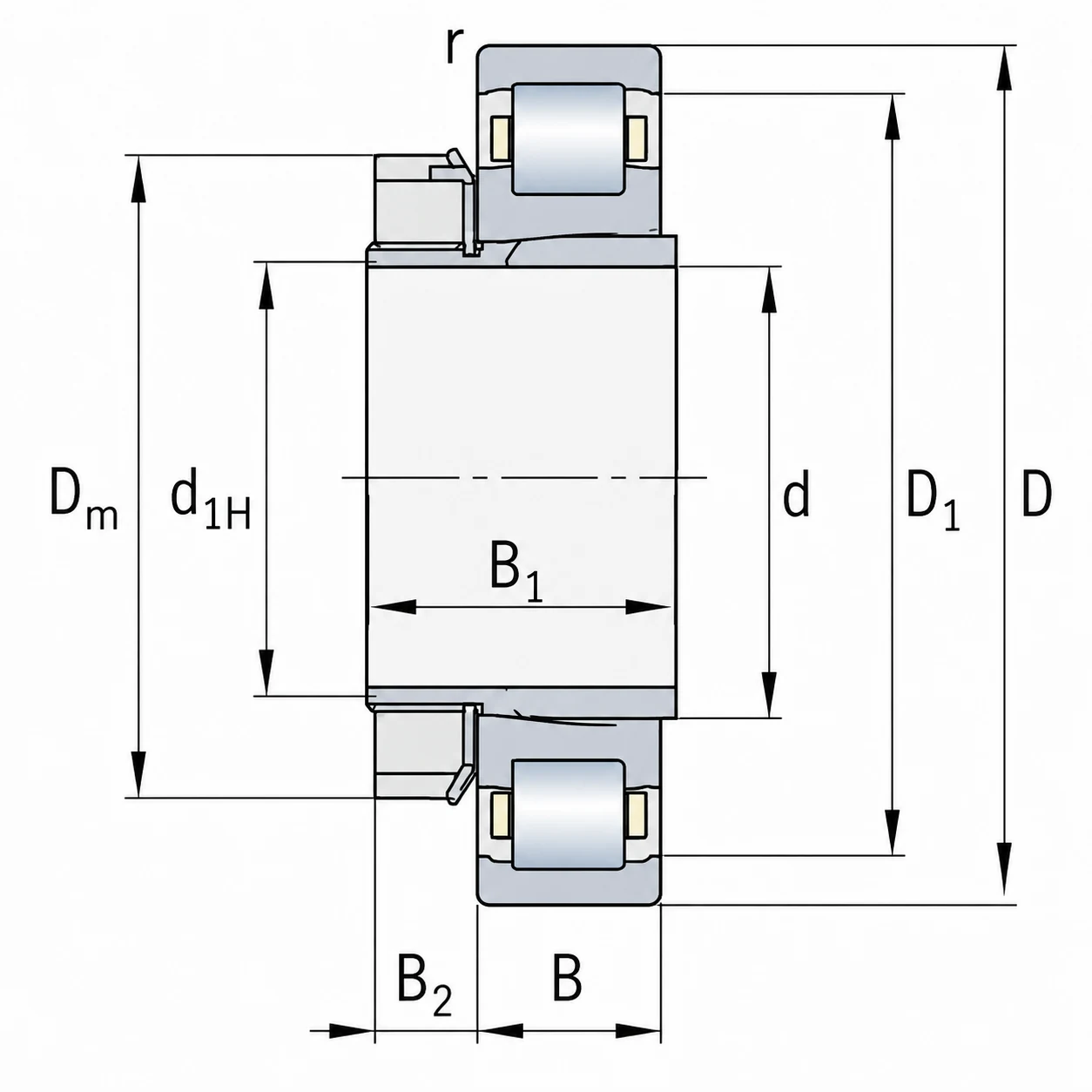

Weight and Dimensions
Bore (d): 100 mm
Outer (D): 180 mm
Width (B): 34 mm
Weight: 5.42 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 225000 N
Basic Static Load Rating, Radial (C0r): 290000 N
Fatigue Load Limit, Radial (Cur): 28000 N
Limiting Speed (nG): 4000 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Barrel Roller Bearings Guide
Product Description
The 20220-K-MB-C3+H220 FAG barrel roller bearing consists of an inner ring, outer ring, barrel rollers, a cage, and an adapter sleeve. Its self-aligning design compensates for angular misalignment and shaft deflection, while the barrel roller geometry provides very high radial load capacity and good resistance to shock loads. The tapered bore works with the adapter sleeve for secure mounting on cylindrical shafts, while C3 radial internal clearance provides additional operating clearance.
The 20220-K-MB-C3+H220 bearing is suitable for mining and cement, steel and metallurgy, material handling, construction machinery, heavy industrial equipment, and industrial drive systems. Its high radial load capacity and self-aligning capability support heavy-duty operation, while the adapter sleeve provides a practical and flexible mounting solution for cylindrical shafts.
