20228-K-MB-C3
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 20228-K-MB-C3
Category: Barrel Roller Bearings
1
Weight and Dimensions
Bore (d): 140 mm
Outer (D): 250 mm
Width (B): 42 mm
Weight: 8.98 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 395000 N
Basic Static Load Rating, Radial (C0r): 540000 N
Fatigue Load Limit, Radial (Cur): 49500 N
Limiting Speed (nG): 3050 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Barrel Roller Bearings Guide
Product Description

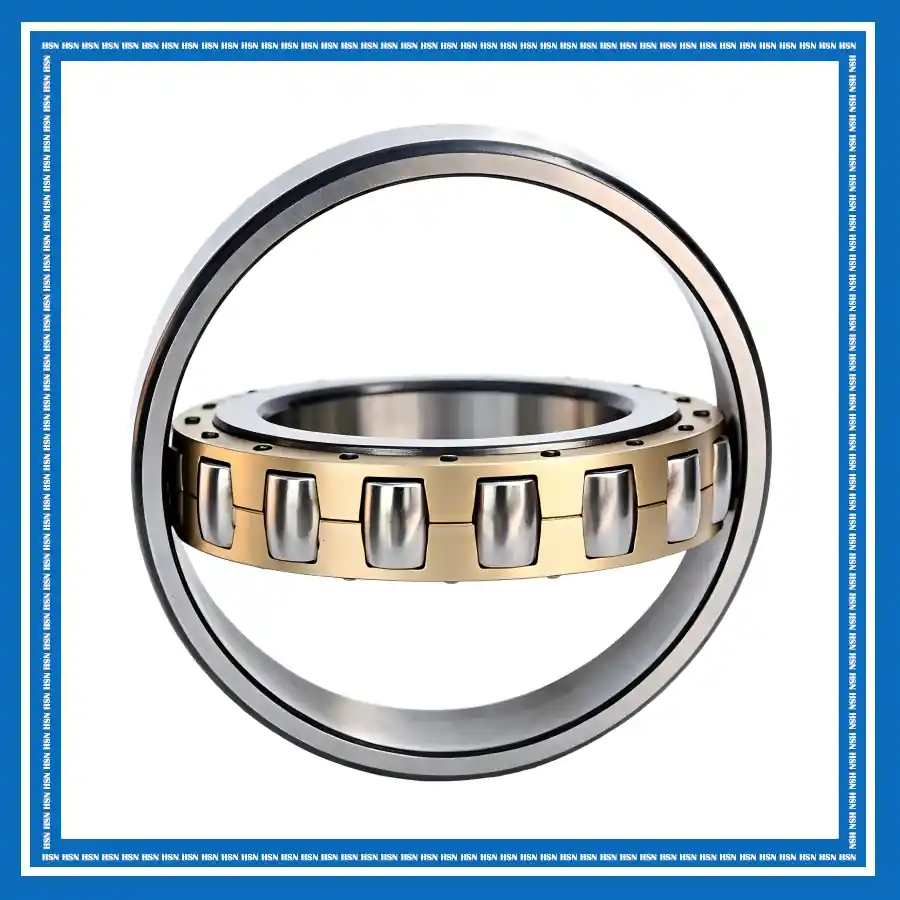

The 20228-K-MB-C3 FAG barrel roller bearing consists of an inner ring, outer ring, barrel rollers, and a cage. Its self-aligning design compensates for angular misalignment between the shaft and housing, while the barrel roller geometry provides very high radial load capacity and reliable performance under shock loads. The tapered bore allows easier mounting, and the C3 radial internal clearance provides additional operating clearance for demanding conditions.
The 20228-K-MB-C3 bearing is suitable for mining and cement, steel and metallurgy, construction machinery, material handling, and heavy industrial equipment. Its high radial load capacity, self-aligning capability, and increased internal clearance make it suitable for applications exposed to vibration, impact loads, shaft deflection, and temperature variations.
