20236-MB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 20236-MB
Category: Barrel Roller Bearings
1
Weight and Dimensions
Bore (d): 180 mm
Outer (D): 320 mm
Width (B): 52 mm
Weight: 18.4 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 590000 N
Basic Static Load Rating, Radial (C0r): 850000 N
Fatigue Load Limit, Radial (Cur): 73000 N
Limiting Speed (nG): 2420 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Barrel Roller Bearings Guide
Product Description

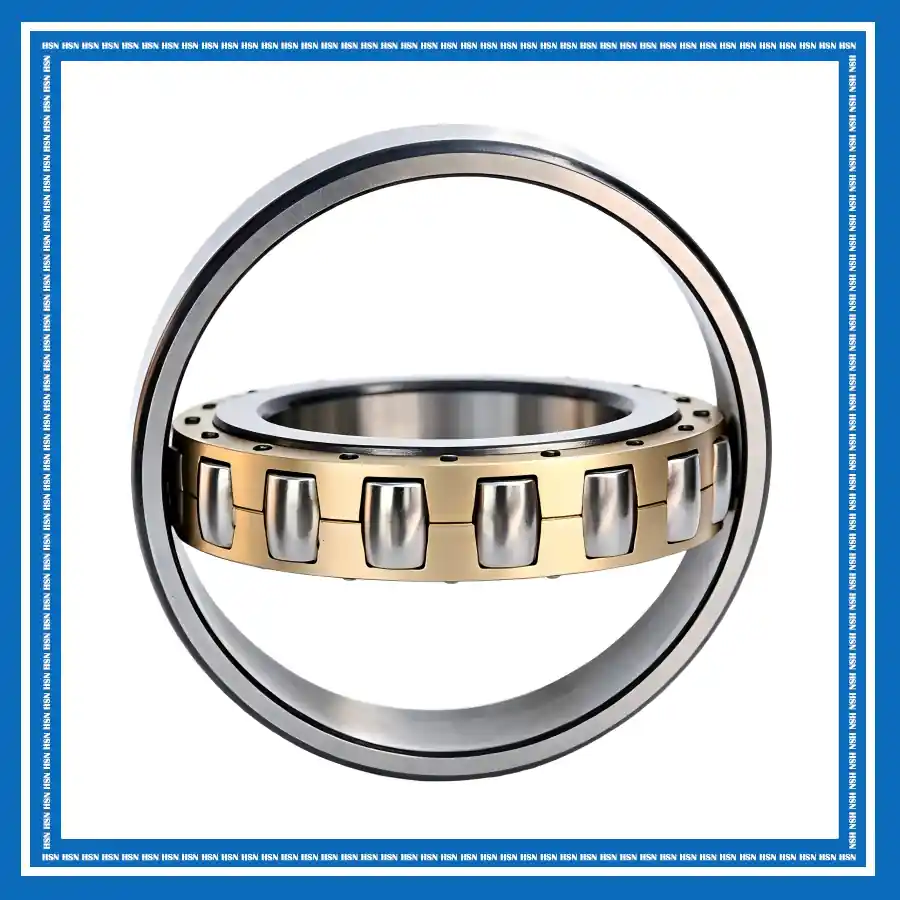

The 20236-MB FAG barrel roller bearing consists of an inner ring, outer ring, barrel rollers, and a cage. Its self-aligning design compensates for angular misalignment and shaft deflection, while the barrel roller geometry provides very high radial load capacity and stable performance under heavy loads. The machined brass cage offers strong roller guidance and high mechanical strength, supporting reliable operation under demanding conditions.
The 20236-MB bearing is suitable for steel and metallurgy, mining and cement, material handling, construction machinery, and industrial drive systems. Its high radial load capacity, self-aligning capability, and robust cage design make it suitable for applications exposed to heavy loads, vibration, and impact conditions.
