21307-E1-XL-K-TVPB

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 21307-E1-XL-K-TVPB

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 35 mm

Outer (D): 80 mm

Width (B): 21 mm

Weight: 0.496 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 83 KN

Basic Static Load Rating, Radial (C_0r): 74 KN

Fatigue Load Limit, Radial (C_ur): 8100 N

Limiting Speed (n_G): 10900 r/min

Reference Speed (n_ϑr): 6800 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

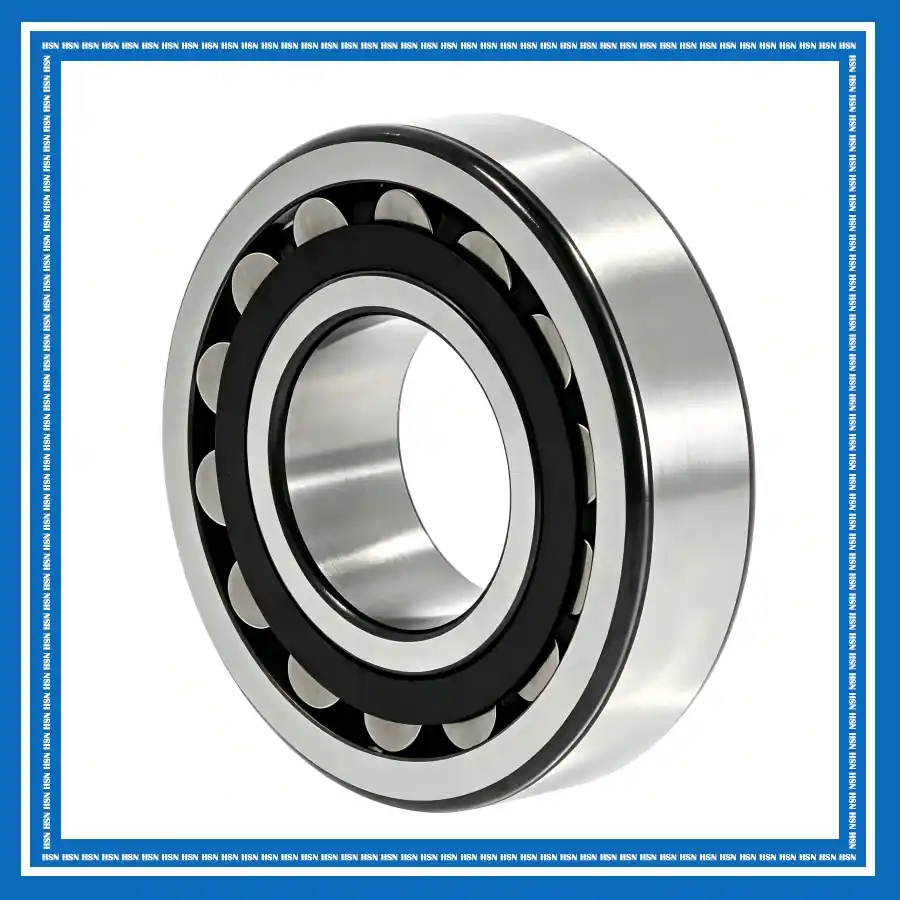

The 21307-E1-XL-K-TVPB FAG spherical roller bearing consists of an inner ring, outer ring, two rows of symmetrical spherical rollers, and cages. Its self-aligning design compensates for angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The E1 design provides increased load capacity, while X-life improves operating performance and service life. In addition, the tapered bore facilitates mounting, and the solid glass-fiber reinforced polyamide cages provide low mass and smooth operation. Schaeffler identifies K as a 1:12 tapered bore and TVPB as an inner-ring-guided solid polyamide cage.

The 21307-E1-XL-K-TVPB bearing is suitable for paper machinery, material handling, industrial transmissions, mining and cement, agricultural machinery, and general industrial equipment. Its high load capacity and self-aligning capability make it suitable for applications exposed to heavy radial loads, vibration, shaft deflection, and alignment deviations.
