21318-E1-XL-K+H318

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 21318-E1-XL-K+H318

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 90 mm

Outer (D): 190 mm

Width (B): 43 mm

Weight: 7.67 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 380 KN

Basic Static Load Rating, Radial (C_0r): 415 KN

Fatigue Load Limit, Radial (C_ur): 47000 N

Limiting Speed (n_G): 4850 r/min

Reference Speed (n_ϑr): 3600 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

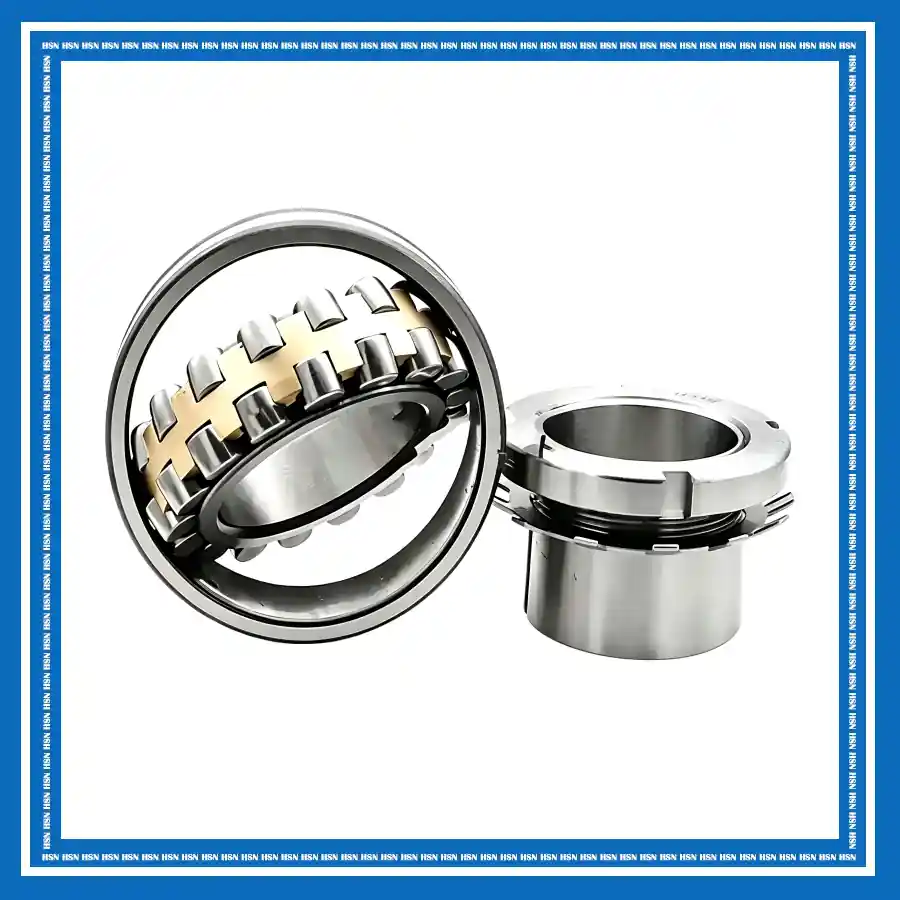

The 21318-E1-XL-K+H318 FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, cages, and an adapter sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The E1 design provides increased load carrying capacity, while X-life improves operating performance and service life. In addition, the K tapered bore works with the H318 adapter sleeve, allowing secure mounting on cylindrical shafts and simplifying installation.

The 21318-E1-XL-K+H318 bearing is suitable for mining and cement, material handling, paper machinery, industrial transmissions, agricultural machinery, and general industrial equipment. Its high load capacity and self-aligning capability support applications with heavy loads and alignment deviations. Meanwhile, the adapter sleeve provides a practical and flexible mounting solution for cylindrical shafts.
