2309-K-TVH-C3+H2309
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 2309-K-TVH-C3+H2309
Category: Self-aligning Ball Bearings
1

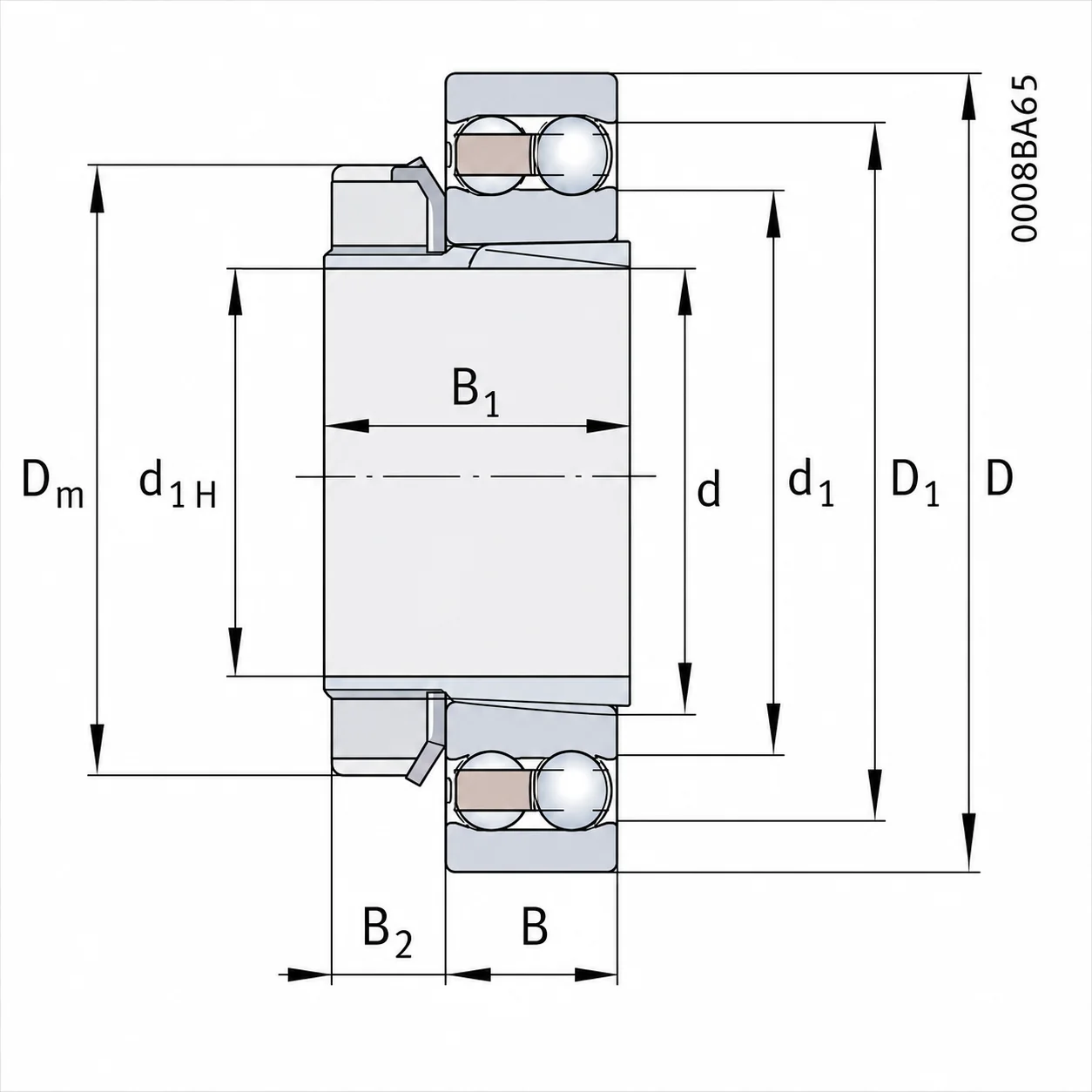

Weight and Dimensions
Bore (d): 45 mm
Outer (D): 100 mm
Width (B): 36 mm
Weight: 1.488 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 55000 N
Basic Static Load Rating, Radial (C0r): 16500 N
Fatigue Load Limit, Radial (Cur): 1030 N
Limiting Speed (nG): 7000 rpm
Reference Speed (nϑr): 8000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Self-aligning Ball Bearings
Product Description
The 2309-K-TVH-C3+H2309 FAG self-aligning ball bearing consists of a spherical outer raceway, tapered-bore inner ring, two rows of balls, a PA66 solid cage, and an adapter sleeve. The self-aligning design compensates for shaft deflection and misalignment, while C3 clearance supports reliable operation. The adapter sleeve also provides convenient mounting on cylindrical shafts.
The 2309-K-TVH-C3+H2309 bearing is widely used in textile machinery, industrial fans, conveying systems, and general transmission equipment. It is suitable for applications requiring self-alignment, smooth operation, and flexible shaft mounting.
