7302-B-XL-JP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 7302-B-XL-JP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 15 mm
Outer (D): 42 mm
Width (B): 13 mm
Weight: 0.084 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 14200 N
Basic Static Load Rating, Radial (C0r): 7200 N
Fatigue Load Limit, Radial (Cur): 485 N
Limiting Speed (nG): 22200 rpm
Reference Speed (nϑr): 14200 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

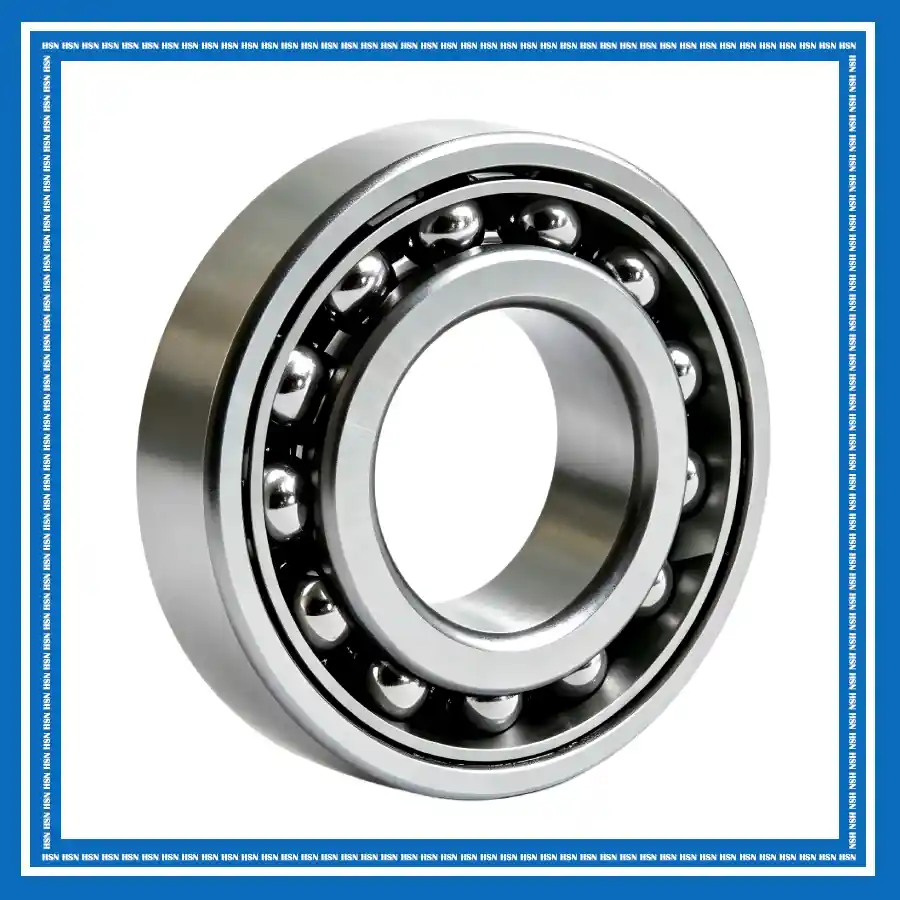

The 7302-B-XL-JP FAG angular contact ball bearing consists of an inner ring, an outer ring, balls, and a sheet steel cage. The 40° contact angle provides high axial load capacity while supporting combined radial and axial loads. The X-life design improves load-carrying performance and service life, while the robust steel cage provides reliable ball guidance and stable operation.
The 7302-B-XL-JP bearing is widely used in industrial gearboxes, hydraulic pumps, industrial fans, and power transmission equipment. It is particularly suitable for applications requiring high axial load capacity, combined load support, robust cage performance, and reliable continuous operation.
