AT742
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Rollway/ OEM
Bearing Number: AT742
Category: Cylindrical Roller Thrust Bearings
1
Weight and Dimensions
Bore (B): 127.00 mm 5.000 in
Outside Diameter (D): 317.50 mm 12.500 in
Height H (H): 66.68 mm 2.625 in
Weight: 28.60 kg 63.00 lbs
Data from Rollway (medias)
Basic Dynamic Rating (C): 1236930 N 276100 lbf
Basic Static Rating (C0): 5125120 N 1144000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Rollway Cylindrical Roller Thrust Bearings
Product Description

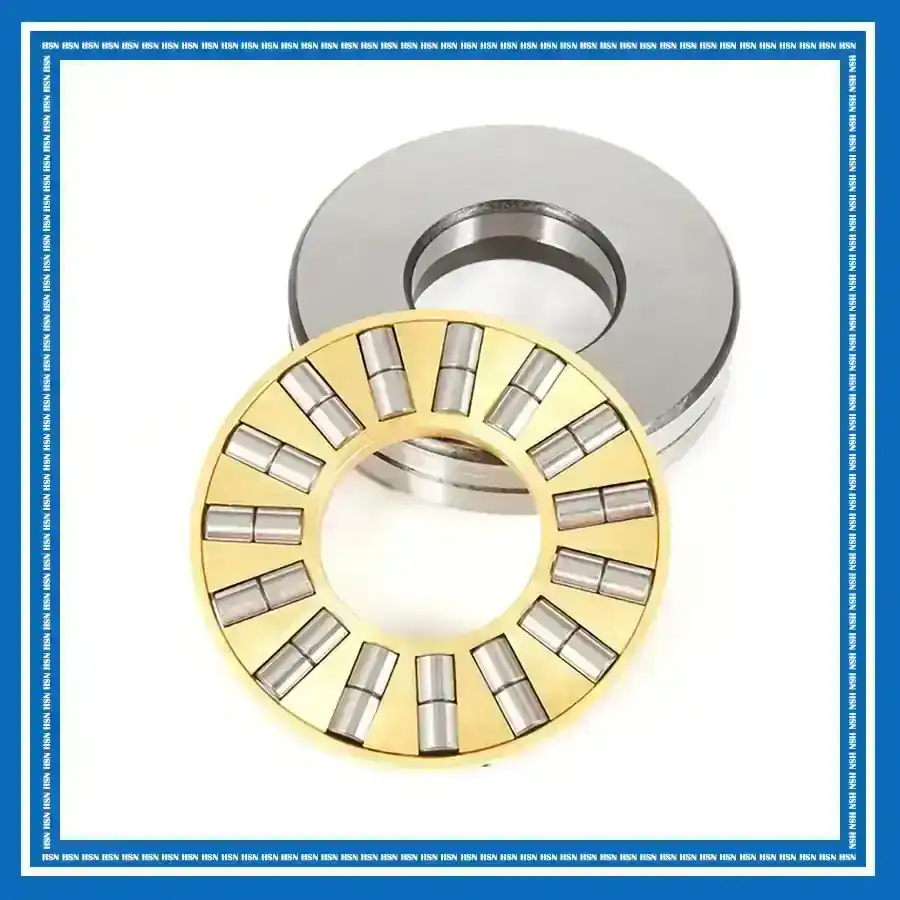

The Rollway AT742 self aligning cylindrical roller thrust bearings feature precision-ground shaft plates, crowned cylindrical rollers with sphered ends, a machined brass roller-riding cage, and a matched pair of convex and concave aligning plates. The self-aligning design accommodates up to 3° of initial static misalignment, while the crowned rollers help distribute axial loads evenly and reduce edge stresses. Designed to support heavy axial loads in one direction, the bearing provides stable operation and reliable performance in vertical shaft applications, including extruder gear drives, pumps, and industrial machinery across the United States industrial market.
