BAC70/500
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: BAC70/500
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (B): 500 mm 19.6850 in
Outer (D): 720 mm 28.3465 in
Width (W): 100 mm 3.9370 in
Weight: 130 kg 287 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 638 KN 143500 lbs
Static Capacity (Co) : 1400 KN 314800 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Ball Bearings Guide
Product Description

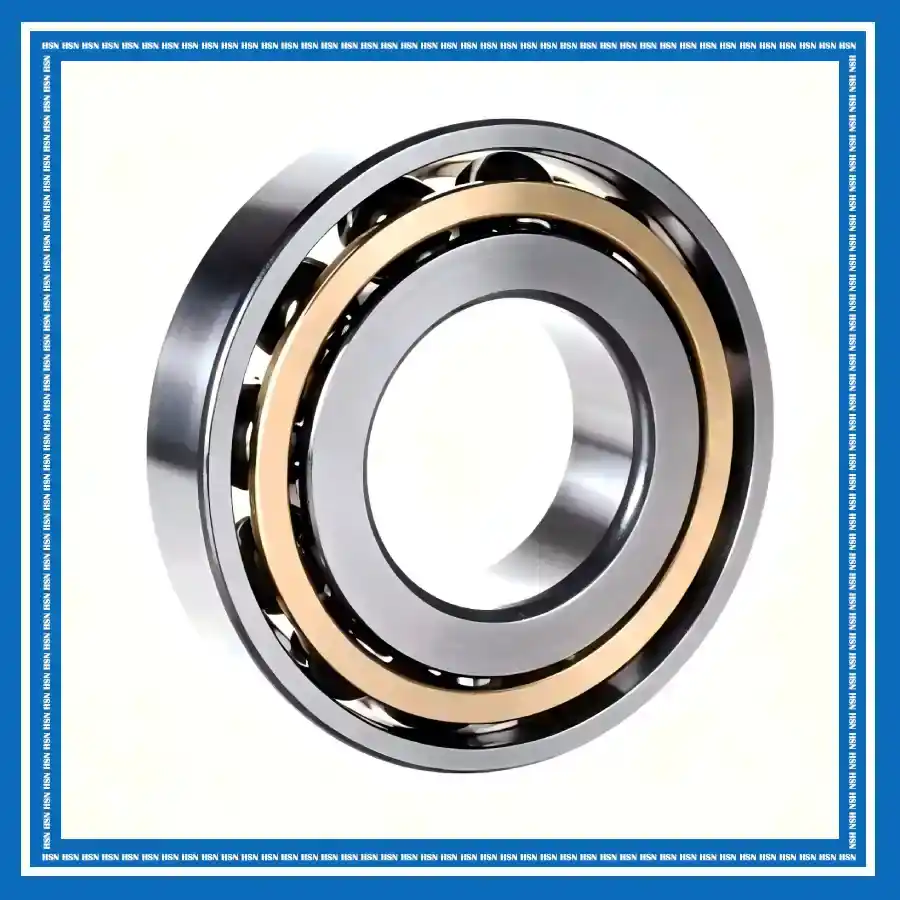

The American Roller Bearing BAC70/500 angular contact ball bearing consists of inner and outer rings, precision steel balls, and a cage that provides reliable ball guidance and spacing. Its angular contact raceway design provides high rigidity and allows the bearing to support combined radial and axial loads while maintaining stable operation under demanding conditions. The precision internal geometry helps ensure smooth rotation and reliable load distribution. It is suitable for machine tools, industrial gearboxes, pumps, compressors, heavy-duty drives, and other industrial equipment requiring reliable combined load support.
