BAC7084
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM

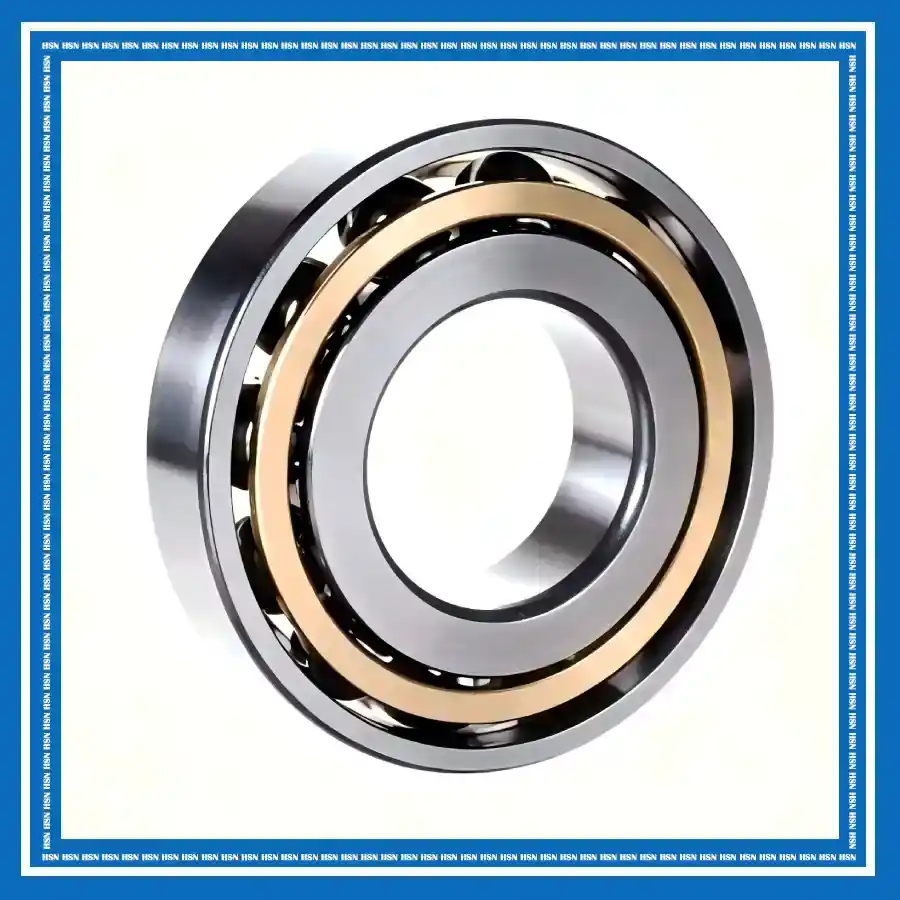

Bearing Number: BAC7084
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (B): 420 mm 16.5354 in
Outer (D): 620 mm 24.4094 in
Width (W): 90 mm 3.5433 in
Weight: 89 kg 195 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 540 KN 121400 lbs
Static Capacity (Co) : 1060 KN 238300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Ball Bearings Guide
Product Description
The American Roller Bearing BAC7084 angular contact ball bearing consists of inner and outer rings, precision steel balls, and a cage that provides reliable ball guidance and spacing. Its angular contact raceway design provides high rigidity and allows the bearing to support combined radial and axial loads while maintaining stable operation under demanding conditions. The precision internal geometry helps ensure smooth rotation and reliable load distribution. It is suitable for machine tools, industrial gearboxes, pumps, compressors, heavy-duty drives, and other industrial equipment requiring reliable combined load support.
