C2215-XL

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: C2215-XL

Category: Toroidal Roller Bearings

1

Weight and Dimensions

Bore (d): 75 mm

Outer (D): 130 mm

Width (B): 31 mm

Weight: 1.69 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 197000 N

Basic Static Load Rating, Radial (C_0r): 207000 N

Fatigue Load Limit, Radial (C_ur): 33000 N

Limiting Speed (n_G): 7000 r/min

Reference Speed (n_ϑr): 3250 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Toroidal Roller Bearings Guide

Product Description

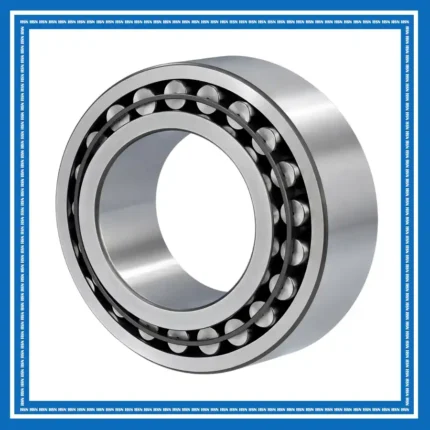

The C2215-XL FAG toroidal roller bearing consists of an inner ring, outer ring, and a single row of long crowned rollers. Its specially matched roller and raceway profiles provide very high radial load capacity and self-aligning capability, while allowing axial displacement within the bearing. This design accommodates shaft deflection, angular misalignment, and thermal expansion with low friction. In addition, X-life improves operating performance and service life, supporting stable operation under demanding radial loads.

The C2215-XL bearing is suitable for paper machinery, steel and metallurgy, mining and cement, power generation, material handling, and heavy industrial equipment. Its high radial load capacity and self-aligning capability help manage heavy radial loads and shaft deflection. Meanwhile, internal axial displacement compensates for thermal shaft expansion, making the bearing suitable for applications involving misalignment, temperature changes, and axial movement.
