ML-330
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Rollway/ OEM
Bearing Number: ML-330
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (B): 150 mm 5.9055 in
Outside Diameter (D): 320 mm 12.5984 in
Width (W): 65.0 mm 2.5591 in
Flange O.D Inner (Fi): 192.8 mm 7.5906 in
Flange O.D Inner (Ri): 190.0 mm 7.4803 in
Flange ID Outer (Fo): 264.4 mm 10.4094 in
Flange ID Outer (Ri): 280.0 mm 11.0236 in
Data from Rollway (medias)
Dynamic Capacity (C): 785422 N 176570 lbf
Static Capacity (Ca): 969223 N 217890 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Rollway Cylindrical Roller Bearings Guide
Product Description

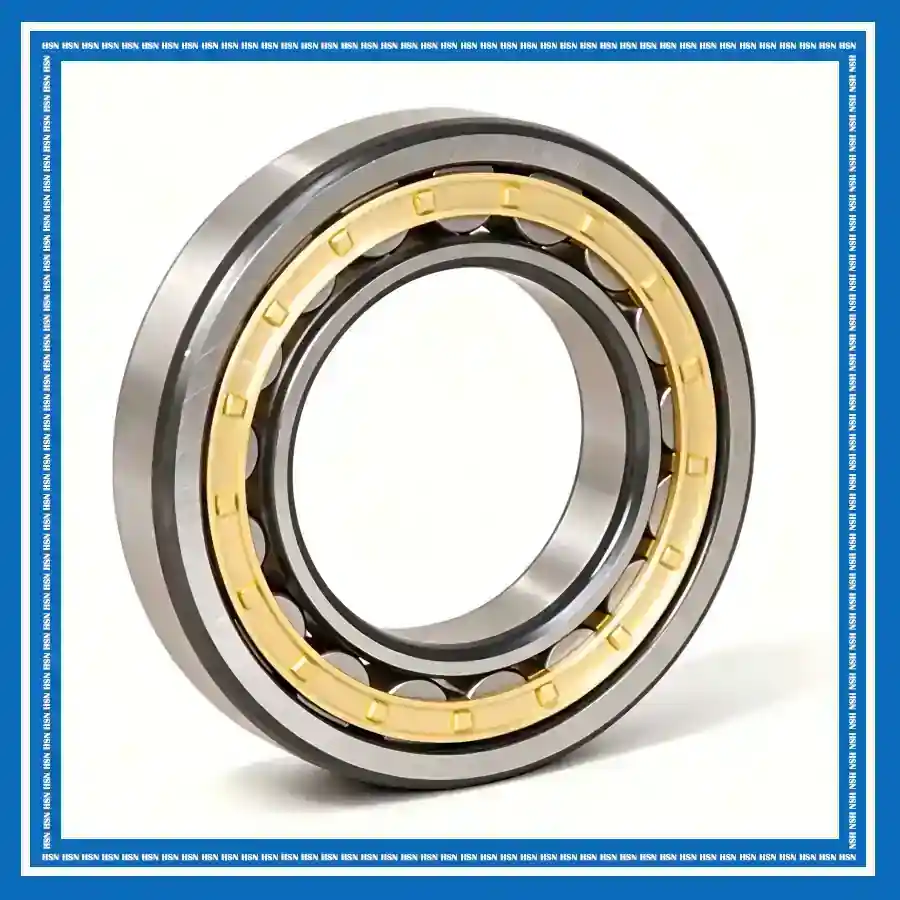

The Rollway ML-330 Cylindrical Radial Roller Bearing features a separable single-flanged outer ring, a double-flanged inner ring, crowned cylindrical rollers, and a precision-engineered retainer. Manufactured from through-hardened bearing-grade steel, its precision-ground raceways and crowned rollers provide high radial load capacity while helping reduce edge stresses. The design allows axial displacement in one direction while providing axial location and supporting light thrust loads in the opposite direction. The ML-330 bearing is suitable for industrial gearboxes, pumps, and heavy-duty machinery requiring reliable radial support and controlled axial movement, meeting the demanding requirements of the United States industrial market.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
