Specifications
Availability: 100 PCS
Brand: HSN/ Rollway/ OEM
Bearing Number: ML-5128
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (B): 140 mm 5.5118 in
Outside Diameter (D): 220 mm 8.6614 in
Width (W): 63.5 mm 2.5000 in
Flange O.D Inner (Fi): 169.4 mm 6.6693 in
Flange O.D Inner (Ri): 161.9 mm 6.3740 in
Flange ID Outer (Fo): 192.9 mm 7.5945 in
Flange ID Outer (Ri): 200.0 mm 7.8740 in
Data from Rollway (medias)
Dynamic Capacity (C): 409414 N 92040 lbf
Static Capacity (Ca): 694590 N 156150 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Rollway Cylindrical Roller Bearings Guide
Product Description

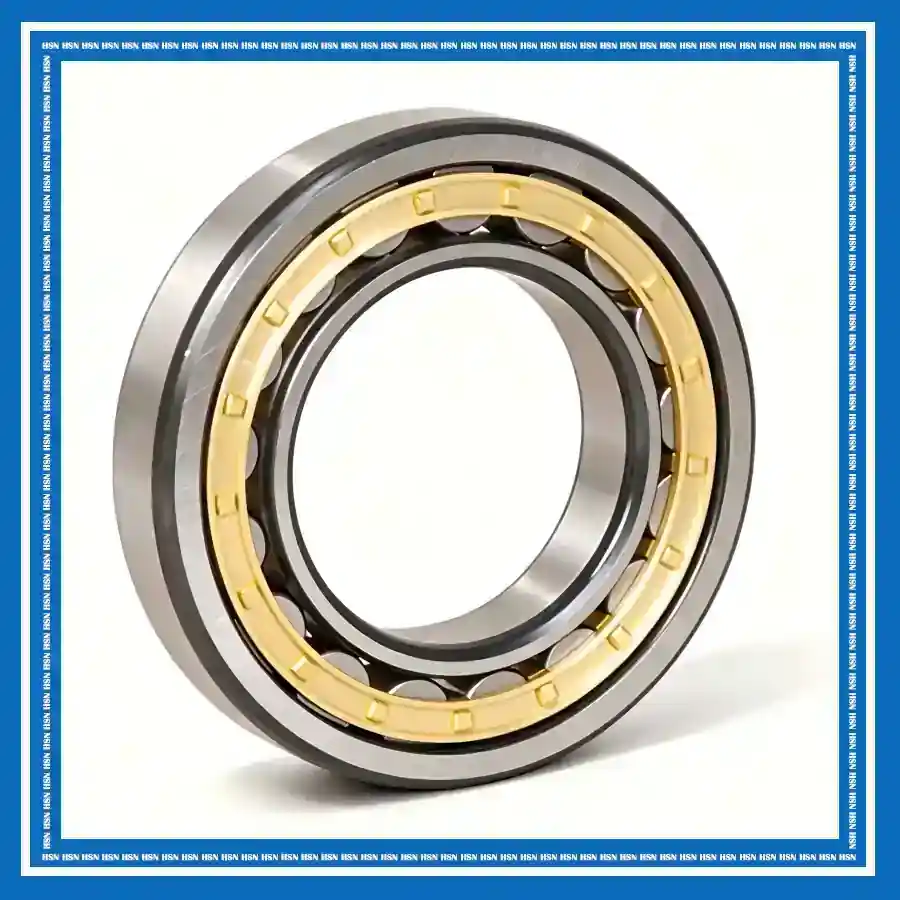

The Rollway ML-5128 Cylindrical Radial Roller Bearing features a separable single-flanged outer ring, a double-flanged inner ring, crowned cylindrical rollers, and a precision-engineered retainer. Manufactured from through-hardened bearing-grade steel, its precision-ground raceways and crowned rollers provide high radial load capacity while helping reduce edge stresses. The design allows axial displacement in one direction while providing axial location and supporting light thrust loads in the opposite direction. The ML-5128 bearing is suitable for industrial gearboxes, pumps, and heavy-duty machinery requiring reliable radial support and controlled axial movement, meeting the demanding requirements of the United States industrial market.
