N238-E-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: N238-E-M1
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 190 mm
Outer (D): 340 mm
Width (B): 55 mm
Weight: 22.8 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 680000 N
Basic Static Load Rating, Radial (C0r): 930000 N
Fatigue Load Limit, Radial (Cur): 111000 N
Limiting Speed (nG): 3050 rpm
Reference Speed (nϑr): 1720 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

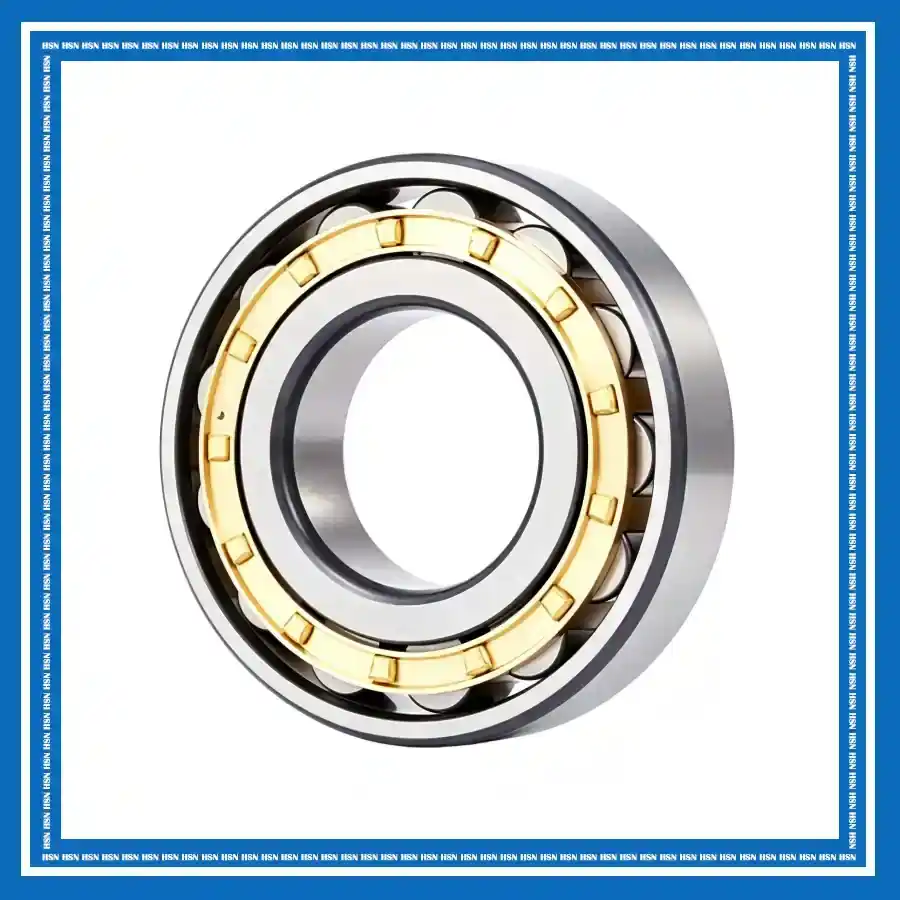

The N238-E-M1 FAG single row cylindrical roller bearing consists of an inner ring with two ribs, a ribless outer ring, cylindrical rollers, and a roller-guided brass cage. The E design provides increased radial load capacity, while the robust M1 brass cage ensures reliable roller guidance and stable operation under demanding loads.
The N238-E-M1 bearing is suitable for heavy industrial gearboxes, mining equipment, large drive systems, and processing machinery. The N design allows axial displacement within the bearing, making it ideal for non-locating positions exposed to high radial loads and thermal shaft expansion.
