NUP2232-E-XL-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NUP2232-E-XL-M1
Category: Cylindrical Roller Bearings
1

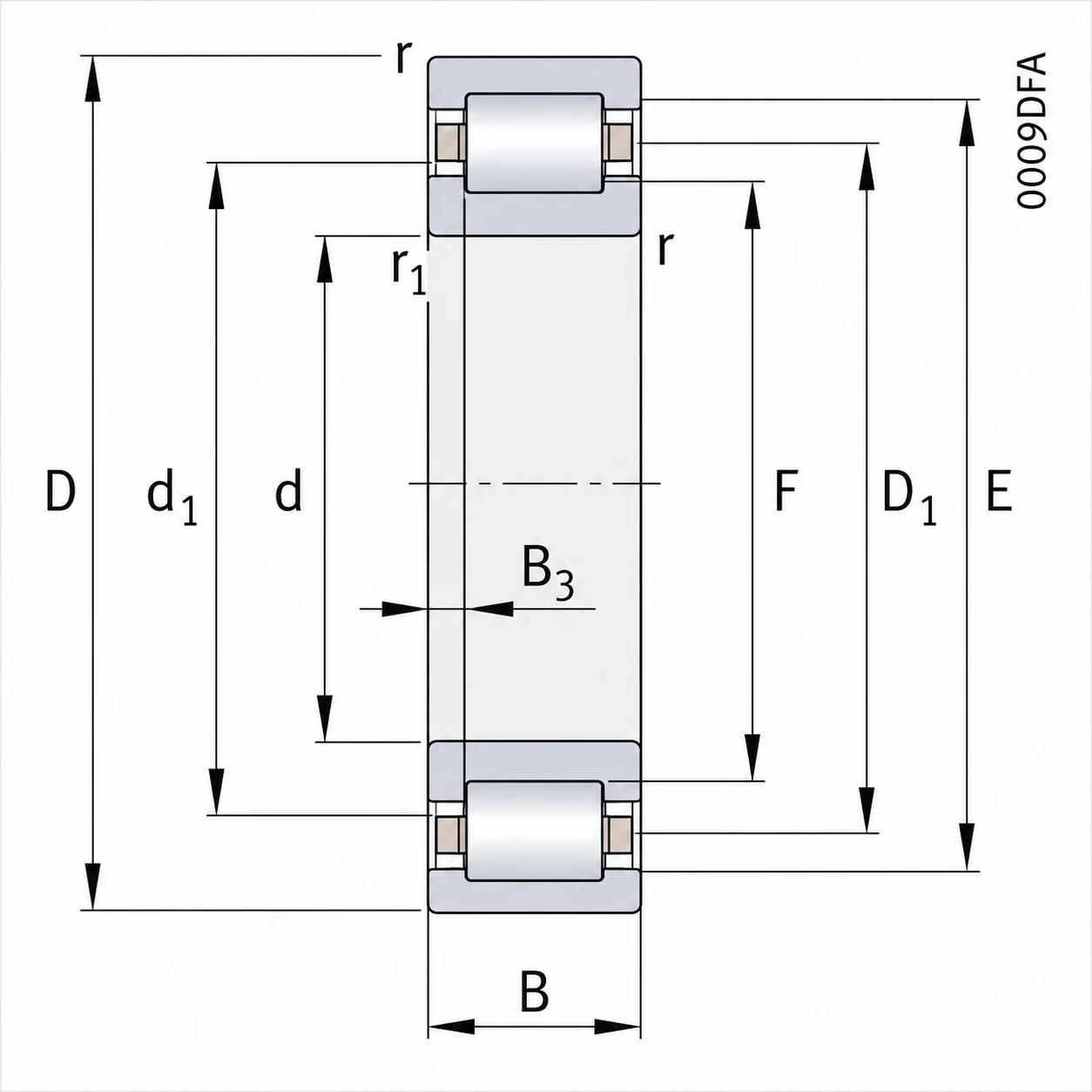

Weight and Dimensions
Bore (d): 160 mm
Outer (D): 290 mm
Width (B): 80 mm
Weight: 24.5 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 940000 N
Basic Static Load Rating, Radial (C0r): 1170000 N
Fatigue Load Limit, Radial (Cur): 183000 N
Limiting Speed (nG): 3600 rpm
Reference Speed (nϑr): 1660 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NUP2232-E-XL-M1 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass cage. The E design provides increased load-carrying capacity, while X-life technology improves operating performance and service life. The robust M1 brass cage provides reliable roller guidance under heavy and demanding loads.
The NUP2232-E-XL-M1 is a locating bearing suitable for heavy industrial gearboxes, mining machinery, steel processing equipment, and large drive systems. Its high radial load capacity and ability to accommodate axial loads in both directions provide reliable shaft location under heavy loads and continuous operation.
