NUP2244-EX-TB-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NUP2244-EX-TB-M1
Category: Cylindrical Roller Bearings
1

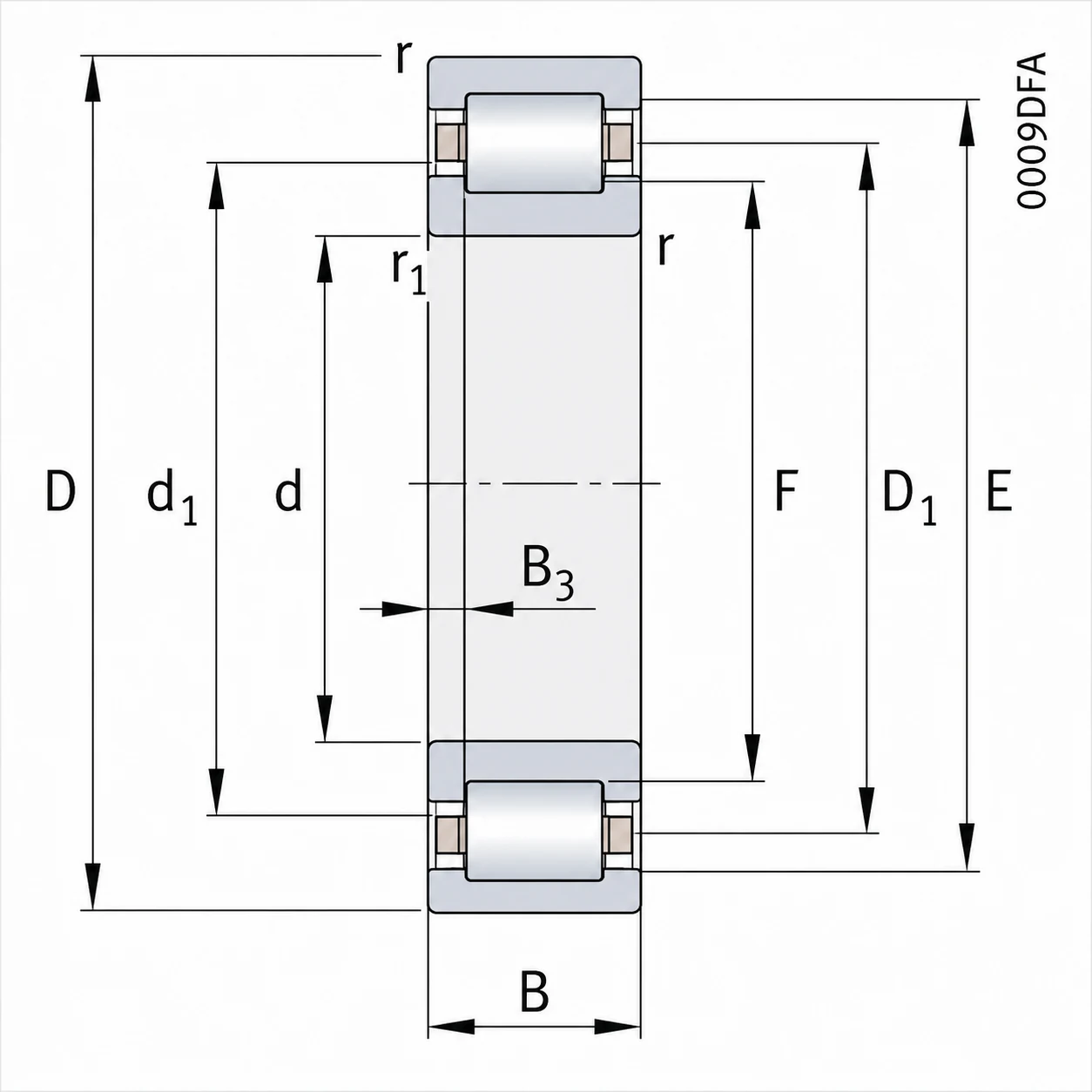

Weight and Dimensions
Bore (d): 220 mm
Outer (D): 400 mm
Width (B): 108 mm
Weight: 63.4 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1630000 N
Basic Static Load Rating, Radial (C0r): 2370000 N
Fatigue Load Limit, Radial (Cur): 250000 N
Limiting Speed (nG): 2440 rpm
Reference Speed (nϑr): 1000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NUP2244-EX-TB-M1 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass cage. The EX design provides enhanced load-carrying performance, while the TB design optimizes roller-to-rib contact for higher axial load capacity and lower friction. The robust M1 brass cage supports reliable operation under heavy loads.
The NUP2244-EX-TB-M1 is a locating bearing suitable for steel processing equipment, rolling mill drive systems, heavy-duty gearboxes, and large industrial transmissions. Its enhanced load capacity, optimized rib contact, and bidirectional axial location provide reliable shaft support under heavy and demanding operating conditions.
