NUP238-E-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NUP238-E-M1
Category: Cylindrical Roller Bearings
1

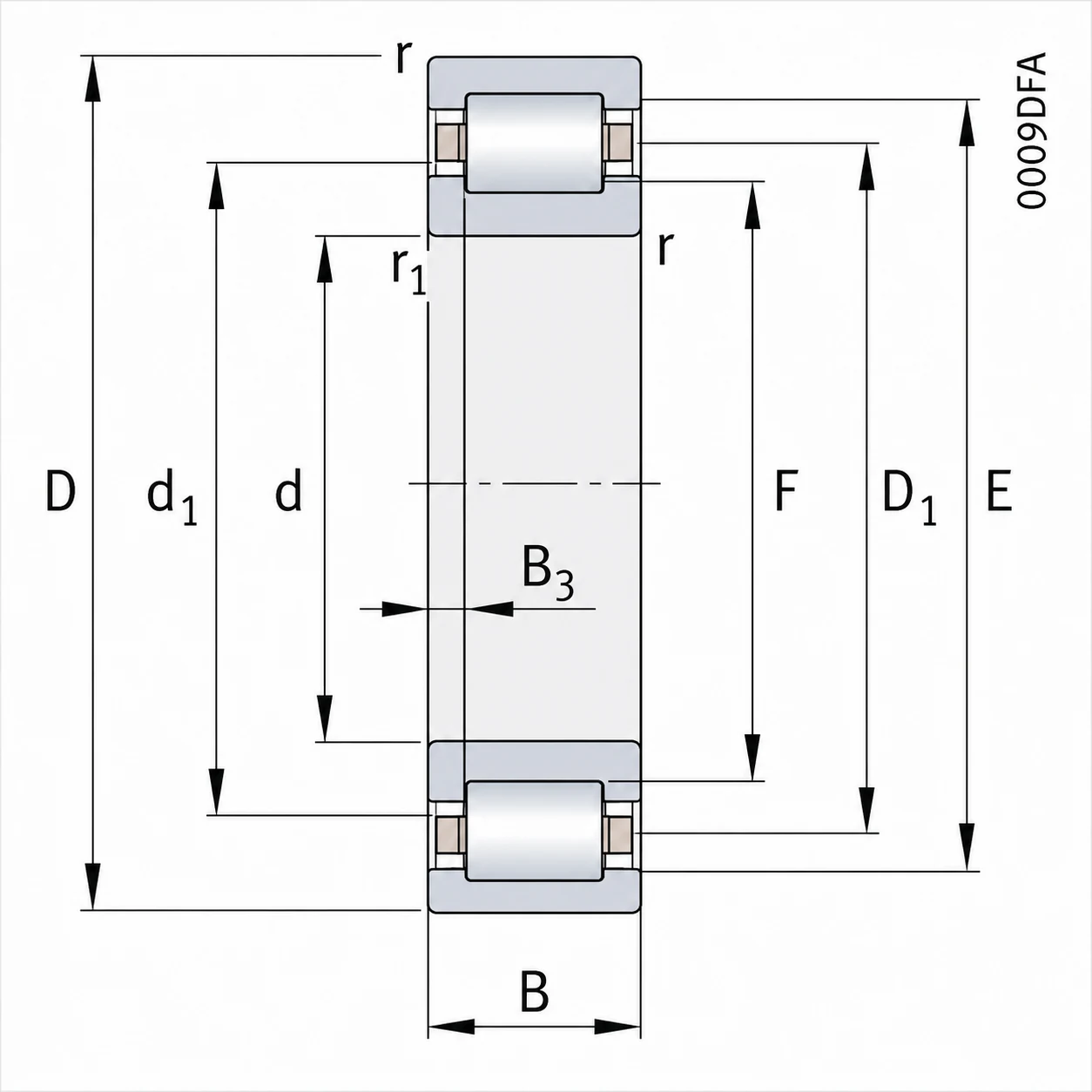

Weight and Dimensions
Bore (d): 190 mm
Outer (D): 340 mm
Width (B): 55 mm
Weight: 23.5 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 680000 N
Basic Static Load Rating, Radial (C0r): 930000 N
Fatigue Load Limit, Radial (Cur): 111000 N
Limiting Speed (nG): 3050 rpm
Reference Speed (nϑr): 1720 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NUP238-E-M1 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass cage. The E design provides increased load-carrying capacity, while the robust M1 brass cage provides reliable roller guidance and stable operation under demanding loads.
The NUP238-E-M1 is a locating bearing suitable for industrial gearboxes, large electric motors, generators, and power transmission equipment. Its high radial load capacity and ability to accommodate axial loads in both directions provide reliable shaft location for heavy-duty and continuous operation.
