NUP306-E-XL-TVP2
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NUP306-E-XL-TVP2
Category: Cylindrical Roller Bearings
1

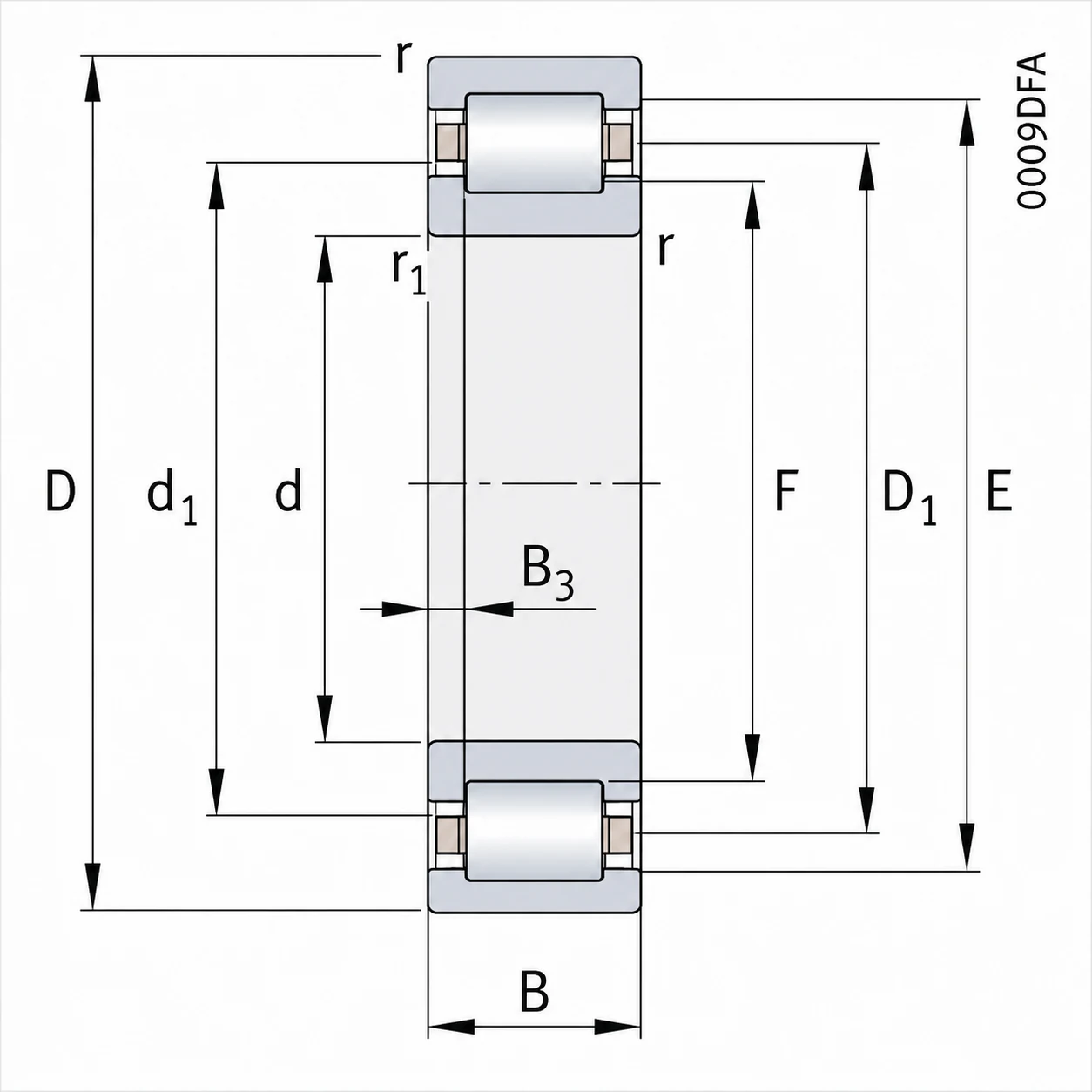

Weight and Dimensions
Bore (d): 30 mm
Outer (D): 72 mm
Width (B): 19 mm
Weight: 0.385 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 61000 N
Basic Static Load Rating, Radial (C0r): 48000 N
Fatigue Load Limit, Radial (Cur): 7700 N
Limiting Speed (nG): 12400 rpm
Reference Speed (nϑr): 8900 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The NUP306-E-XL-TVP2 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a solid PA66 cage. The E design provides increased load-carrying capacity, while X-life technology improves operating performance and service life. In addition, the lightweight TVP2 cage supports smooth and reliable operation.
The NUP306-E-XL-TVP2 is a locating bearing suitable for electric motors, industrial pumps, compressors, and compact drive systems. Its high radial load capacity and ability to accommodate axial loads in both directions provide stable shaft support, making it suitable for compact equipment and continuous operation.
