QJ218-XL-N2-TVP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: QJ218-XL-N2-TVP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 90 mm
Outer (D): 160 mm
Width (B): 30 mm
Weight: 2.35 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 189000 N
Basic Static Load Rating, Radial (C0r): 198000 N
Fatigue Load Limit, Radial (Cur): 12500 N
Limiting Speed (nG): 4950 rpm
Reference Speed (nϑr): 3750 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

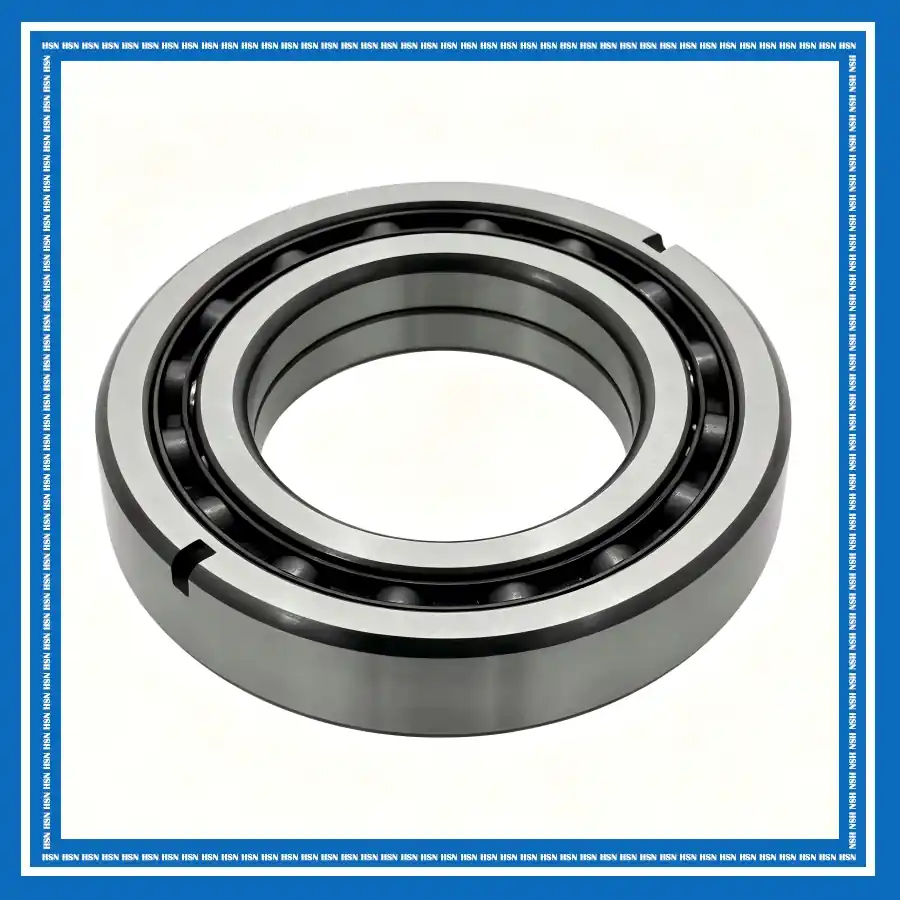

The QJ218-XL-N2-TVP FAG four-point contact ball bearing consists of a solid outer ring with two retaining slots, a split inner ring, balls, and a ball-guided solid cage made from glass-fiber reinforced polyamide PA66. The four-point contact design provides high axial load capacity in both directions. The X-life design improves load-carrying performance, while the N2 retaining slots provide secure outer-ring location and the lightweight TVP cage supports smooth operation.
The QJ218-XL-N2-TVP bearing is widely used in compact gearboxes, industrial reducers, conveying systems, and power transmission equipment. It is particularly suitable for applications requiring bidirectional axial load support, secure outer-ring location, compact installation, and smooth continuous operation.
