QJ306-XL-TVP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: QJ306-XL-TVP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 30 mm
Outer (D): 72 mm
Width (B): 19 mm
Weight: 0.379 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 61000 N
Basic Static Load Rating, Radial (C0r): 43000 N
Fatigue Load Limit, Radial (Cur): 2900 N
Limiting Speed (nG): 11900 rpm
Reference Speed (nϑr): 7600 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

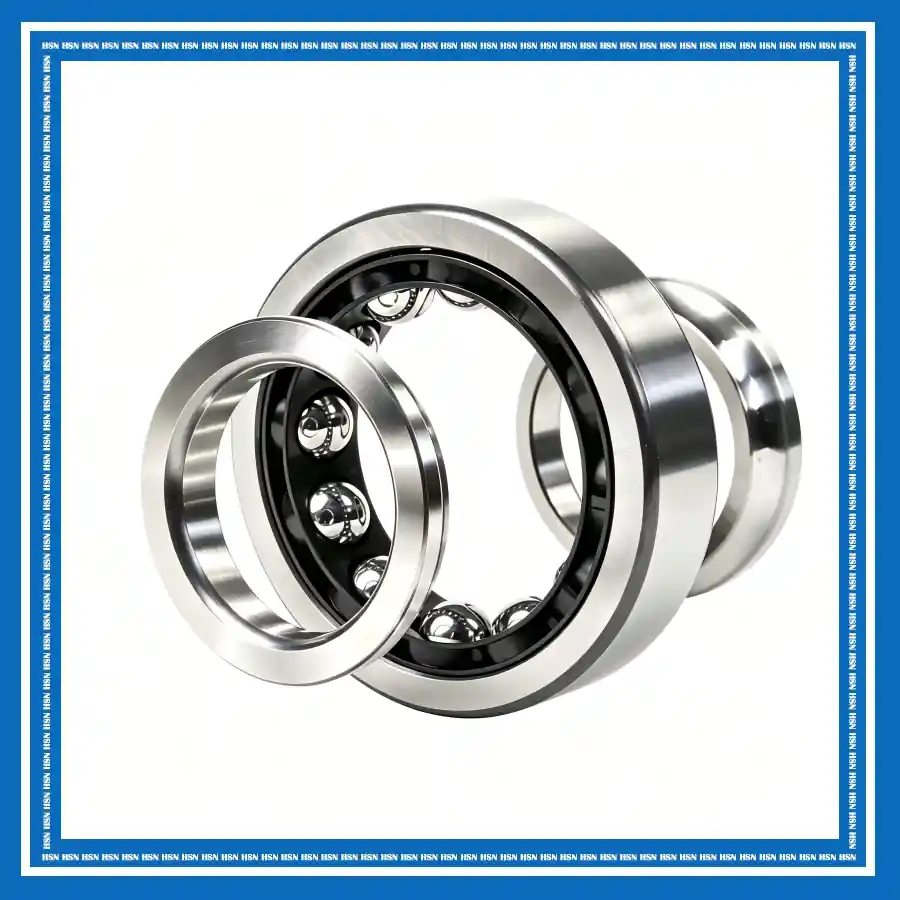

The QJ306-XL-TVP FAG four-point contact ball bearing consists of a solid outer ring, a split inner ring, balls, and a ball-guided solid cage made from glass-fiber reinforced polyamide PA66. The four-point contact design provides high axial load capacity in both directions while also supporting limited radial loads. The X-life design improves load-carrying performance and service life, while the lightweight TVP cage provides reliable ball guidance and smooth operation.
The QJ306-XL-TVP bearing is widely used in industrial pumps, compressors, fluid handling equipment, and process machinery. It is particularly suitable for applications requiring high bidirectional axial load capacity, compact bearing arrangements, smooth operation, and reliable performance during continuous service.
